How Automotive Lightweighting Changes Materials, Joints, and Risk

Automotive lightweighting is the controlled reduction of vehicle mass while preserving the safety, performance, manufacturing, cost, service, and recovery outcomes the vehicle still has to deliver. It is a system decision, not a contest to find the material with the lowest density.

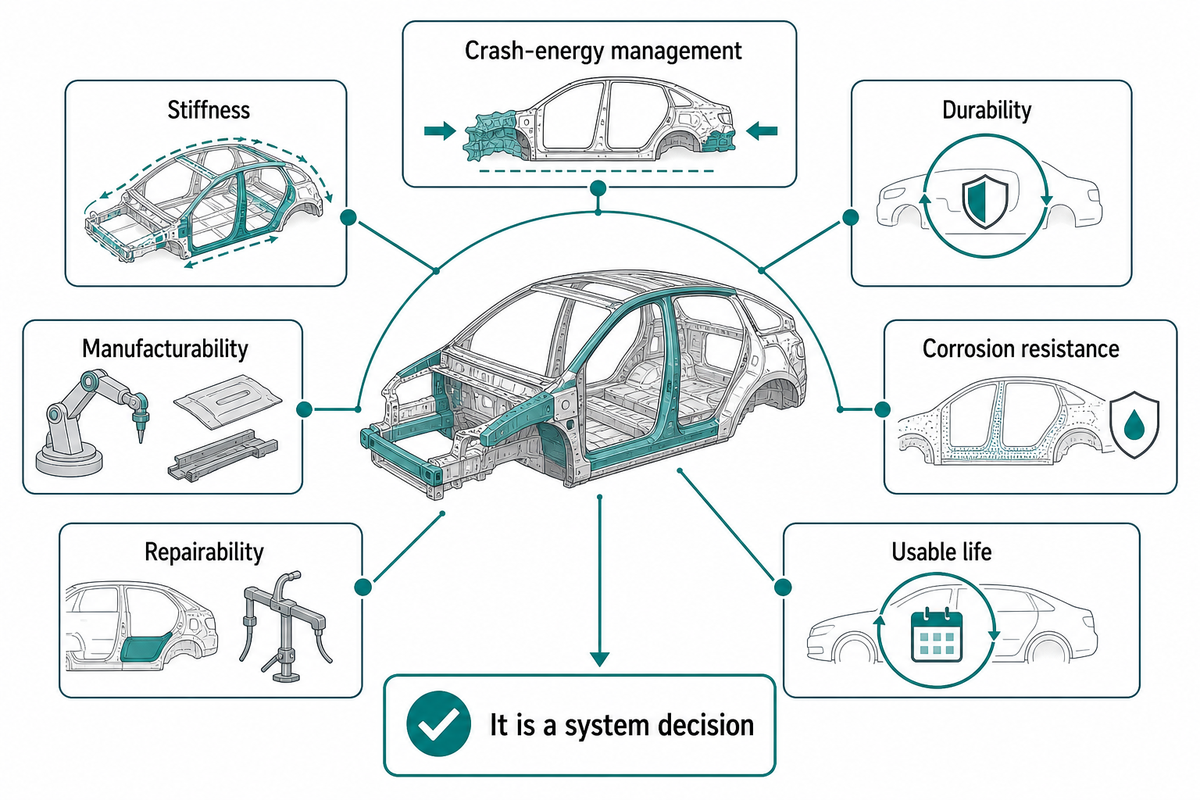

Automotive Lightweighting Is a System Decision, Not a Material Swap

Automotive lightweighting means reducing the mass of a car or truck without giving up the functions that mass helped provide. Those functions include stiffness, crash-energy management, durability, manufacturability, corrosion resistance, repairability, and usable life. That retained-function boundary is the first screen for every later tradeoff.

“A material choice becomes a lightweighting strategy only when the mass saving survives the joint and recovery plan.”

Decision rule used in this guide

What does automotive lightweighting mean?

In practical engineering terms, automotive lightweighting is controlled mass reduction at vehicle level. A lighter component qualifies only when its changed geometry, material, interfaces, and production route still satisfy the defined requirements of the automobile. The vehicle-level baseline keeps every proposal comparable.

The United States Department of Energy describes lightweight materials as one route to improving fuel efficiency, but its research portfolio covers materials science, manufacturing processes, multi-material assembly, and recyclability together. That wider boundary is the useful one because advanced materials move loads and factory constraints at the same time.

Start With the Mass Budget: Where Does One Kilogram Change the Vehicle?

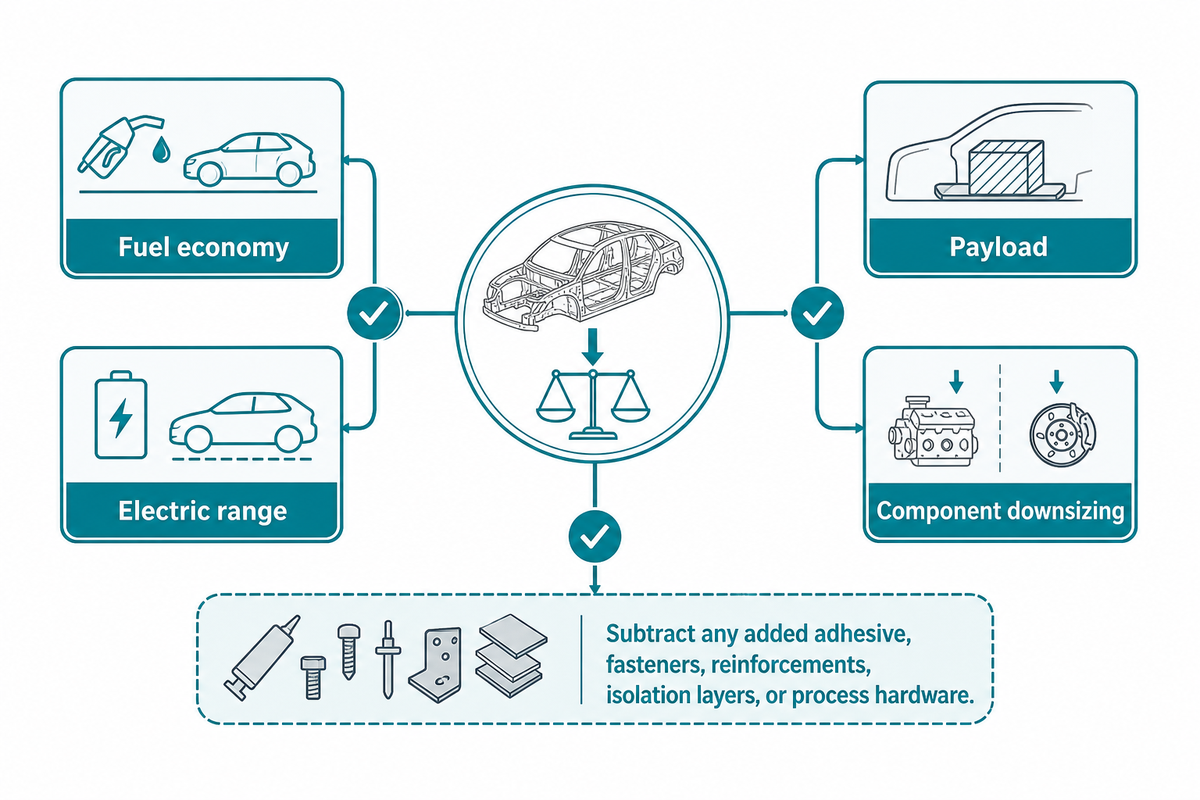

Name the desired outcome before trying to reduce weight. The same kilogram can improve fuel economy, preserve electric range, add payload, enable component downsizing, or create no measurable customer benefit, depending on where it is removed and how the vehicle is operated.

The United States Department of Energy states that a 10 percent vehicle weight reduction can deliver an estimated 6 to 8 percent improvement in fuel economy. DOE presents this as a general engineering estimate, not a current fleet measurement or a multiplier for a door, battery tray, or isolated bracket.

Electrification does not eliminate this discipline. Removing mass may reduce propulsion energy, yet battery size is constrained by peak power, charging strategy, thermal performance, degradation allowance, packaging, and target range, so a lighter part does not automatically authorize a smaller battery.

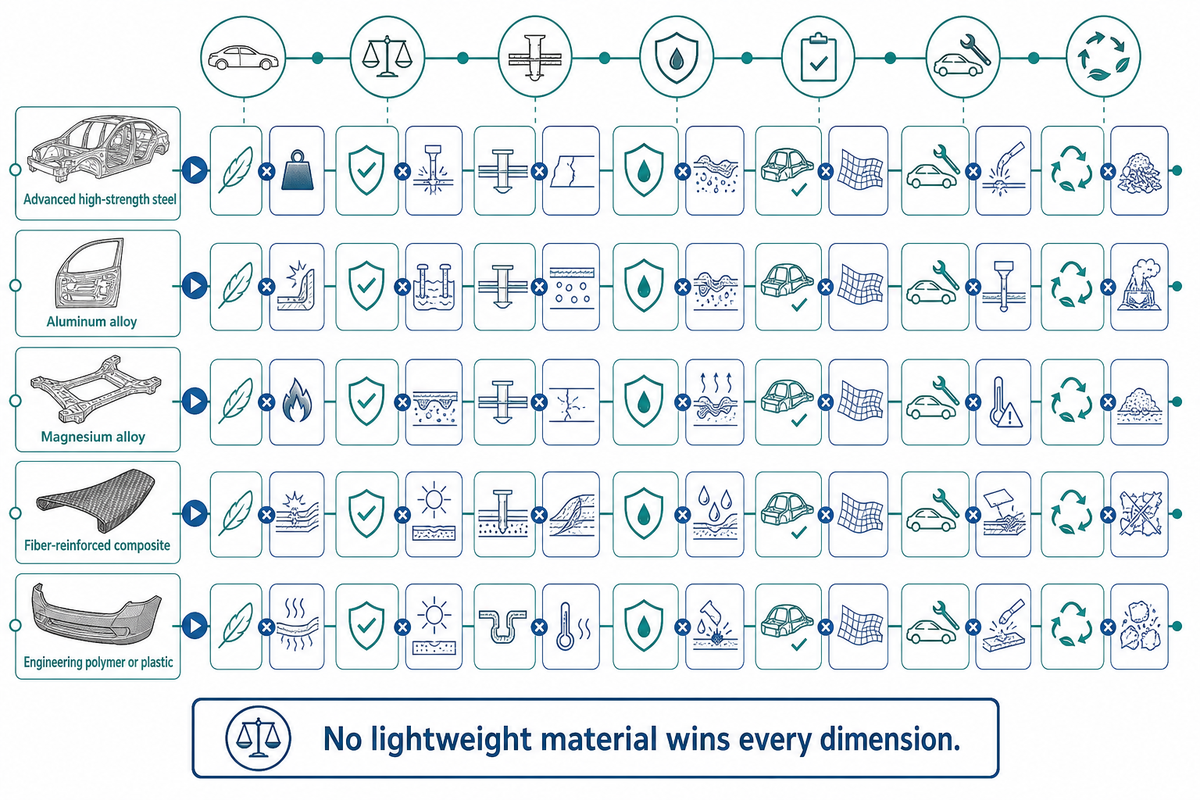

What Do Steel, Aluminum, Magnesium, and Composites Really Trade?

No lightweight material wins every dimension. Density affects mass potential, but stiffness, geometry, crash loading, formability, corrosion, joining, cost, repair, and recovery decide whether the potential survives in a real vehicle component. The mass budget above names the outcome; this comparison tests whether a material system can deliver it.

A 2025 case study published in Machines illustrates why a density ranking is not enough: within that study’s defined design and manufacturing assumptions, a low-alloy steel concept produced the preferred balance rather than an automatic aluminum win. The finding is case-specific, but the reasoning is general—compare functionally equivalent systems.

How should you choose an automotive lightweighting strategy?

Start with the vehicle outcome and load case, then compare at least two functionally equivalent concepts. For each concept, record geometry, gauge, material grade, forming route, stack order, access, joint family, corrosion isolation, inspection, repair, and recovery. Keep the same functional boundary for every option.

Use sensitivity ranges where data are not yet fixed, and assign an owner to every open item. The best strategy is the one whose mass benefit survives the identified constraints with evidence appropriate to the programme stage, not the one with the most impressive density number.

How Does Lightweighting Change the Joining Plan?

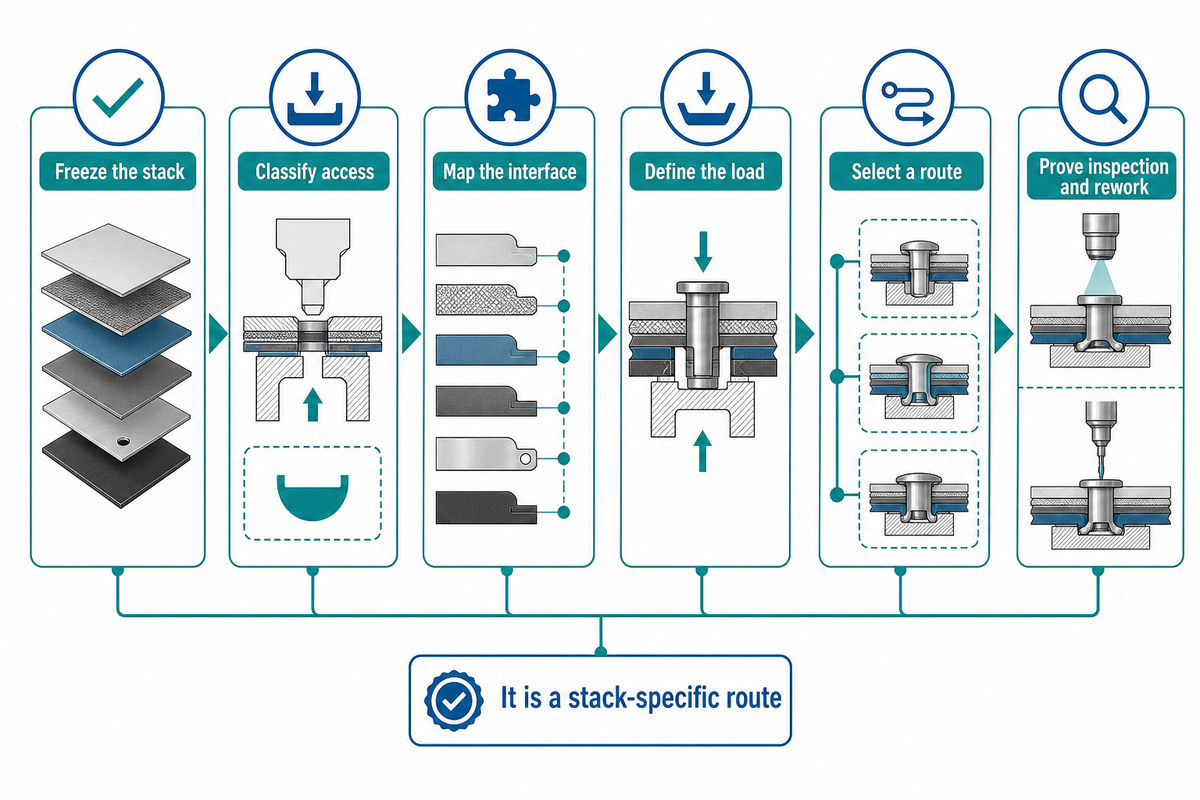

A material stack is not ready for release until its stack order, access, coatings, adhesive layer, loads, thermal exposure, inspection, rework, and repair route have a feasible joining concept. Physical access can disqualify a process before material compatibility is even discussed. Once the material options narrow, access and interface conditions decide which concepts remain feasible.

1. Freeze the stack — specify every sheet, casting, coating, adhesive, sealant, and local reinforcement in order.
2. Classify access — identify joints with two-sided tool access, one-sided access, obstructed die support, or installation after a cavity closes.
3. Map the interface — check galvanic couples, coating damage, heat exposure, surface contamination, adhesive gaps, and moisture paths.
4. Define the load — separate static, fatigue, peel, crash, vibration, and sealing duties rather than using one pull value.
5. Select a route — only now compare welding, bonding, clinching, riveting, threaded fastening, or a hybrid joint.
6. Prove inspection and rework — state how the joint is checked in cycle and what happens when it is outside the window.

This article isn’t a generic process catalogue. Readers with that separate scope will be able to compare metal joining methods, while cold-forming options and clinching machines are stand-alone equipment and feasibility studies.

For an equipment handoff, Simitch’s public page groups its self-piercing riveting machines into pneumatic-hydraulic, computer-numerical-control servo-driven, and automated flexible systems. Those families and published specifications are Simitch first-party claims; independent joint validation still has to be performed on the customer’s actual materials.

Use the Weight-Join-Recovery Triangle Before Concept Approval

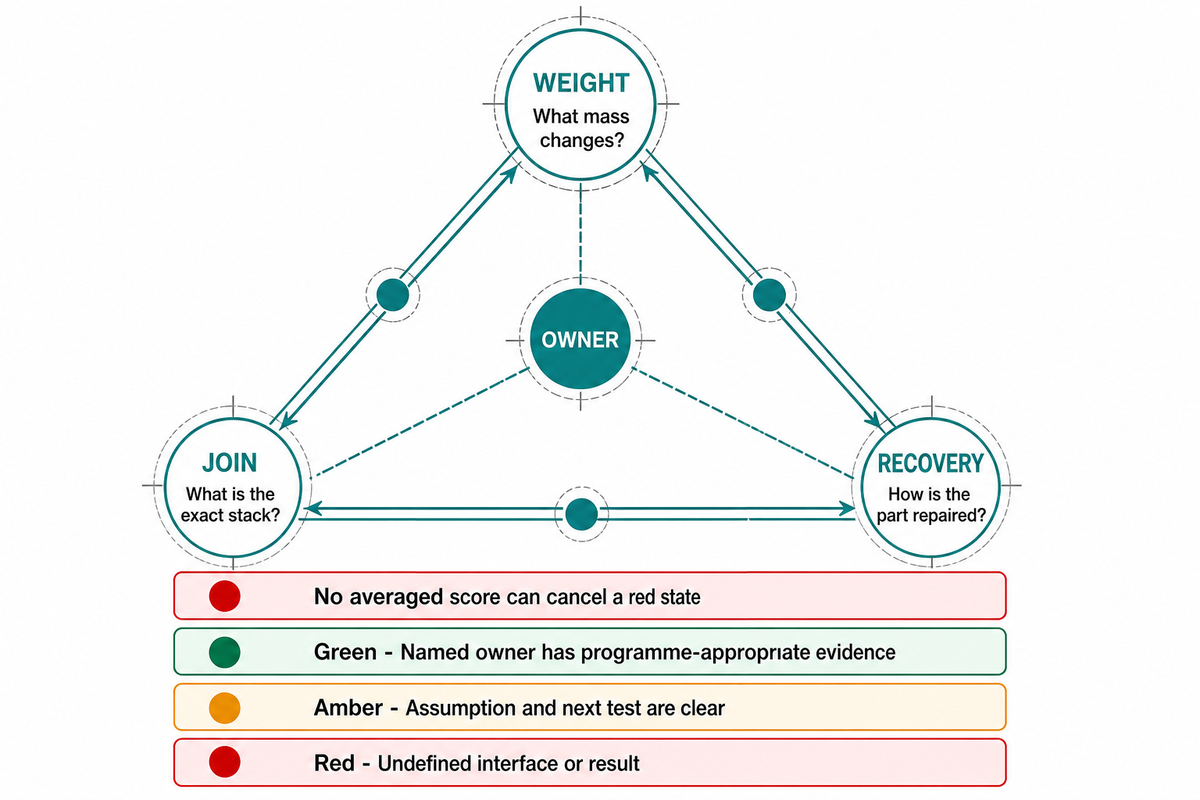

The Weight-Join-Recovery Triangle is an original Simitch project worksheet for aligning engineering, quality, finance, and procurement. It is not a published standard or independently validated scoring model, and it deliberately avoids universal weights. It gives each unresolved item a visible owner.

3-Axis Weight-Join-Recovery Triangle

Assign each question a green, amber, or red evidence state. Green means a named owner has programme-appropriate evidence; amber means the assumption and next test are clear; red means the concept relies on an undefined interface or result.

The triangle prevents one team from declaring success by moving an unsolved problem to another team. It also keeps a recoverability weakness visible across the life-cycle boundary when a consolidated lightweight component looks attractive on part count and assembly time.

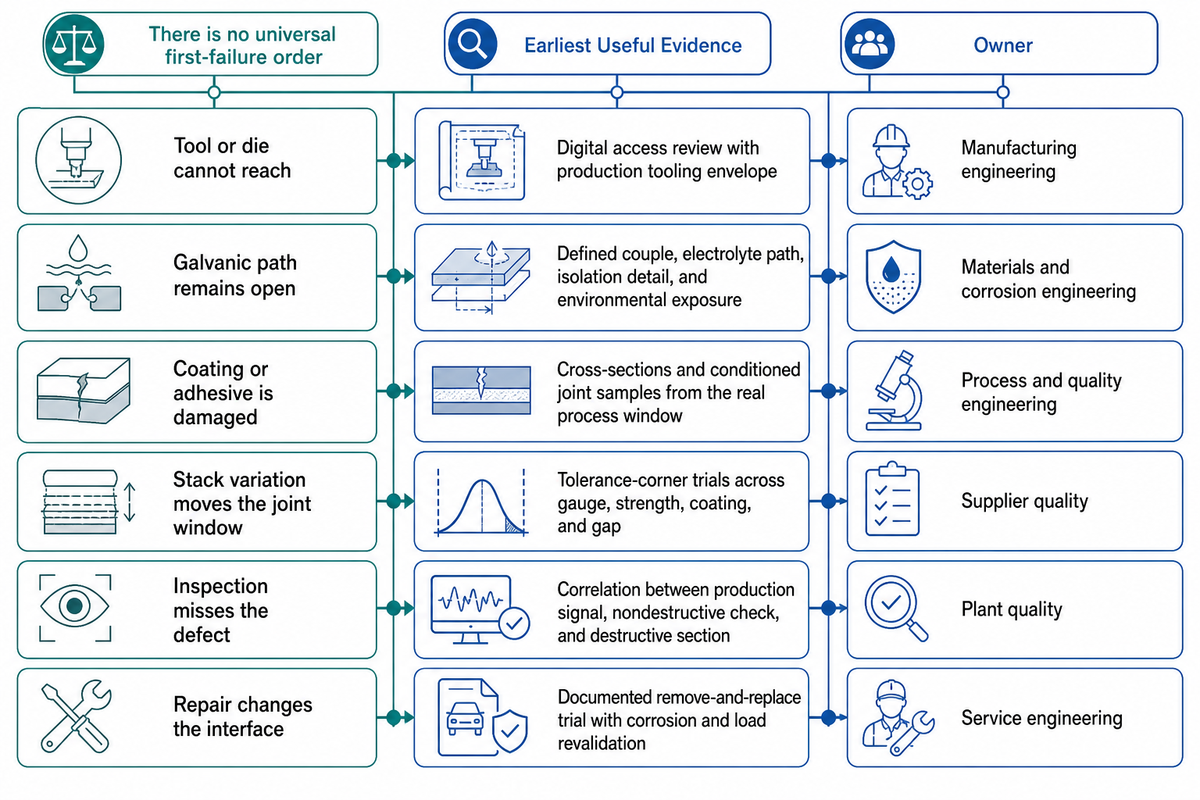

What Breaks First in Mixed-Material Joints?

There is no universal first-failure order for mixed-material joints. Access, galvanic isolation, coating damage, adhesive cure, stack variation, die-side support, inspection, and repair can fail independently, and the first observed failure changes with the stack, process, environment, and load. The Triangle identifies the owner; this section defines the evidence each owner needs.

ASTM G82 explains that greater galvanic-series separation frequently indicates greater corrosion severity, but not always. It does not supply a universal automotive distance threshold, so a material pair cannot be cleared from a ranking alone.

A good coupon still doesn’t clear the system because vehicle components see load combinations, moisture paths, temperature cycles, production variation, and repair events that a single tensile-shear test can’t imitate. The deeper qualification inputs belong in the guide to sheet metal fastening inputs.

Build the One-Kilogram Decision Dossier

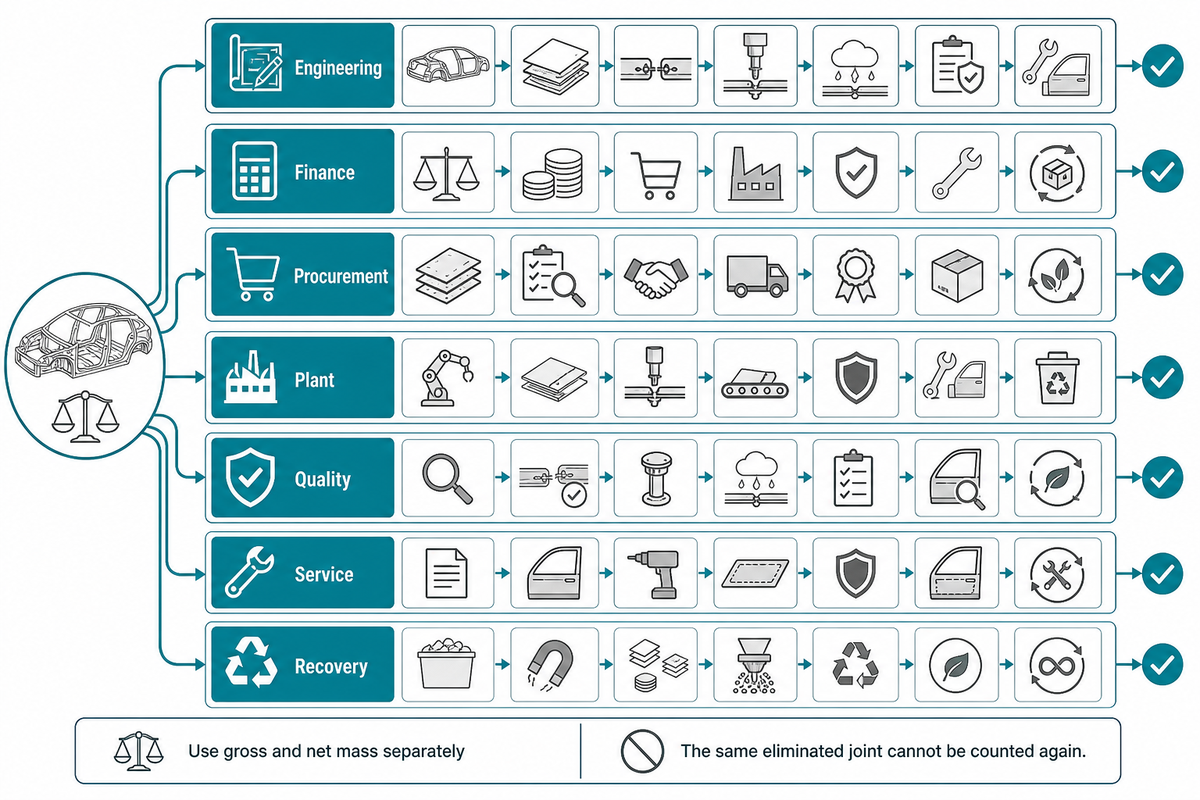

The One-Kilogram Decision Dossier is an original project worksheet that carries the same lightweighting claim across engineering, finance, procurement, plant, quality, service, and recovery reviews. It is a normalization record, not an industry standard. The failure-mode screen above supplies the red and amber items that enter the dossier.

The illustrative concept saves 1.3 kilograms gross, but it is not ready for approval because two joints lack a route, rework is undefined, and service repair has no boundary. Those red states are more decision-relevant than a precise material-price comparison made too early.

The dossier also guards against double counting. If part consolidation eliminates joints and permits secondary system savings, those savings can be noted, but the same eliminated joint cannot be counted again as a separate recovery or cycle benefit without a known equation.

Validate the Concept Before Production Release

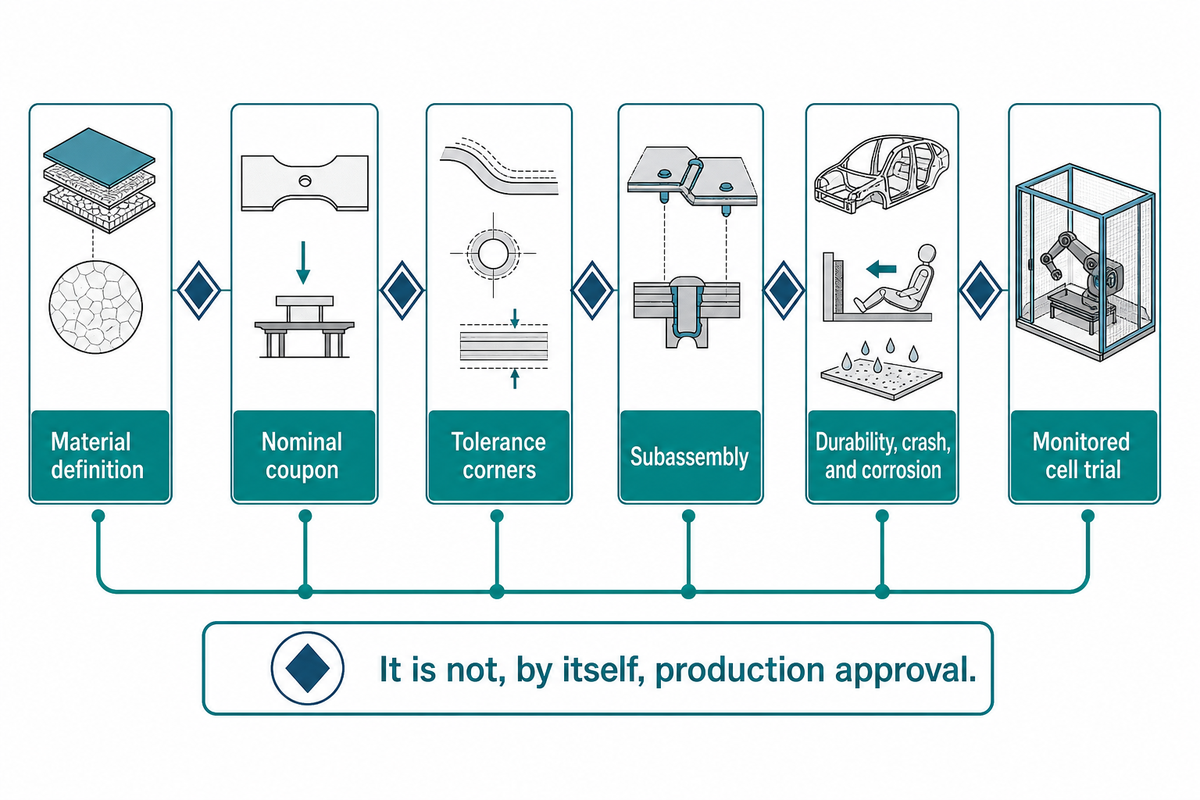

Advance a lightweight joint from material definition to coupon, tolerance-window, subassembly, durability and corrosion, then monitored cell trials. Each stage needs a named pass record before equipment or production release moves forward. The dossier turns its open items into the pass records used here.

1. Material definition — freeze grades, thicknesses, coatings, surface condition, stack order, and joining consumables.
2. Nominal coupon — establish an initial rivet, die, force, weld, adhesive, or hybrid-joint window on representative material.
3. Tolerance corners — test the combinations of gauge, strength, gap, coating, adhesive, temperature, and tool wear expected in production.
4. Subassembly — prove access, distortion, load path, datum effects, and inspection on representative geometry.
5. Durability, crash, and corrosion — apply programme-specific loads and environments, including repaired conditions where required.
6. Monitored cell trial — correlate process signals with joint quality, cycle, feeding, maintenance, traceability, and rework before release.

That sequence connects the material decision to body-in-white manufacturing stages without turning this article into a line-layout guide. The resulting documentation can establish a bounded focus for a discussion of riveting equipment and integration.

Simitch’s public SPR page asks customers to provide drawings and sample materials so a starting rivet, die, and force window can be developed. That is an equipment-trial input, not proof that an untested stack meets vehicle durability, crash, corrosion, or production requirements.

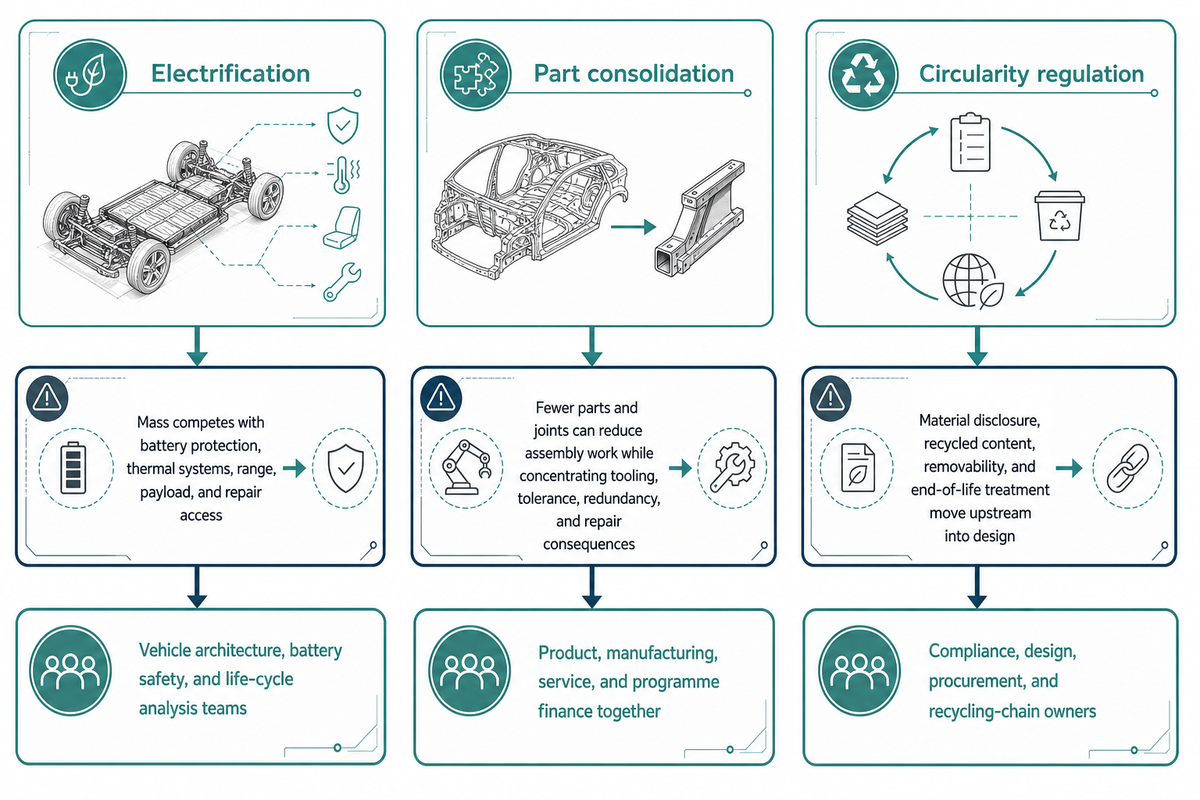

What Changes Next: Electrification, Part Consolidation, and Circularity

Electrification changes where mass matters; part consolidation changes where manufacturing risk sits; circularity rules change who owns material and recovery evidence. None of those drivers eliminates the need for a stack-specific joining and validation route. The same release sequence still applies as these drivers shift risk.

An Oak Ridge National Laboratory-hosted ULSAB case page reports 96 major parts and 158 total parts for that project, compared with more than 200 in the conventional comparison. The same source notes less redundancy and a need for closer tolerances, showing why fewer parts and joints can move risk rather than simply delete it.

Life-cycle comparisons also need a declared boundary. The Department of Energy’s GREET research programme spans material and vehicle production, batteries, operation, energy pathways, facilities, and end-of-life, which is why a lighter use phase cannot be assumed to settle the total-emissions result.

The measured United States search demand for the focus term is low and stable across both the recent window and a 60-month history, so this article does not manufacture a growth story. The decision pressure comes from vehicle architecture and regulation, not from keyword momentum.

Frequently Asked Questions

What is the simplest definition of automotive lightweighting?

Which materials are used to make cars lighter?

How does advanced thermoforming contribute to automotive lightweighting?

Does a lighter vehicle always use less energy?

Why must joining be evaluated before a lightweight material is released?

Can self-piercing riveting support a mixed-material vehicle concept?

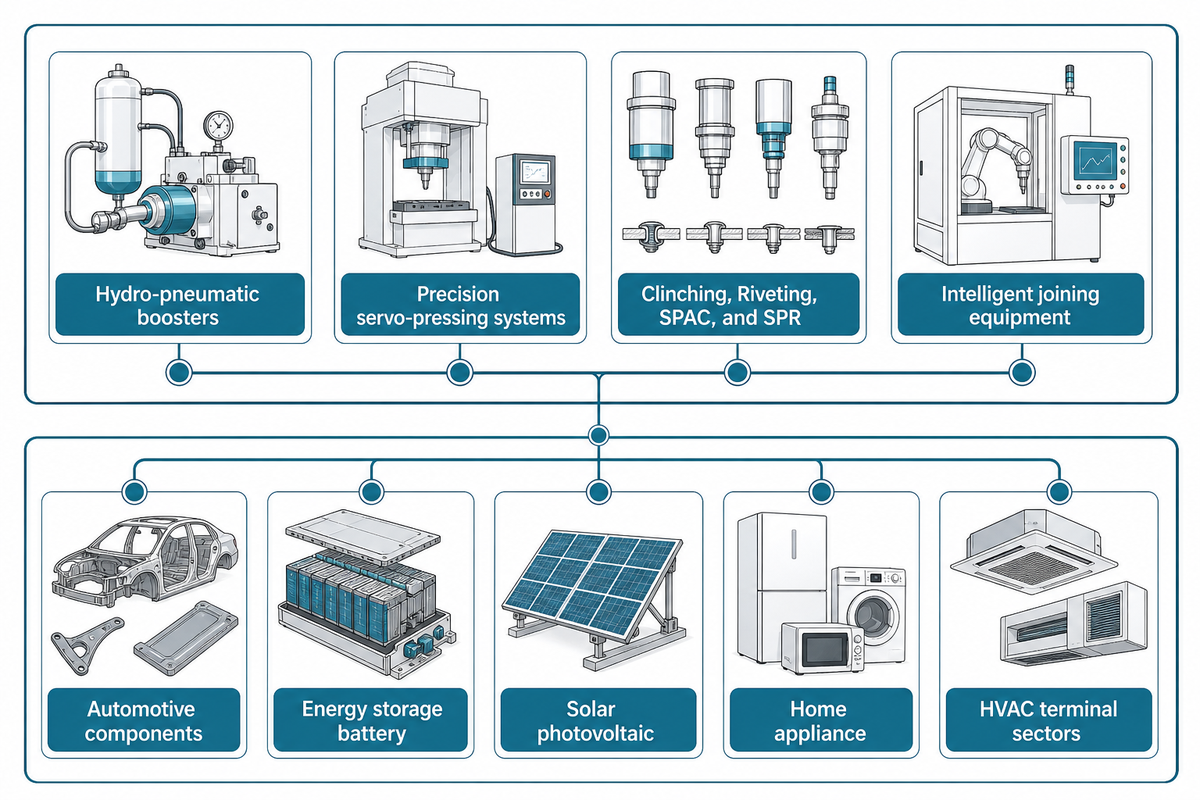

About Simitch

For independent sector context, the NIST Center for Automotive Lightweighting is cited only for the industry problem, not as validation of Simitch company claims.

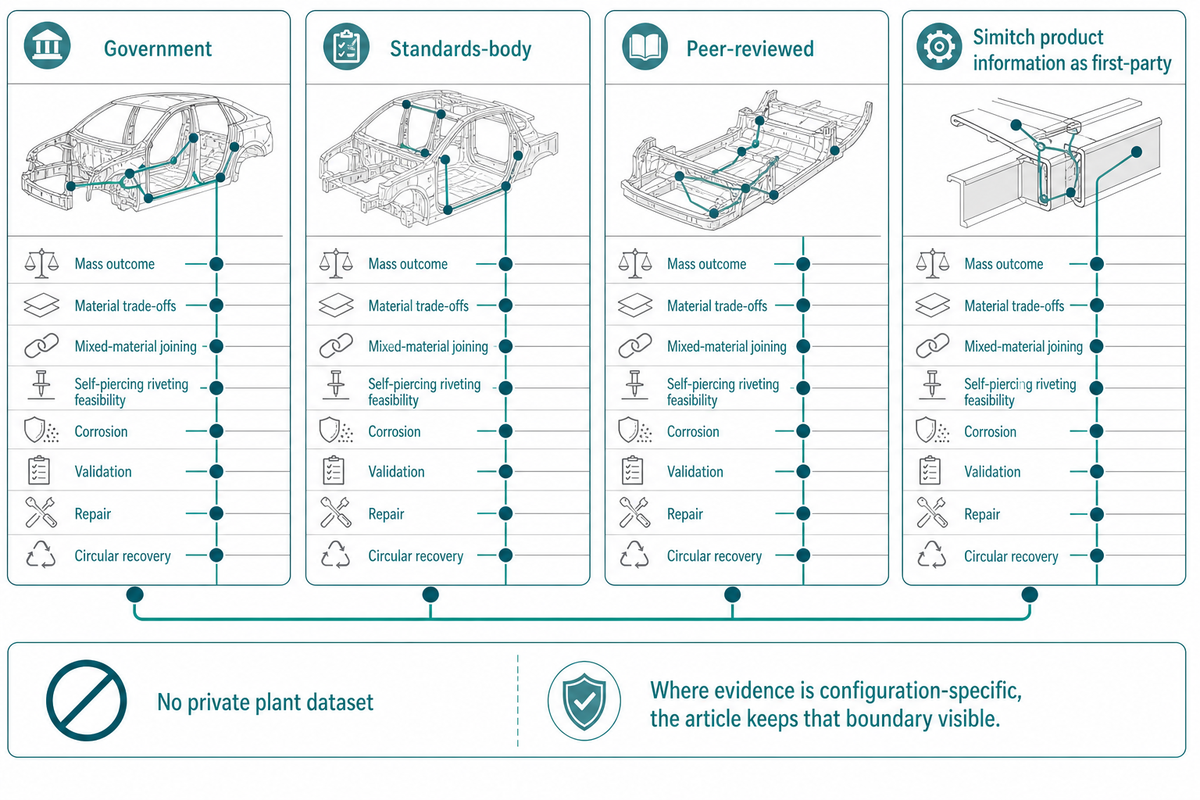

About This Article

This guide uses current government, standards-body, research, and peer-reviewed sources for load-bearing statements, and labels Simitch product information as first-party. No private plant dataset, customer result, price, minimum order, lead time, certification, capacity, or universal failure rate was supplied or invented.

Where evidence is configuration-specific, the article keeps that boundary visible. Source dates, European regulatory scope, first-party ownership, hypothetical values, and the distinction between a sample trial and vehicle-level validation remain explicit.
