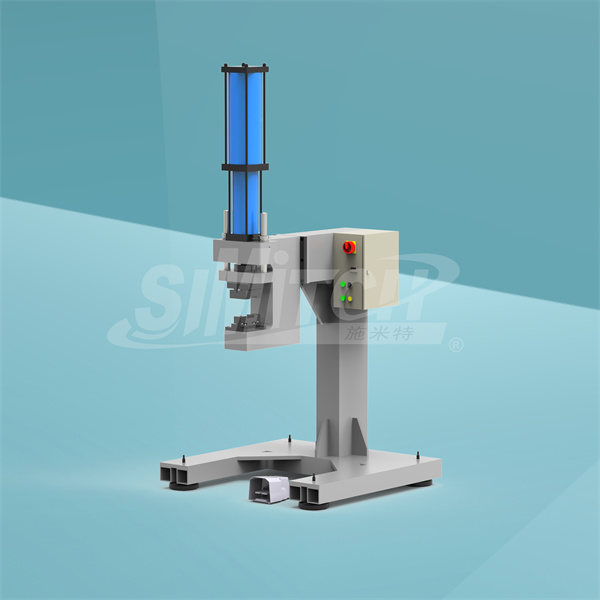

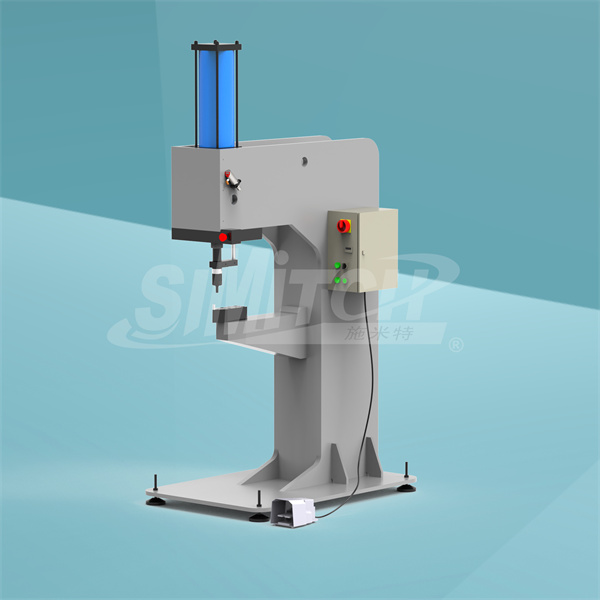

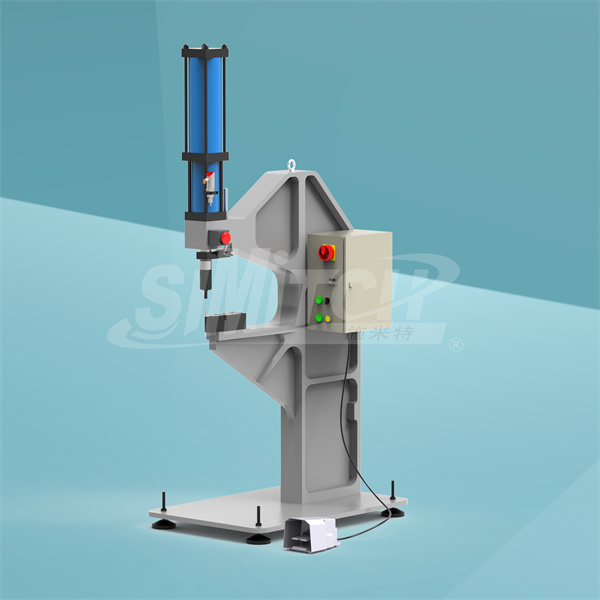

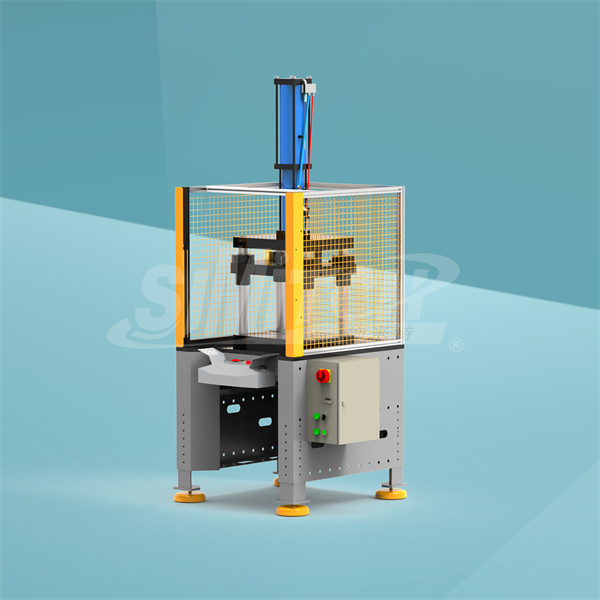

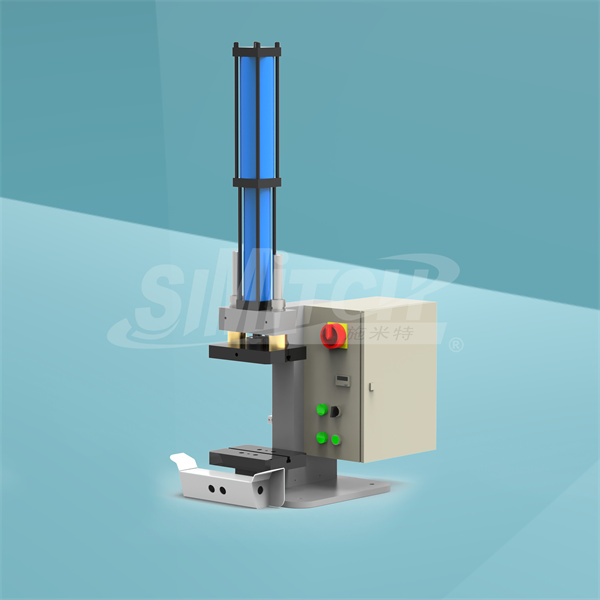

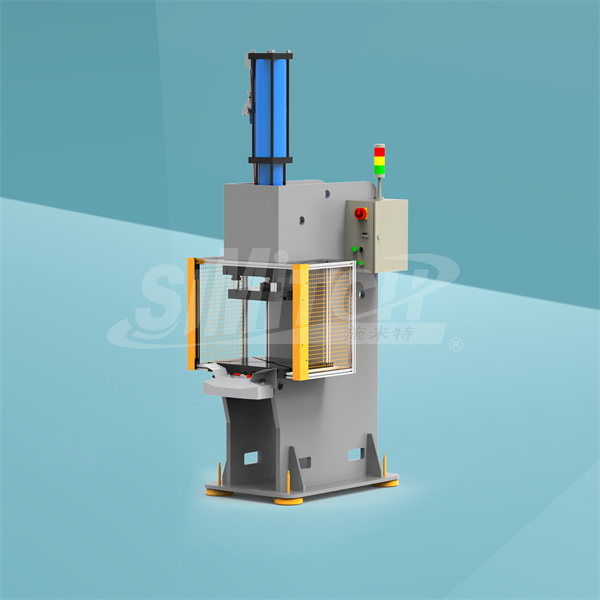

overview C-type desktop stamping machine CEB series CEJ Universal Stamping Equipment CEU Universal Stamping Equipment CEC universal stamping equipment Floor standing stamping machine PC series Four column stamping machine MA series Double column stamping machine MB series TCEU air duct clinching machine X-shaped pliers C-type pliers Portable Clamp type stamping machine hanging hand clamp series Clamp type stamping machine hanging hand clamp series B
Control system
overview
Application of Connection Technology
Clinching Rivetless connection technology Rivet connection technology SPAC Self piercing riveting connection technology --SPR Rivet connection technology PR Hot melt connection technology FDS
About us
Production environment
Document
Case
Honor
News
Contact us
Rivetless Clinching Machine

Rivetless Clinching Machine for Sheet Metal Joining

Strong, Clean, Cost-Saving Metal Joining without Rivets or Welding

High Strength、No Rivets Needed、Suitable for Steel & Aluminum

Technical Data
Contact us through the following methods
Advantages of rivetless connection technology
Compared with the traditional connection methods,clinching technology has obviously advantage:Low energy consumption and low costs,easy maintenance,eco-friendly.Long life time and precious technology,high connection strength,connection flexibility and process controllability.

Low energy consumption and low costs,

Rivetless connections do not require the consumption of raw materials and auxiliary materials, and their cost is only about 50% of that of spot welding, making them a preferred solution for reducing costs and improving economic efficiency.

Durability and Maintenance

Rivetless connection machines are inexpensive, durable, simple in structure, and easy to maintain. In contrast, traditional equipment is prone to aging and has higher maintenance costs.

Aesthetics and environmental protection

Rivetless connections are aesthetically pleasing and require no additional surface treatment. They also produce no noise or dust pollution during operation, making them more environmentally friendly.

Mold life and process

Rivetless connection molds have a long service life, averaging 100,000 to 300,000 uses. The connection process is simple, requiring no pre- or post-processing (such as punching or surface treatment), thus improving work efficiency.

Material compatibility

Rivetless connections can solve the problem that traditional processes cannot connect metals such as aluminum, magnesium, and titanium, giving them a unique advantage when connecting different materials or sandwich panels.

Automation and Connection Quality

Rivetless connections offer a high degree of automation, allowing for single-point or multi-point simultaneous connections, making them the preferred connection method for mass production. There is no stress concentration at the connection points, resulting in higher fatigue resistance than spot welding. Connection strength can be tested non-destructively, and the entire process can be automatically monitored.

Connection strength and load-bearing capacity

Although rivetless connections have slightly lower strength than self-piercing riveting, their strength is sufficient for most applications. Furthermore, rivetless connections are more suitable for joining thin plates.

Connectivity flexibility

Rivetless connection technology allows for the connection of plates of different thicknesses, materials, and even shapes, and this flexibility enables it to meet a variety of complex design requirements.

Process controllability

Rivetless connection technology allows for precise control over the position and shape of connection points, thereby ensuring product consistency and reliability.

Multi functional and diverse choices
Household appliances industry
Washing Machine、Tumble dryer、Refrigerator、Oven/stove、Air conditioning ,dishwasher
Construction Engineering
Garage door、Elevator、Lighting、Exterior door/ interior door、Busway
Ventilation duct industry
Air duct、Air filter、Boiler、Radiator、Pocket filter
Automotive industry
Roof frame、Airbag、Battery box、Body area、Top compartment、Switch contacts
Currently serving 3000 clients in industries such as automotive, home appliances, refrigeration, elevators, sheet metal, electrical, furniture and hardware.
Process Competence
Dot connection
Using a simple round punch,on the SIMITCH pneumatic hydraulic clinching machine,through a stamping process,the connected plate can be squeezed into the corresponding die,so that it "flows" and deforms in the die,then producing a connection point without edges or burrs.
SKB f lat point connect ion
For some plates, the raised dots produced by SIMITCH dot connection may be a hindrance. Therefore, after processing the SKB dots, the raised part can be pressed back to form a flat point (+0.1mm) using a flat point mold.
Doub le point connect ion
This new connection method is a two in one solution.Using one set mold (punch and die) to make two connections in one press stroke. This aims to increase production efficiency and prevent the connection point from turning. Compared with a single round point, its shear strength is up to twice and the tensile strength is up to 1.5 times.
Rivet ing dot point connect ion
This connection is accomplished with a simple cylindrical rivet in a joining process using the drawing/pressing method. Similar to the circularjoint, the materials to be joined are not cut but guided through a die form, resulting in a very durablejoint - even in the case of thin materials.
Micro point connect ion
Micro circular connectors with a tip diameter of 1.5 to 2 mm are the solution for miniaturization of components. They are ideal for metal sheets with a thickness of 0.1-0.5 mm and narrow flanges, where conductivity between the connecting layers is outstanding.
Rectangu lar point connect ion ST
Rectangular point connection combines the process of cutting and deformation, and is mainly suitable for the connection of hard materials and stainless steel plates.
SKB Dot connect ion
This clinching uses a special SKB die, which consists of a fixed part and a moving part with 4-6 movable die pieces. The fixed part ensures accurate centering to form the connection point, the sheet material and the punch are centered relative to this fixed part, and the movable parts between the fixed parts guide and constrain the "flow" of the sheet material atthe connection point.
Three-flap mold connect ion
It has wider adaptability and better compatibility to sheet materials.
