Suzhou Simitch Machinery Co., Ltd - AT series split -type working cylinder

Model	Output stamping pressure at 400 bar input oil pressure	Fast forward stroke force at 6 bar output	Return stroke force at 6 bar output	V (Driven by MPS, high-pressure oil volume required per 1mm drive cc)	V1 (Oil consumption per 50mm total stroke cc)	V2 (Boost stroke, oil volume loss CC per 100 length of oil pipe)	Remarks (Oil pipe configuration)
	KN	Kg	Kg	cc
AT01 Series	13	95	105	0.31	0.55	0.4	3/8 inch two-layer steel wire high-pressure oil pipe
AT02 Series	21	150	170	0.49	0.7	0.7	3/8 inch two-layer steel wire high-pressure oil pipe
AS04 Series	4200	240	260	1.02	1.65	0.7	1/2 inch four-layer steel wire high-pressure oil pipe
AT08 Series	81	350	370	1.95	3.5	0.9	1/2 inch four-layer steel wire high-pressure oil pipe
AT15 Series	158	500	700	3.85	5	2	1/2 inch four-layer steel wire high-pressure oil pipe
AT20 Series	200	580	780	5.67	1000	2	3/4 inch four-layer steel wire high-pressure oil pipe
AT30 Series	320	730	1000	7.85	15.5	2	3/4 inch four-layer steel wire high-pressure oil pipe
AT50 Series	498	1150	1700	12.27	18.5	3.1	1 inch four-layer steel wire high-pressure oil pipe
AT100 Series	1030	2355	3780	25.45	36.5	3.1	1 inch four-layer steel wire high-pressure oil pipe

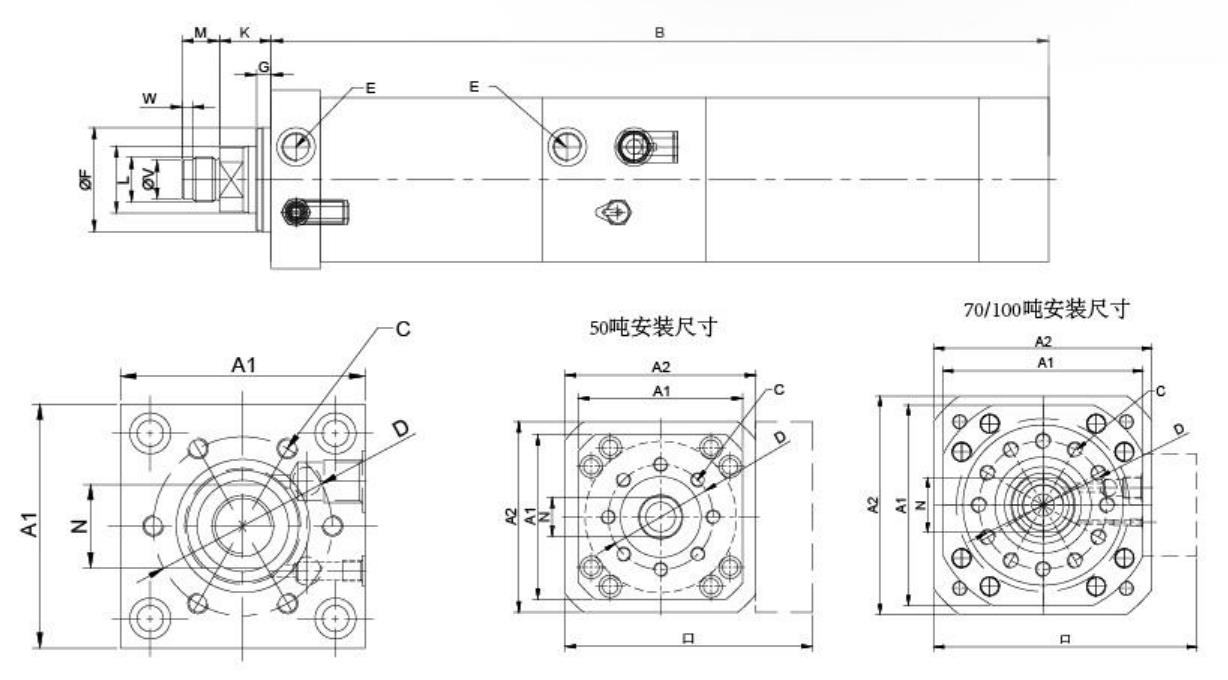

WeChat Work Screenshot_20260212164552.jpg
