Powerpackage

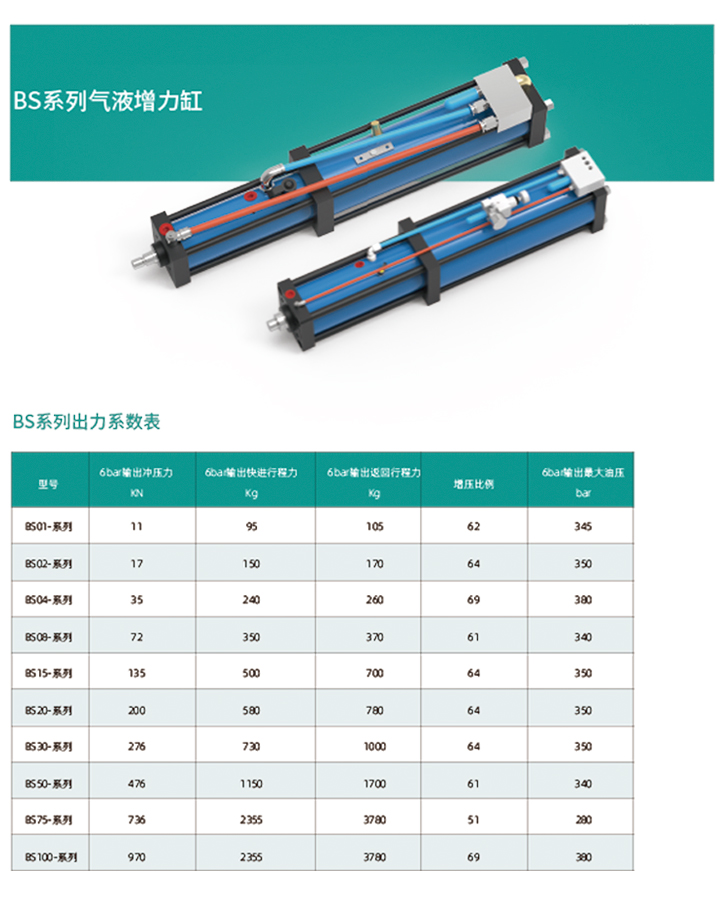

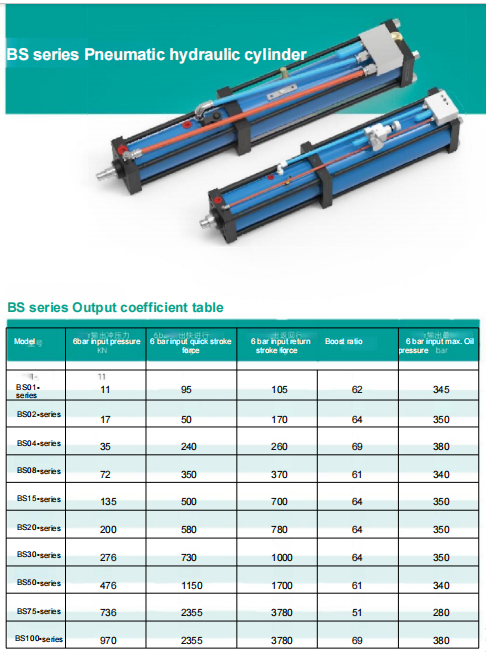

BS series pneumatic hydraulic cylinder
Product Introduction
The pneumatic hydraulic cylinder is a complete driving system, and its different structural forms and specially designed accessories make it suitable for different situations.

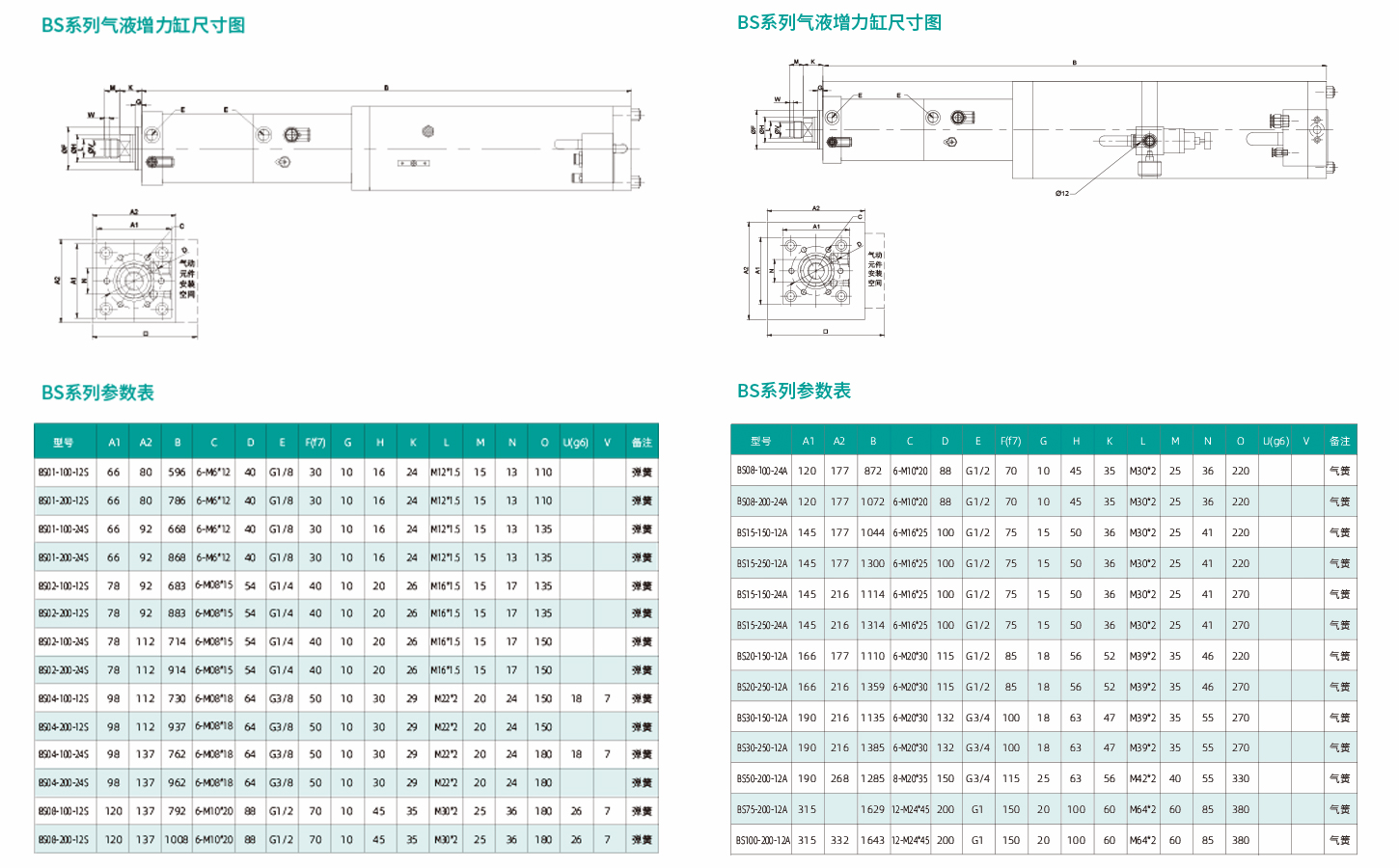

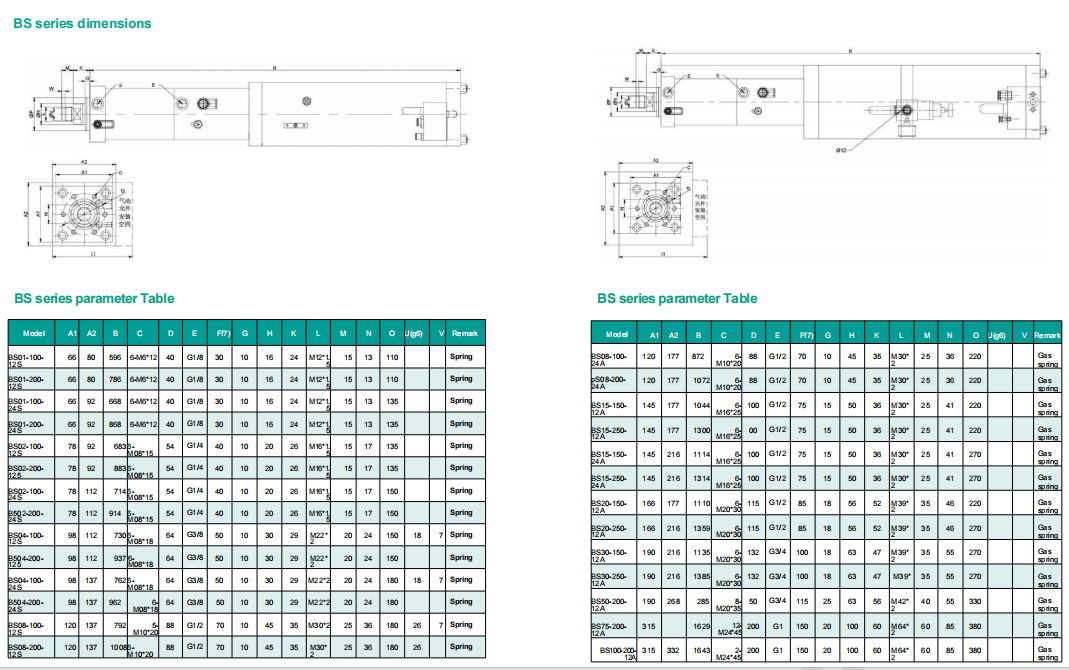

Technical parameter
SIMITCH PNEUMATIC HYDRAULIC CYLINDER Download
