Press-fit tooling carries the insertion load, locates the parts, and guides their movement. Determine the contact face, support, alignment and acceptance checks prior to purchase of the press. A wrong load path can’t be corrected with a larger actuator.

Quick Specs: define the tooling package

  • Upper tooling: punch, driver or sleeve matched to the loaded surface.
  • Lower tooling: locating nest and load-bearing support with a clear release path.
  • Guidance: rigid location, a guided pilot or specified compliance.
  • Acceptance: approved setup, monitored stroke and finished-joint checks.

Press-fit tooling is the contact and support assembly between a press and its workpiece. Adjust its load path to the fitted component and verify alignment and the final joint with representative parts.

Key takeaways

  • Force and distance monitoring is available on manual presses; servo motion control is a separate requirement.
  • A locating feature and a load-bearing support can have different jobs.
  • Lateral float, angular correction and stiffness require separate specifications.
  • Use known-good parts and known defects to test acceptance windows.

Updated October 2026. This guide covers industrial press-fitting of bearings, bushings, pins and connectors.

Press-fit tooling: follow the assembly load path

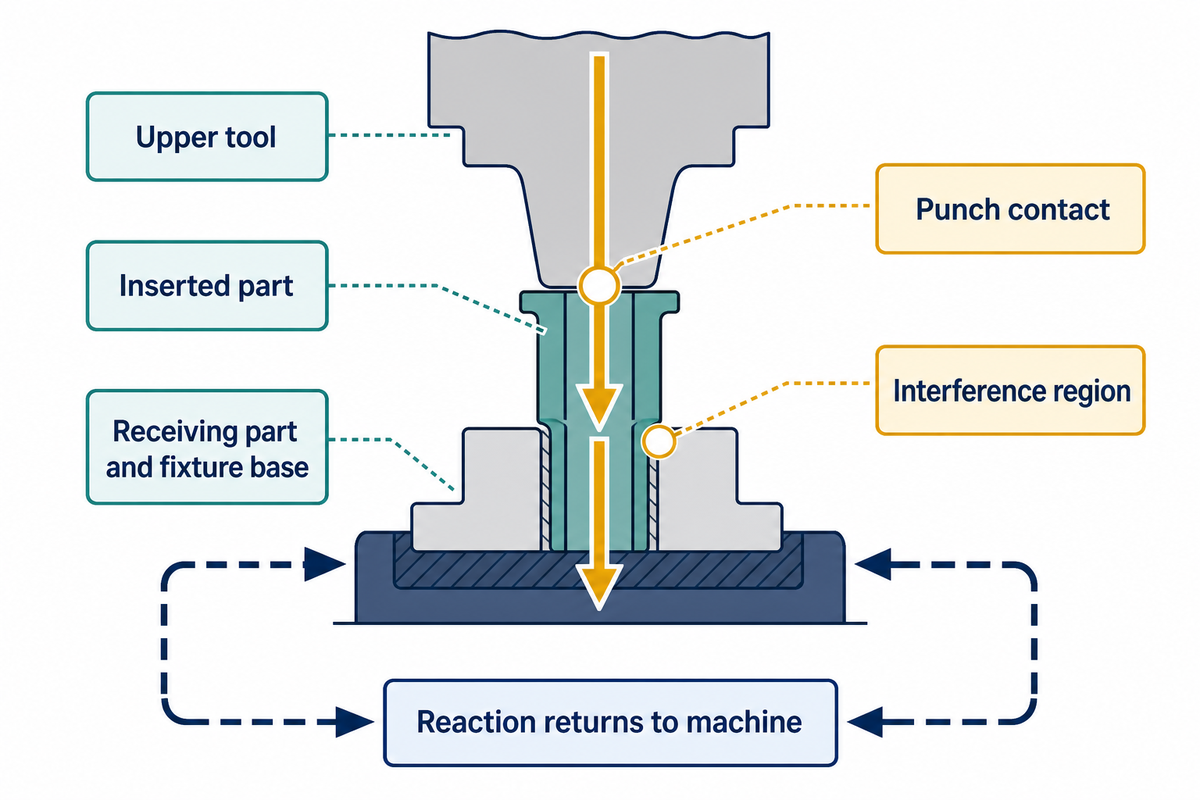

Press-fit load travels through the upper tool and inserted part; support returns the reaction to the machine.

Follow the pressing force through the upper tool, inserted part, and receiving part and fixture base. Each contact must carry its load without damaging adjacent features. The same feature can do both jobs (locating the part and supporting the load), but the drawing should make that decision explicit.

Start with a cross-section through the two parts in their final position. Mark where the punch touches, where interference occurs and where the reaction returns to the machine. The press provides the motion and force; tooling determines how they reach the joint. This distinction prevents a machine quotation from hiding an unfinished fixture design. In metalworking assembly, friction at the fit also makes surface condition a consideration for the trial.

Nine drawing decisions before a tooling order
Decision Put on the drawing or setup sheet Check at the trial
Punch contact Permitted face, ring or shoulder Witness marks remain inside the intended land
Protected features Seals, coatings, grooves and electrical contacts No tool contact or damage
Receiving support Load-bearing region and support profile Part stays seated under load
Location Datum surfaces and orientation Repeated loading returns to the same datum
Alignment Axis-setting or compensating mechanism Entry remains controlled through the stroke
Travel Approach, insertion depth and clearance in mm No pilot bottoming or tool collision
Force Trial envelope in N or kN and sensor range Measurement resolves the working process
Release Stripper, ejector and removal direction Withdrawal leaves the assembly seated
Acceptance Finished dimensions and functional requirements Independent part results match the release criteria

NSK’s bearing mounting advice defines the load path as applying the mounting force to the ring with interference. If both rings are tight, the mounting arrangement may need to load both rings simultaneously. Mounting force must not be transmitted by means of a sleeve pressed on the opposite ring through the rolling elements.

For many press-fit parts, the first cost-effective improvement is the correction of a contact or support. Identify that change before replacing the press. A nominal 20 kN machine rating says little about whether a particular thin shoulder is suitable to receive the load.

Punch contact faces that protect the fitted component

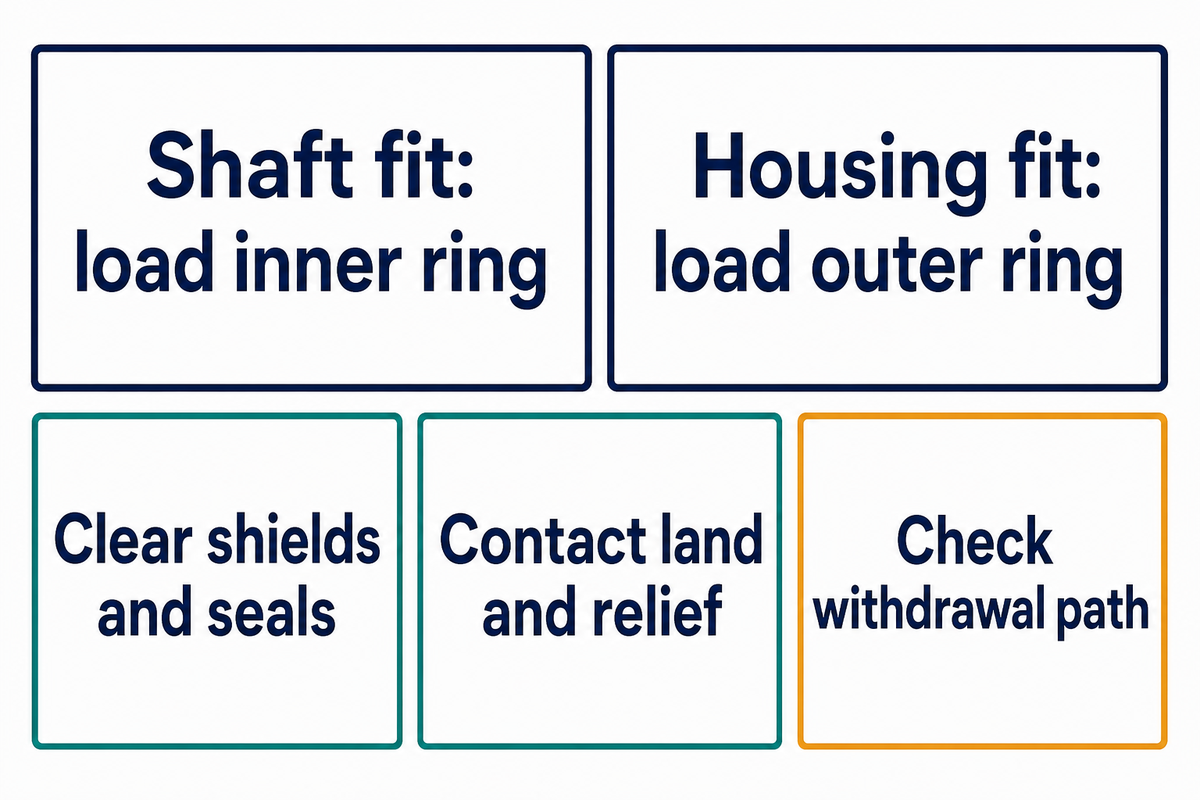

Shaft fits usually load the bearing inner ring; housing fits load the outer ring, with seals clear.

Match the contact face of the tool to the permitted loading surface of the component. A bearing pressed to a shaft usually needs tool contact on the inner ring; a bearing pressed to a housing needs tool contact on the outer ring. Ensure that the tool remains clear of shields and seals and check tight fits against the bearing manufacturer’s mounting method.

What is a punch in press tooling?

A punch is the upper working tool that transmits the press load to the part. In assembly it may be a flat driver, annular sleeve or a shaped insert. Contact, guidance and attachment of the punch determine where the load enters the workpiece and whether the tool can be withdrawn cleanly.

Draw the contact land and the relief together. Relief should clear a protruding shaft, seal or groove throughout the stroke, including the dimensional limits. Precision begins with the loaded geometry; a diameter alone doesn’t describe this interface. Check the specified chamfer and whether the contact land seats evenly. Surface finish, edge condition and parallelism also affect local pressure. Contact-mechanics research by Fabian Forsbach shows how edge geometry changes the stress distribution beneath an idealized punch; it doesn’t supply a universal corner radius for production tools. This research, however, doesn’t provide a general corner radius for production tools.

Drawing scenarios with illustrative dimensions are as follows. Consider a bearing with 20 mm bore and 47 mm outside diameter being fitted on a shaft. An outer-ring driver offers an easy flat surface but routes the load through the rolling elements. The tooling designer provides an annular contact on the inner ring and a central passage for the shaft. Before cutting steel, the designer aligns the driver section over the bearing manufacturer’s drawing, traces the withdrawal path and checks the permitted contact land. At the trial, the bearing is inspected, and its specified running condition is checked. The 20 mm bore identifies the component; it doesn’t determine the driver clearance or the required insertion force.

Specifying the loaded face before stating tool hardness is necessary because a durable punch with the wrong contact geometry can damage the first part. Make the contact insert replaceable in places where its wear is expected, and issue a drawing revision for the replacement.

Support nests for thin-walled housings

Check punch contact, fitted-component load, receiving support and tool withdrawal in a thin-wall nest.

Support a thin-walled housing near the region that receives the insertion reaction while keeping its locating datums stable. A convenient outer flange may not be able to carry the load. Elastic deformation of the support can contribute to measured ram travel. Check the loaded section, local wall thickness and removal clearance, and make sure that the nest supports the assembly through pressing and release.

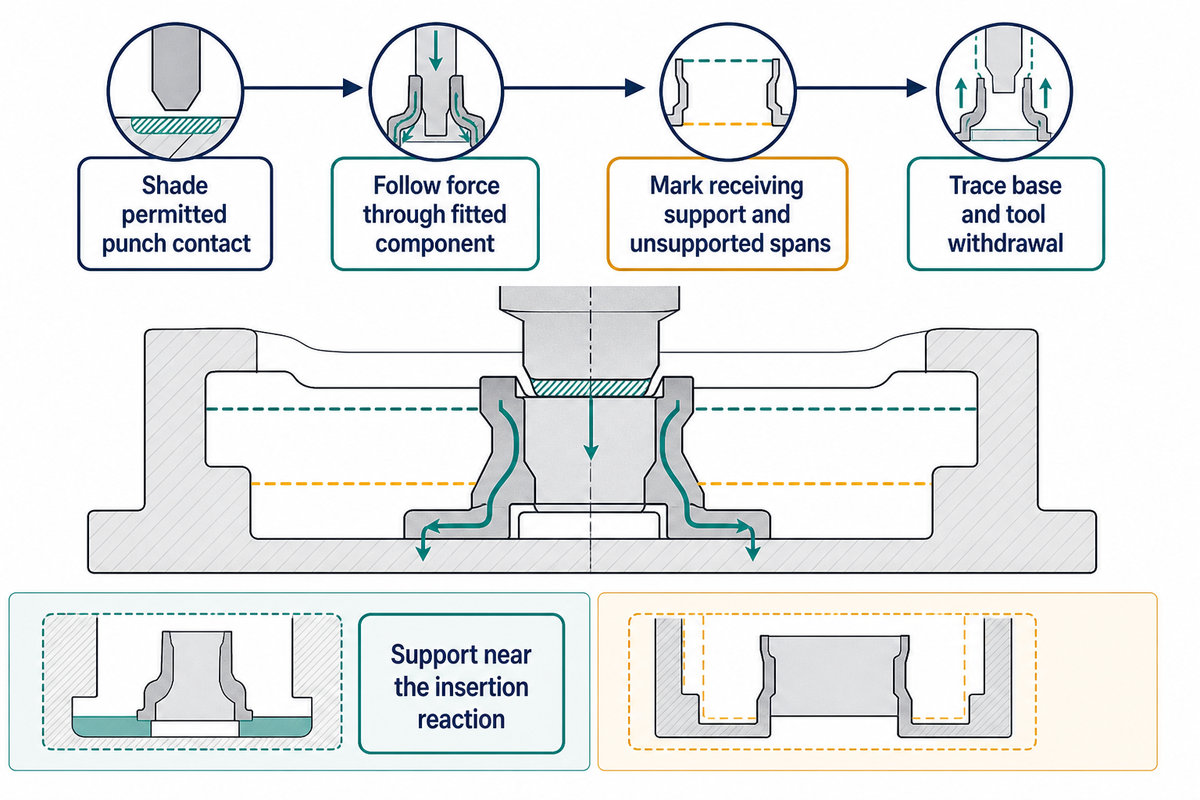

4-Surface Load-Path Check

Trace the punch contact, fitted component, and the receiving part support and the fixture base to show unintended bending or unsupported load paths.

Imagine a 40 mm bearing entering an aluminum housing with a 3 mm wall and a broad decorative flange. Loading is aided by the flange resting on two blocks. The bearing seat is between the blocks. A closer support ring provides a more direct reaction path. The designer needs to verify the ring can reach the structural land of the housing without touching the bearing and without trapping the assembly. A section view shows the supported region, the no-contact region and the region the ring occupies on exit. Seating should be inspected before loading and the housing measured afterward to verify the bore. A repeatable force trace is useful, but the product release decision also needs the specified bore, face or functional check. The drawing determines the support dimensions.

A Boeing bushing-installation patent, US5363543A, depicts this situation with spaced flanges. The mandrel and anvil arrangement routes the reaction near the loaded bushing instead of transmitting the load over the other flange. The focus is on the path of the reaction; the tool layout isn’t a universal fixture in housing.

Review the section in load order

  1. Shade the punch’s permitted contact.
  2. Follow force through the fitted component.
  3. Mark the receiving support and every unsupported span.
  4. Continue to the base, then trace tool withdrawal.

A 3 mm wall requires a drawing specific review of support, as opposed to a stock rule that states every 3 mm housing requires the same nest. If the support obstructs release, its geometry or the sequence of opening should be changed before the fixture is approved.

Rigid guidance, floating holders and guided pilots

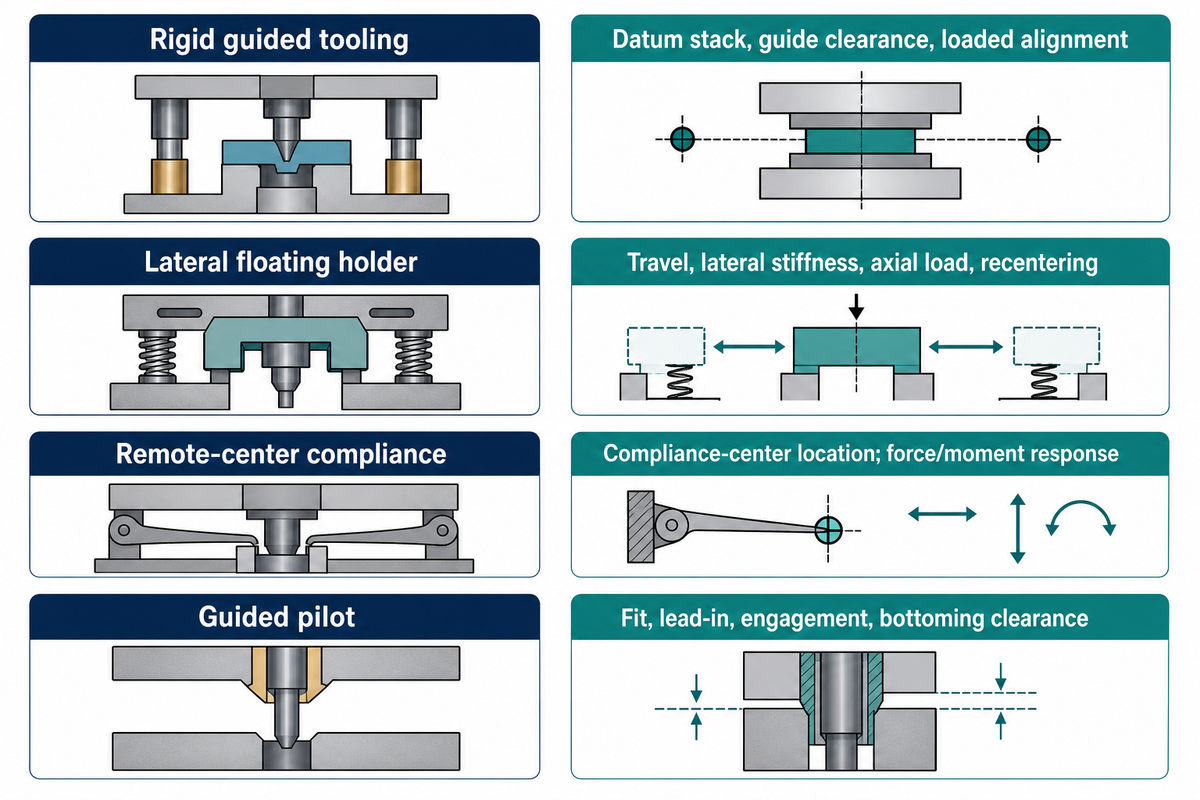

Compare rigid guidance, lateral float, remote-center compliance and guided pilots by required evidence.

Once the support is secure, choose rigid guidance if the fixture must hold the insertion axis. Choose controlled compliant guidance if the part is free to align its axis of mating and the tooling must account for measured variation. Local alignment is provided by a guided pilot; however, its clearance, path of engagement and exit, and length of engagement must be suitable to the component.

Compare alignment behavior under load
Arrangement Useful job Required evidence
Rigid guided tooling Maintain a defined approach axis Datum stack, guide clearance and loaded alignment
Lateral floating holder Allow specified sideways adjustment Travel, lateral stiffness, axial load rating and recentering
Remote-center compliance Combine appropriate lateral and angular response Compliance-center location and force/moment response
Guided pilot Engage a suitable bore before or during insertion Fit, lead-in, engagement and bottoming clearance

Descriptions of ATI’s compensators differentiate lateral compliance from remote-center behavior. For a remote-center device, the contact point’s position relative to the compliance center is important. Ciblak and Lipkin’s analysis of remote-center structures shows that the location of the center point is critical and that an inverse relationship exists between linear and angular lateral stiffnesses. Compare the response to the intended force and moment.

What effect does a 0.10 mm lateral setup variation have on the proposed holder under a given axial load? Does it recenter before the next part? Can the component’s lead-in guide the correction? A holder that’s free to move may behave differently when loaded. Record angular variation in degrees.

Rigid guides can bind due to overconstrained conditions. Floating tool holders can allow an unwanted tilt if their response is poorly matched. Misalignment can be fixed with compliance, but only if that compliance is used to correct for the measured condition.

Tooling choices for bearings, bushings, pins and connectors

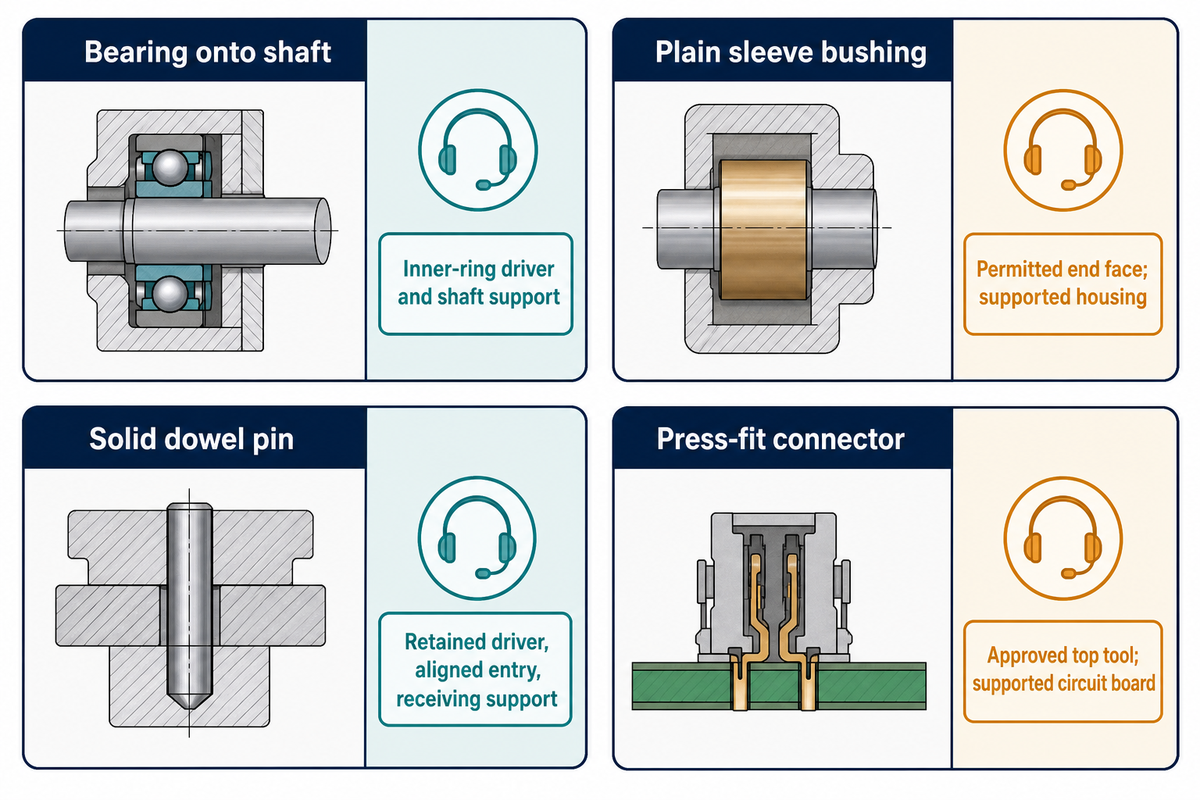

Bearing, bushing, dowel-pin and connector assemblies call for different permitted contact and support.

Press-fit technology performs several assembly tasks. Select tooling by the feature being installed and the surface that’s allowed to support the load. Bushings require a controlled entrance and support, and electrical connectors require matched top tools and board support. Similar outside diameters don’t make tools interchangeable.

Component-to-tooling selection matrix
Component or task Contact and support choice Check after assembly
Bearing onto shaft Inner-ring driver and shaft support Position and specified bearing function
Bearing into housing Outer-ring driver and housing support Seating and housing condition
Both bearing rings tight Maker-approved simultaneous loading arrangement Both seats and running condition
Plain sleeve bushing Driver on permitted end face; supported housing Installed bore and running clearance
Flanged bushing Specified driving face with shoulder clearance Flange seating and bore condition
Solid dowel pin Retained driver, aligned entry and receiving support Projection and location
Slotted or coiled spring pin Pin-specific driver and recommended hole preparation Depth and component condition
Press-fit connector Approved top tool and supported circuit board Insertion position and specified electrical/mechanical tests
Insert into a plastic part Insert-maker process and local part support Position, cracking and required retention

What are the different types of press-fit pins?

Mechanical choices include solid dowel pins and slotted or coiled spring pins. Select the fastener for the joint, and the driver to match the fastener. Electrical press-fit pins may use a compliant contact zone designed for a specified plated hole. Differing pin materials and designs affect force transmission and how a pin is introduced, so the pin design should dictate the driver and hole preparation.

SPIROL’s pin-installation range provides useful examples of scale. Its PM manual machine lists 0.8–4 mm pins and a maximum force of 0.9 kN; PMH lists 0.8–10 mm and 6.7 kN. PR lists 1.3 kN and CR lists 8 kN. The DP drilling-and-pinning machine drills 0.8–6 mm holes and provides insertion force up to 8 kN. These catalog values identify the respective machines. Choose the actual force for assembly from the pin requirements and representative parts, not from the pin diameter alone.

For electronics, IEC 60352-5:2020 addresses solderless press-in connections. A DigiKey support answer for a Harting connector lists separate top-tool and board-support parts. This is why a generic flat plate is a poor starting assumption for a press-fit connector.

Keep the joint design and tooling separate. See our press-fit tolerance limits guide to learn more about dimensional fit. Adhesive-assisted retention, thermal shrink assembly and a weld are other process choices; changing between them requires a new joint design, not just another punch.

Tooling validation before accepting the process

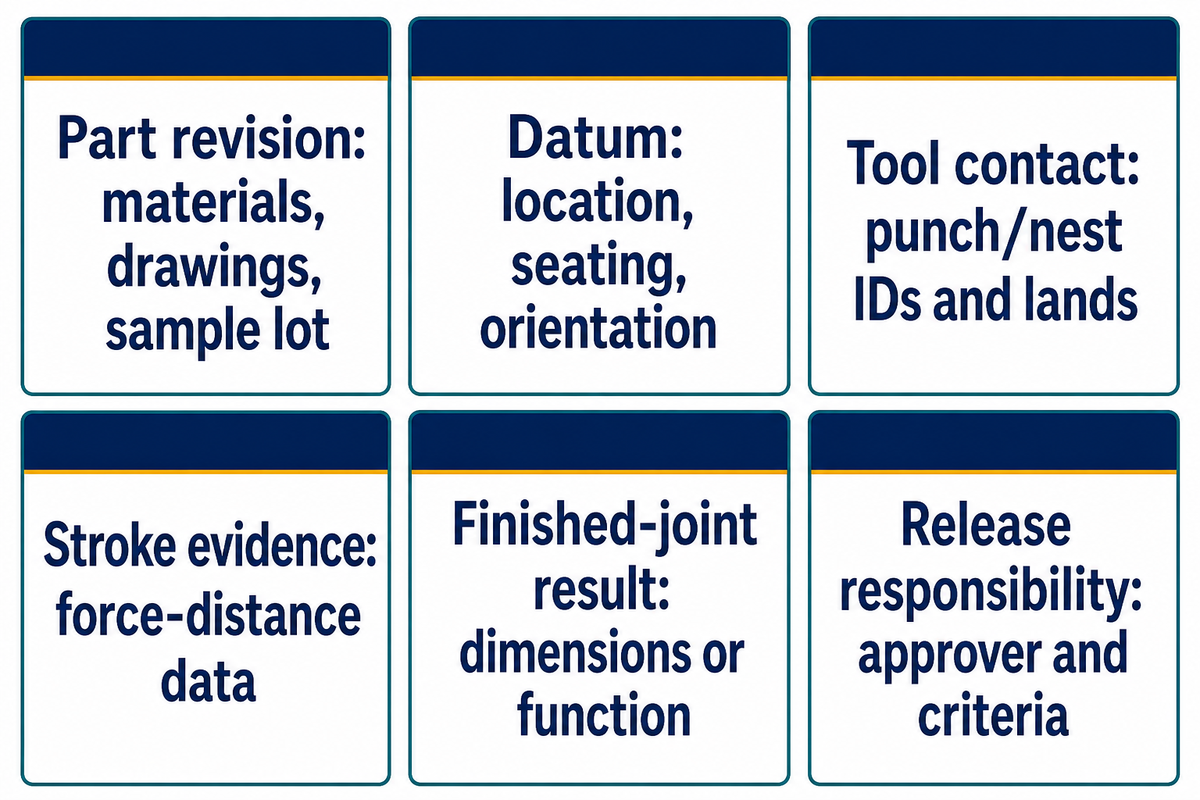

A tooling trial record ties part and tool revisions, stroke data, finished-joint results and approval.

Verify the tooling with representative production parts and a specified finished-joint result. Record setup and Force/Distance, and compare these records to independent dimensional and/or functional checks. Establish acceptance windows with known good parts and challenge them with known defects to evaluate false acceptance and false rejection.

“There’s a difference between process monitoring and process control.”

Manual presses can monitor force-distance curves. Servo systems can use feedback to control motion. State what function the application needs. In September 2026, ASSEMBLY reported EMG monitoring controls for manual and pneumatic presses as an example of this.

Using acceptable components as a reference is described by John Lytle, engineering manager at Promess, in How to Evaluate a Press-Fit Curve. Suppose we extend that work to the variation we should expect with production samples. In a 2015 study by You and colleagues, 18 micropart samples used 12 μm, 13 μm and 14 μm interferences, with approximately matched shape errors and surface roughness. Researchers still noticed curve changes due to surface and form variations. These conditions show the reason a reference is defined for a part population. A calculation can serve as a starting point to guide a trial, but the engineer still relies on measured joint results.

6-Field Tooling Acceptance Record

Bind part revision, datum, tool contact, stroke evidence, finished joint result, and release responsibility in one traceable trial record.

Acceptance record for the trial
Field Record
Part revision Part numbers, materials, drawings and sample lot
Datum Locating features, support seating and orientation
Tool contact Punch/nest IDs, revisions, contact lands and reliefs
Stroke evidence Recipe, sensor location, units, force-distance data and classification
Finished-joint result Measured dimensions and specified retention or function
Release responsibility Named approver, acceptance criteria and change triggers

An illustrative trial for a bushing with a nominal 12 mm insertion depth is considered. A setup record identifies a housing datum and a driver revision. A press records stroke at its ram. An independent measurement verifies the final position of the bushing relative to the housing. The trial includes acceptable assemblies and separate specimens which weren’t correctly seated, and/or have an incorrect component. The team considers each classification versus the measured result as opposed to drawing a tight window around the first attractive curve. If a sensor reports a 12.00 mm stroke and the housing has moved in its nest, the measurement of the part exposes the mismatch. Before release, the owner defines which variations were covered and what change requires another trial.

SIMITCH’s press systems with external sensing support external force and displacement sensors, sampling up to 10 kHz and up to four evaluation windows. Choose the sensor range and location for the working signal. The next step is to validate the force-displacement trace against the joint acceptance criteria.

Custom tooling quotes: define scope and ownership

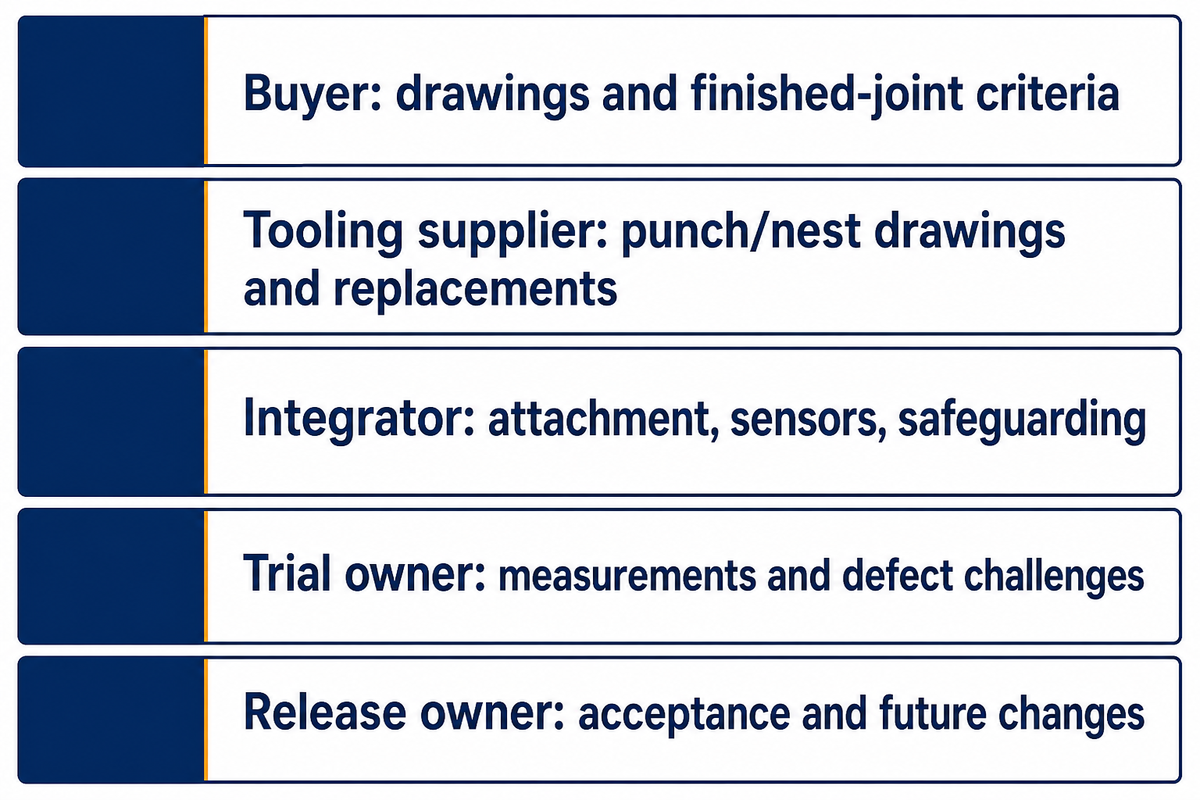

A custom tooling quote assigns drawings, integration, trials and acceptance to five named owners.

It’s useful to have a customized-tooling quotation to separate design, manufacture, trial work and acceptance responsibilities. Send the supplier part drawings, sample conditions and required finished conditions. Find out what’s included in the price, who controls revisions, inserts and press programs after the first tooling set is delivered.

The acceptance record serves as the technical attachment. ASSEMBLY’s reporting on press selection recommends involving suppliers early in station design and testing production-ready parts. Suppose a tooling package for an automotive program is requested. The buyer needs to state his traceability requirements. The responsibility for fulfilling the remaining requirements can then be assigned as appropriate.

  • Buyer: approved component drawings, production variations and finished-joint criteria.
  • Tooling supplier: punch/nest drawings, interfaces, materials and replacement-part definitions within the quoted scope.
  • Integrator: press attachment, sensor arrangement, safeguarding and station sequence.
  • Trial owner: sample identification, measurements, defect challenges and report delivery.
  • Release owner: acceptance decision and rules for future changes.

When requesting a quote for an insertion of 12 mm stroke, differentiate the working stroke from the approach distance, and the space required to load and remove the part. List spare guides and wear inserts, and other trial rounds, separately. A lower price for the first offer can hide scope differences that make offers hard to compare.

Discuss the expected force range and component, and the tooling interface with SIMITCH when selecting an integrated press solution. Agree on the supply boundary in the quotation, so the buyer knows which party delivers each tool and test result. The engineering solution should tie these responsibilities to measurable release criteria.

Press integration, changeover and tool maintenance

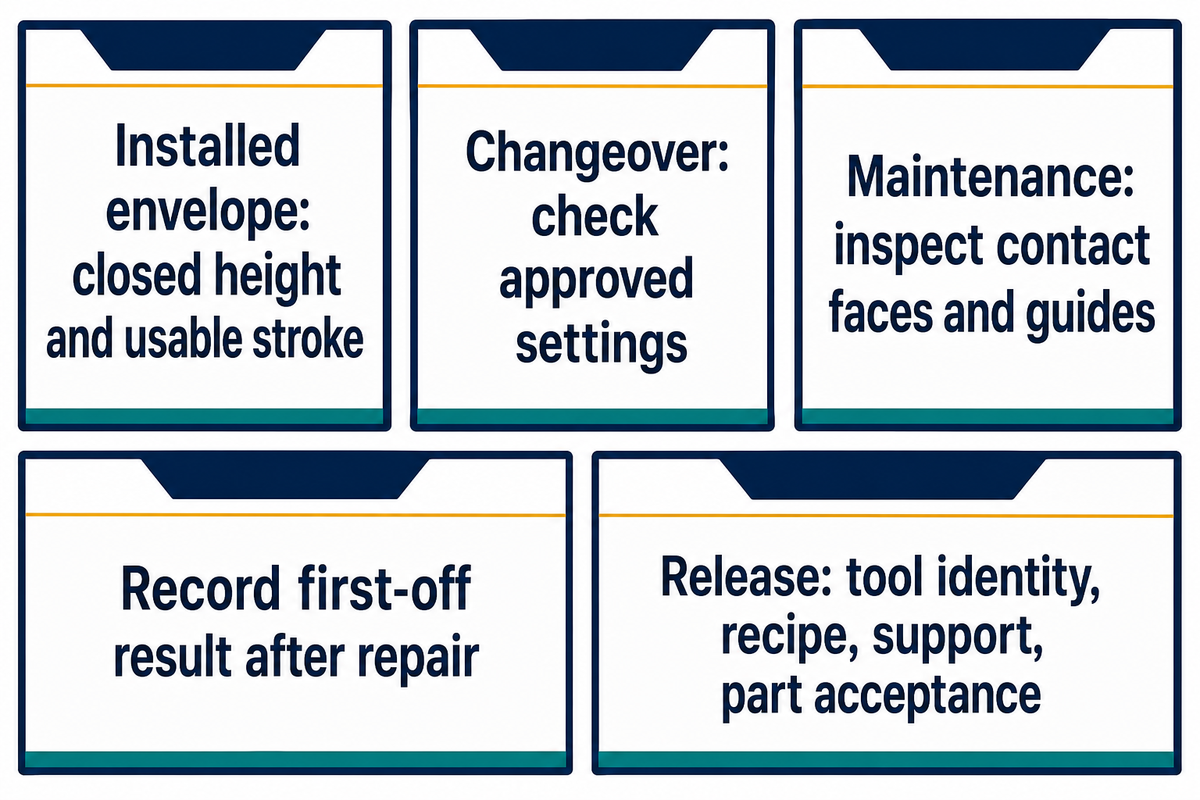

Check installed stroke, approved changeover, tool condition and part acceptance as one release package.

Before placing the complete installed tooling envelope into service, check the attachment of rams and other components, closed height, usable stroke, loading access and release motion. Check the sensor range against the process and identify the fitted tool in the recipe. After a changeover, check the settings against the approved record before releasing production parts. The record also serves as a reference for maintenance personnel for returning tooling into service after repair in the manufacturing industry.

A maximum stroke of 300 mm for a machine doesn’t ensure 300 mm would be available after the tool stack is installed. SIMITCH lists that maximum for its BP series alongside a 10–200 kN force range. Check the selected model, assembly arrangement and available space for the compact nest, actuator movement and ejector. The listed 0.01 mm repeat-positioning value describes the equipment; set the finished-part tolerance through the joint design and measurement plan.

Review guarding and operator access across loading, pressing, jam recovery and maintenance. ISO 12100 provides a machinery risk-assessment framework. Select any more specific press standard by its scope: ISO 16092-1:2017 excludes certain principal fastening operations, including riveting. Its replacement was still a committee draft when checked in October 2026.

Examine contact faces for damage and pickup, guides for wear, and release features for free movement. Damaged mating surfaces can gall; dirt underneath a support can change seating. Record the first off result after replacing a punch insert or repairing a nest. For automation, include identification of tool, and confirmation of part-release in the assembly line handoff requirements.

Release the setup as a package. Tool identity, recipe, support condition and part acceptance belong together. A replacement insert can change contact geometry even when the machine settings stay the same.

Press-fit tooling questions

Always start from the component drawing and required joint result. These answers separate tooling, fit requirements and maintenance decisions, so the quote covers the actual assembly.

What is the best press fit tool?

Choose by the component and the permitted load path.

The best tool matches the component’s permitted contact face, receiving support, alignment method and required finished result. A bearing sleeve, bushing driver and connector insertion tool solve different problems. Start with the component drawing and installation specification, then confirm press compatibility and sample acceptance. Compare suppliers against that same scope rather than choosing by maximum force or apparent versatility alone.

What is the acceptable tolerance for a press fit bushing?

Use the specified bushing and housing requirements.

There’s no single tolerance suitable for every bushing. Use the manufacturer’s housing and installation requirements, then account for material, wall thickness, temperature and the bore condition after pressing. Tooling should respect those requirements. Check the installed internal diameter when the application needs running clearance, and keep that dimension separate from the free-state outside diameter used to define the housing fit.

Why are press fit tools so expensive?

The price can include a complete fixture and trial package.

A custom tooling price may include more than a machined punch. A support nest, guides, wear inserts, sensors, changeover features, sample trials and engineering revisions can all be part of the quotation. Compare the included work and acceptance responsibility before judging price. Ask for replaceable wear parts and repeat-order costs as separate lines, and identify who supplies the approved drawings.

Does press-fit tooling work with a manual press?

Yes, when the press and tooling meet the application.

Manual actuation can suit the required force, alignment and stroke. It still needs controlled contact surfaces, stable support and finished-part checks. Monitoring is also possible on manual equipment; decide separately whether the process requires feedback-controlled motion.

What are press-fit connectors?

Press-fit connectors make specified electrical connections without solder at the pressed interface.

Press-fit connectors use contacts that engage specified holes in a circuit board. Compliant contact zones and plated-hole requirements make them different from ordinary solid dowel pins. Use the connector manufacturer’s approved insertion tooling and board support. Permitted loading surfaces, nearby-component clearance and pin alignment depend on the exact assembly. Electrical reliability follows the defined connection and test requirements; the absence of solder alone doesn’t establish it.

Can floating tooling correct a poorly located part?

Floating tooling can accommodate specified movement after the part is properly supported.

Floating tooling works within its designed motions, stiffness and load capacity. Establish a stable nest and a reliable datum first. Measure the misalignment, then validate the holder’s correction and recentering under the actual insertion load.

When should press-fit tooling be replaced?

Replace or repair it when wear affects an agreed function or check.

Inspect the contact, location, support and release features against the tooling specification. Damage, pickup, guide wear or a failed acceptance check can trigger repair or replacement. A universal stroke count is a poor substitute for those observations. Keep tool identity and first-off results traceable so changes can be investigated. Before a repaired nest or new insert returns to production, complete the checks defined in the approved setup record.

Considering press-fit stations? Send your drawings and sample requests for the desired finished joint result. SIMITCH can address the press system, monitoring functions, and integration for your application.

The two checklists named are editorial methods consisting of cited instructions for mounting and process control. Drawing scenarios are illustrative, and catalog specifications retain the scope stated by their named manufacturer.

References & Sources

  1. Forsbach: stress beneath axisymmetric contact bodies Frontiers in Mechanical Engineering, 2020.
  2. US5363543A: Method of aligning two bushings in a bore Boeing patent record, 1994.
  3. Ciblak and Lipkin: Remote Center of Compliance Structures Journal of Robotic Systems, 2003, public abstract.
  4. IEC 60352-5:2020 International Electrotechnical Commission, public scope and edition record.
  5. Common Mistakes With Presses ASSEMBLY, 2022.
  6. Control Monitors Force and Displacement During Press-Fit Assembly ASSEMBLY, September 2026.
  7. How to Evaluate a Press-Fit Curve John Lytle, Promess, in ASSEMBLY, 2024.
  8. You et al.: Prediction of Pressing Quality for Press-Fit Assembly International Journal of Aerospace Engineering, 2015.
  9. ISO 12100:2010 International Organization for Standardization, public scope.
  10. ISO 16092-1:2017 International Organization for Standardization, public scope and status.

Related Articles

]]> https://simitch.com/blog/press-fit-tooling/feed/ 0 Press Fit Tolerance: From Shaft and Hole Limits to Assembly Proof https://simitch.com/blog/press-fit-tolerance/ https://simitch.com/blog/press-fit-tolerance/#respond Wed, 14 Oct 2026 03:38:34 +0000 https://simitch.com/?p=2752

Press fit tolerance describes the permissible dimensional variations of mating features. Interference is the shaft diameter minus the hole diameter. A useful specification states both parts’ limits, and connects the result to inspection and joint function.

Quick Specs: hypothetical drawing

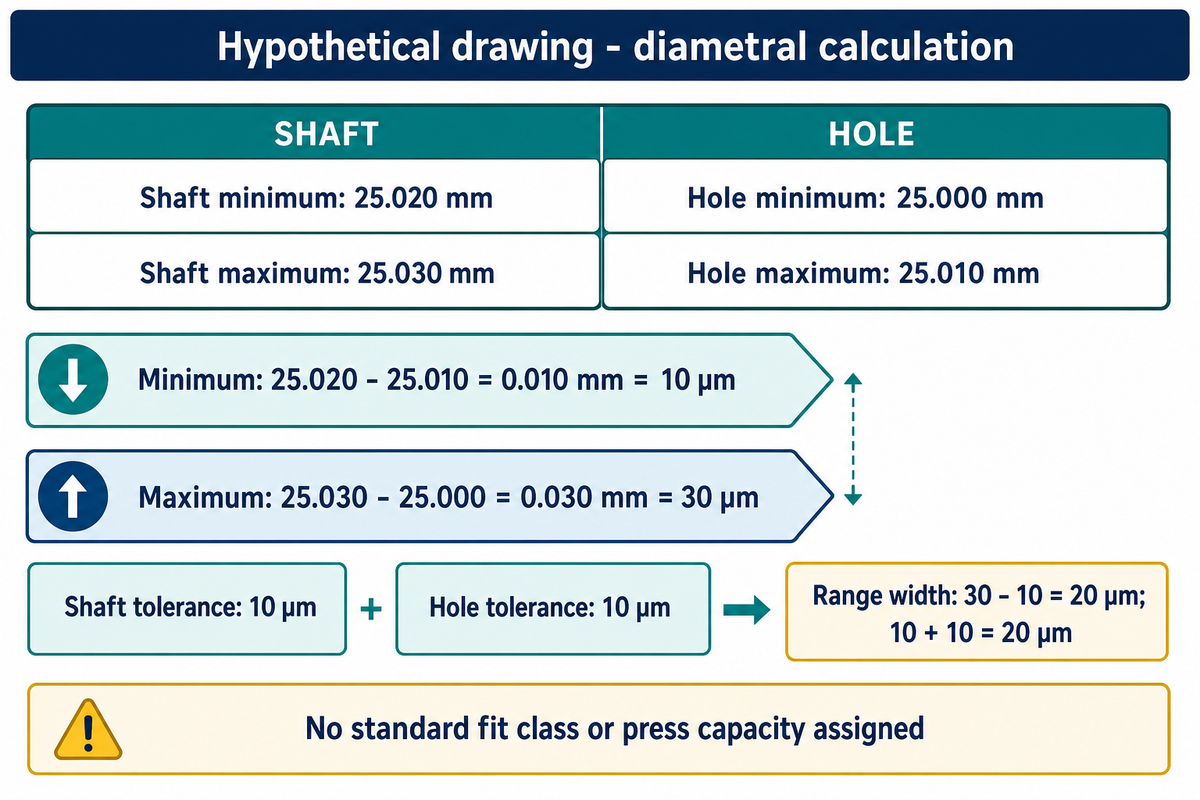

Shaft: 25.020–25.030 mm. Hole: 25.000–25.010 mm. Calculated diametral interference: 10–30 μm. No standard fit class or press capacity is assigned.

Press fit tolerance needs four dimensional limits. Minimum interference = smallest shaft − largest hole; maximum = largest shaft − smallest hole. Use matching units and measurement conditions. Positive results establish dimensional interference, not joint performance.

  • A negative minimum doesn’t always mean a transition fit; the maximum should also be checked.
  • Diameter limits of features of joints don’t fully define form and surface requirements.
  • An acceptable press trace requires a verified relationship to the finished joint results.

Define press fit tolerance before choosing a number

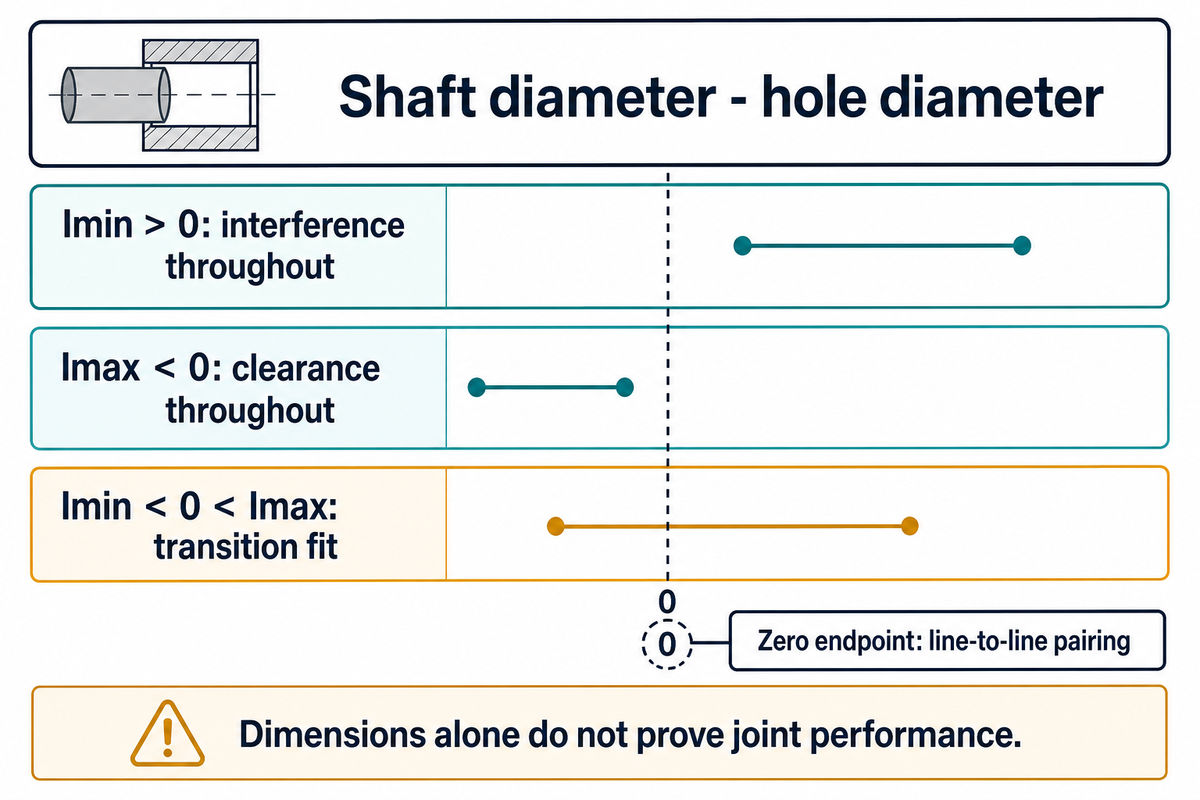

Classify shaft-minus-hole intervals as interference, clearance or transition; zero allows a line-to-line pairing.

A press fit specification requires separate shaft and hole tolerances, since either part may vary within its permitted limits. The resulting interference fit describes their dimensional relationship. Whether that relationship can hold the parts under service loading requires material, geometry, and functional evidence beyond the size calculation.

With a positive interference fit, the shaft is oversized relative to the bore. When a joint is assembled, pressure occurs, and the useful frictional resistance depends on the joint design and surfaces.

Classify the whole permitted interval
Interval Dimensional relationship Reader action
Imin > 0 Interference throughout Check whether the joint tolerates both extremes.
Imax < 0 Clearance fit throughout Check the required freedom of movement.
Imin < 0 < Imax Transition fit Allow for either interference or clearance.

An endpoint of zero allows a line-to-line dimensional pairing. A sliding fit or slip fit has a different functional effect from a retained joint; hand effort is not its dimensional definition. ISO 286-2:2010 defines the limits of the shaft and hole, but to define a complete specification, the applicable requirements must be stated.

Writing “press fit” beside a 25 mm nominal dimension leaves the permitted variation unknown. Treat each part separately, noting its limits and the assembled joint’s function. This is for smooth, cylindrical surfaces. Splines, knurls and tapered interfaces, for example, require their own dimensional and installation requirements.

Calculate minimum and maximum interference from four limits

Hypothetical four-limit worksheet gives 10–30 μm diametral interference; it assigns no fit class or press capacity.

In this case, the least amount of interference is achieved by the smallest possible shaft and the largest possible hole. The most amount of interference is achieved by the largest possible shaft and the smallest possible hole. Both of these combinations should be considered in the same unit of length and at the specified measurement state. These extremes define the limits of the drawing. They don’t predict how frequently production will produce parts at these dimensional limits.

How do dimensional tolerances create minimum and maximum interference?

Each component has its own allowed variation, so a nominal difference can’t describe all permitted pairings. Convert any plus/minus dimension or limit deviation into explicit minimum and maximum sizes first. Then subtract opposite limits from each other. The interference interval width is the sum of the component tolerances.

Take inputs from the specified hole-and-shaft limits system. For this hypothetical metric worksheet, diameters are assumed in an agreed measurement state, not in the values given in the ISO tables.

Four-Limit Fit Worksheet

Four-Limit Fit Worksheet: hypothetical inputs and completed calculations
Field Hypothetical example / calculation Your drawing entry or check
Shaft minimum, Smin 25.020 mm Enter lower limit and drawing revision.
Shaft maximum, Smax 25.030 mm Enter upper limit and drawing revision.
Hole minimum, Hmin 25.000 mm Enter lower limit and drawing revision.
Hole maximum, Hmax 25.010 mm Enter upper limit and drawing revision.
Shaft tolerance 25.030 − 25.020 = 0.010 mm = 10 μm Calculate Smax − Smin.
Hole tolerance 25.010 − 25.000 = 0.010 mm = 10 μm Calculate Hmax − Hmin.
Minimum diametral interference 25.020 − 25.010 = 0.010 mm = 10 μm Calculate Smin − Hmax.
Maximum diametral interference 25.030 − 25.000 = 0.030 mm = 30 μm Calculate Smax − Hmin.
Interference-range width check 30 − 10 = 20 μm; 10 + 10 = 20 μm Confirm the range width equals the component tolerance sum.

Hypothetical drawing example: an engineer hands quality a drawing that permits a 25.020–25.030 mm shaft and a 25.000–25.010 mm hole. Quality calculates the loosest combination as 25.020 − 25.010 = 0.010 mm, or 10 μm. The tightest combination is 25.030 − 25.000 = 0.030 mm, or 30 μm. Subtracting the endpoints gives a 20 μm interval, equal to the two 10 μm component tolerances added together. Both endpoints are positive, so the permitted dimensional interval is entirely interference. The engineer now supplies the material condition, form requirements, and acceptance criteria. The arithmetic is consistent; nobody has yet measured parts, established holding performance, or selected a machine. That distinction belongs on the trial request.

Correct any input limits that are expressed incorrectly, prior to calculation. Don’t replace drawing extremes with a root-sum-square estimate. Radial interference is defined as half the diametral difference in this case, but neither of these quantities individually defines the insertion force.

Key takeaway

The hypothetical 10–30 μm interval proves a consistent dimensional stack. Approval still needs defined geometry, measurement decisions, and evidence that the assembled joint meets its intended function.

Read ISO 286 and FN fit classes without false equivalence

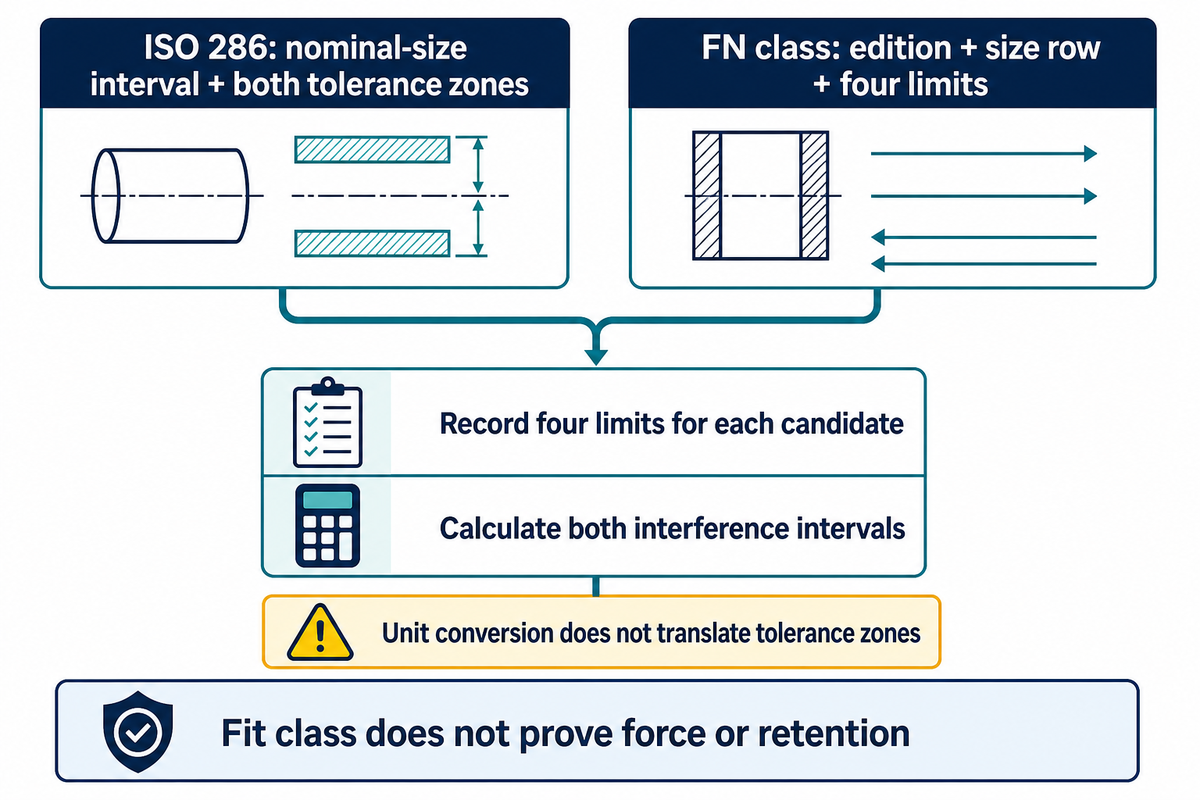

Compare documented ISO and FN limits within the governing standard; unit conversion does not establish equivalence.

Evaluate the fit class using the standard, edition, and nominal-size interval specified on the drawing. Extract shaft and hole limits before comparing alternatives. A fit class identifies a dimensional selection, but doesn’t demonstrate assembly force, retention or equivalence to another standards system.

What is the difference between FN1 and FN2 press fits?

Compare FN1 and FN2 limits in the given standard and nominal size row. Record the four limits for each candidate and calculate the two interference intervals. Without those entries, the labels alone do not justify a numerical difference, an ISO equivalent, or a recommendation for a particular press capacity.

The public description of ASME B4.1, Preferred Limits and Fits for Cylindrical Parts, identifies its scope. Neither that description nor ISO’s public introduction supplies the required numerical tables.

What a standards lookup must deliver
Reference Retrieve Does not prove
ISO 286 designation Nominal-size interval and both tolerance zones Suitability for every material or wall thickness
Drawing-specified FN class Edition, size row, and four limits A universal ISO interchange
Engineering handbook Its cited standard and matching table units That an unlabeled chart matches the purchase specification

It requires design review to approve a purchasing request to replace FN1 with H7/p6. Converting inches to millimeters preserves a length; it doesn’t provide a translation of tolerance zones. Ask the supplier to return limits and the governing reference, and don’t accept “industry standard” as the answer.

A 25 mm nominal diameter locates a size row only after the governing standard is known. The worked 10–30 μm range carries no FN or ISO class assignment. Compare documented limits first, then judge the engineering consequences of either proposed fit.

Judge interference against material and geometry

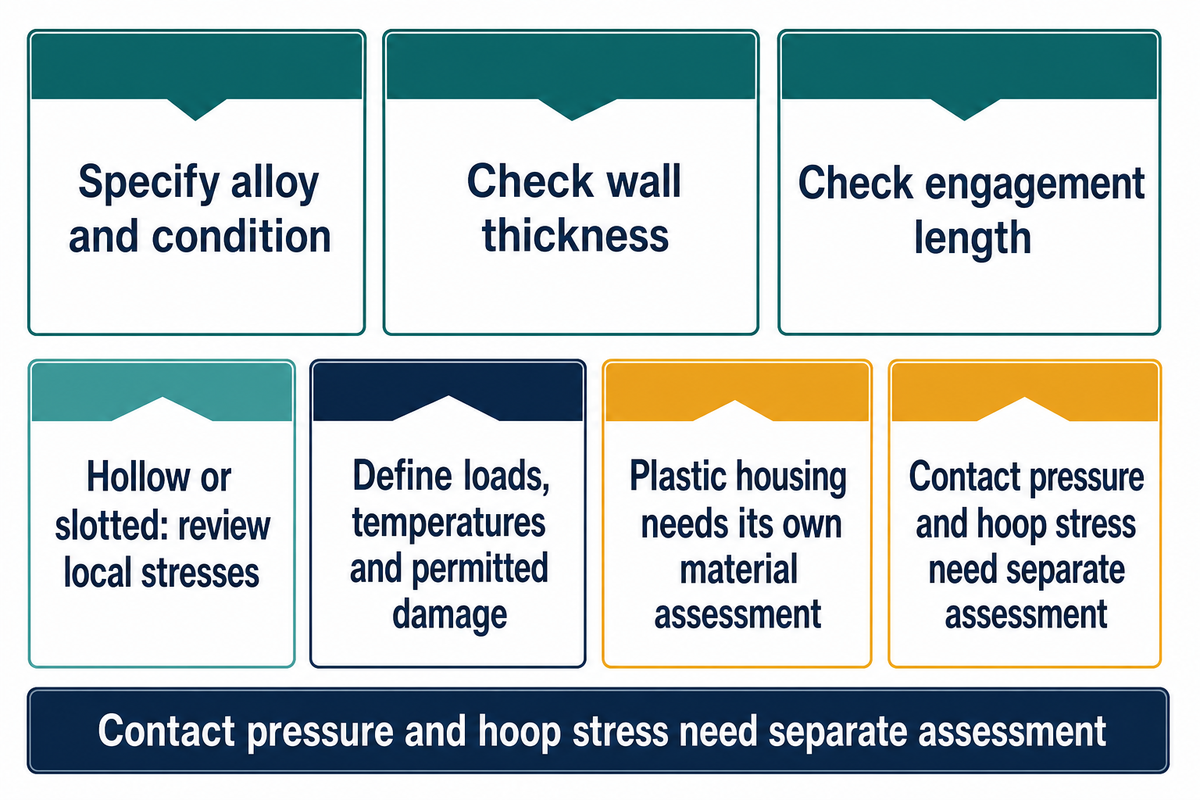

Material, walls, engagement and service conditions must be assessed before accepting an interference value.

An interference value is only acceptable with a defined set of criteria (material, geometry, service conditions, etc). Diameter alone can’t describe the stiffness of a thin housing or a hollow shaft. Prior to approving a number, determine how the parts deform and what loads, temperatures, and damage limits the assembled joint is expected to withstand.

Is .002 a good press fit?

A bare “.002” is insufficient because its unit and dimensional convention are missing. A diametral difference of .002 in equals 0.0508 mm, or 50.8 μm; .002 mm equals only 2 μm. Neither conversion establishes a suitable fit. Approval still needs the diameter, materials, wall thickness, engagement length, and required joint function.

Contact pressure and hoop stress require a separate engineering assessment. The material inputs to be considered may include the Young’s modulus and strength data for the specified alloy and condition. An axial retention requirement also needs the relevant interface and loading assumptions. No pressure formula is inferred from the worksheet.

Conditions to resolve before accepting interference
Condition Required action Limitations / Not suitable for
Steel shaft, aluminum housing Confirm alloys, walls, and service temperature range. A generic material-name correction cannot approve the joint.
Hollow or locally slotted section Check compliance and local stresses with the design owner. Solid cylindrical assumptions may not apply.
Bronze or cast iron component Obtain the specified grade and permitted damage criteria. Material names do not establish allowable compression.

Castagnetti and Dragoni’s 2024 finite-plate study shows that the geometric proportions and pin offsets can affect the contact-pressure distribution. A same-material, linear-elastic, two-dimensional model in a plane-stress state without external loading supports checking the circular-hub assumptions, not transferring values to arbitrary joints.

Plastic press fit tolerance requires its own material and service assessment. Metal-fit rules shouldn’t be applied to a plastic housing. Request the supplier data for the specified grade under the intended temperature and time conditions, and confirm retention for that duty. Results of an installation shouldn’t be relied on to demonstrate long-term holding performance.

A familiar 0.001 in-per-inch rule can’t resolve missing geometry or service data. An alternative like a keyway, or a bolt that provides removable retention, also needs design approval. Specify the required function before choosing the joining method.

Approving 50.8 μm because it = .002” would be confusing conversion and design validation. A buyer needs the missing material and geometry data returned with the proposal. The right fit is the interval that supports the required function, with supporting analysis or tests.

Separate bearing seats, solid pins, and spring pins

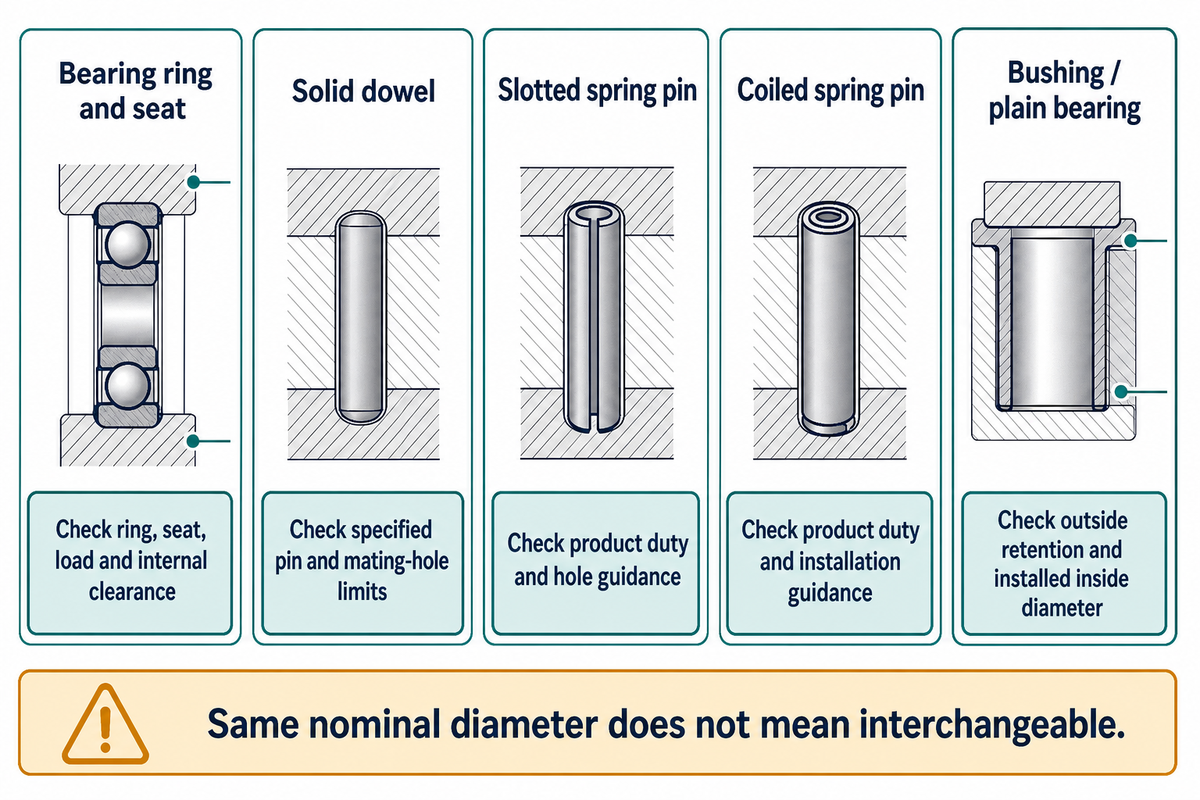

Five component families need separate fit evidence: bearing seats, solid dowels, slotted pins, coiled pins and bushings.

Bearing seats, spring pins and solid pins need different selection evidence, as the interfaces and deformation are different. Obtain the product drawing and guidance on how a component will be installed before defining a hole tolerance. Equal nominal diameters don’t make the parts interchangeable and a fit around one part may damage another.

What is the acceptable tolerance for press fit pins?

The specified pin tolerance is the one that’s right for the material and the hole function, as well as the retention for that product. Identify if the pin is solid, slotted, or coiled and then check the limits. Next, verify the manufacturer’s hole recommendation and installation constraints; a generic interference band can’t cover all three mechanisms.

Separate the component before selecting the fit
Component Evidence needed Do not transfer
Bearing ring and seat Ring tolerances, loading relative to the ring, seat limits, and internal clearance A generic shaft/hole pairing
Solid dowel Specified pin and mating-hole limits; ISO 8734 covers particular hardened steel and martensitic stainless steel dowels Spring-pin hole recommendations
Slotted spring pin Product duty and hole guidance; ISO 8752 identifies the heavy-duty slotted family A universal rule for every spring pin
Coiled spring pin Product duty and installation guidance; ISO 8750 identifies the standard-duty coiled family Solid-pin interference values
Bushing / plain bearing Outside-diameter retention and installed inside-diameter requirements Approval based only on the uninstalled bore

SPIROL’s published hole-preparation guidance differentiates solid pin sizing from spring pin compression. The product mechanism differentiation explains why changing suppliers requires a drawing comparison, even if both pins locate the same parts together.

A bearing interference fit requires the limits of the ring and its seat. Check the bearing housing fit and the inner-ring/shaft interface separately. The ring’s tendency to rotate relative to its load is critical. C3 describes an internal clearance group, not a seat fit class.

A bushing interference fit controls outside-diameter retention. Check the installed running fit inside the bushing separately, because an acceptable uninstalled bore doesn’t prove the final internal dimension.

NASA/TM-2009-215285 examines interference-related hoop stresses and the fatigue life of cylindrical roller bearings through calculations. Its abstract allows the treatment of bearing life as a different design consideration. It provides no universal life factor for ball bearing seats, dowels, or the joint of interest to the reader.

When providing bearing guidance, SKF states that thin-walled housings or hollow shafts may actually require tighter interference fits than cast-iron housings with thicker walls or solid shafts. Don’t take a thin-wall warning to mean a looser fit is allowed. Always apply the supplier’s recommendation regarding interference fits to the actual support geometry and check ring distortion separately.

Dowel pin interference fits require review when a supplier change occurs, even at the same nominal diameter. Make sure to return the proposed pin drawing to the design owner and confirm the limits of the hole and installation guidance before substitution. Be especially clear and precise when near a limit.

Measure the parts before trusting the fit range

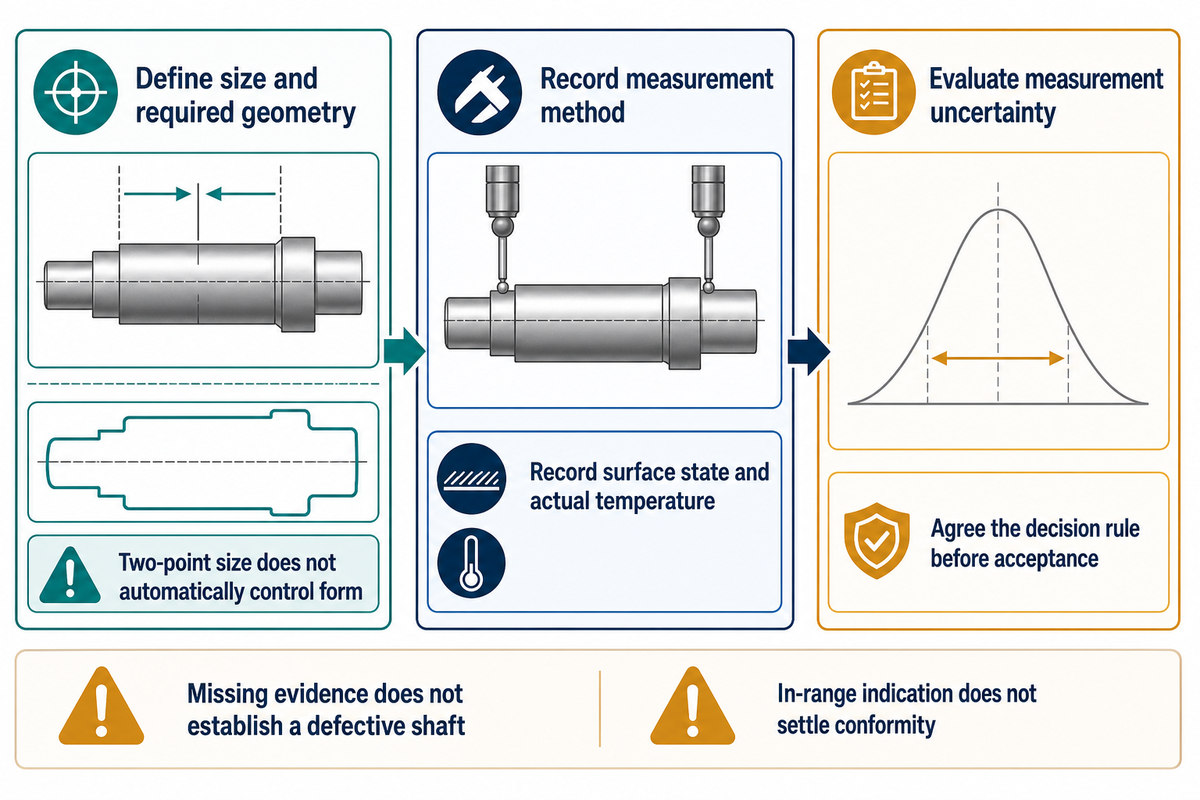

An in-range reading needs defined geometry, measurement conditions, uncertainty and an agreed conformity decision.

A calculated fit range is only useful if inspection measures the size defined in the drawing under the relevant conditions. State the conditions, the measurement locations and method, the state of the surface, and the temperature along with the result. As a general rule, form limits and the agreed-upon rule for measurement uncertainty dictate what the result can support, particularly if it’s close to a limit.

It is shown in the ISO 286-2 public introduction that the default two-point size criterion does not automatically control form. A roundness, cylindricity, envelope, or surface requirement may be needed to achieve the intended fit, but the appropriate drawing controls depend on function.

“This means that form is no longer controlled by the default specification of size.”

A machinist checking OD in one direction has measured that feature with that method. The result can’t describe every contact point along an interface with taper or form variation. Design should define the required geometry and metrology should choose a method that addresses it.

Measurement decisions are a separate issue. According to NIST’s Measurement Uncertainty guidance, uncertainty always expresses incomplete knowledge of the measured quantity. Therefore, a gauge display should always have an associated uncertainty and a defined measurand, as opposed to simply displaying digits and comparing them with an upper or lower limit.

ASME B89.7.3.1 addresses decision rules that consider uncertainty when determining conformity. Supplier and customer should agree on the rule before acceptance. No universal guard band or gauge ratio is assigned here; a boundary indication follows the agreed accept, reject, or further-measurement decision.

Hypothetical inspection scenario: A shaft reads near its drawing upper limit, and two directional measurements fall within the stated range. The report contains no record regarding the applicable envelope or cylindricity requirements, and the current measurement method lacks an agreed uncertainty decision rule. Quality doesn’t declare the shaft defective due to the absence of these items alone. The design owner first confirms the size definition and required geometry, and then metrology checks the measurement method and its uncertainty. The missing rule is then resolved by the acceptance owner in consultation with the customer prior to making a final disposition. Selecting the most favorable repeat reading would change the decision basis. The evidence available supports the indications reported, but doesn’t yet support the unresolved conformity decision.

CNC manufacturing tolerances also need a stated surface condition. Specify whether sizes apply before or after coating, record surface roughness requirements, and assess burrs. Tight tolerances don’t compensate for a measurement made on the wrong surface state.

In NIST’s account of the dimensional reference temperature, 20°C is defined as the standard temperature. Record the actual part temperatures and evaluate temperature changes with the relevant material coefficient. Differential expansion requires application inputs; 20°C isn’t an allowed temperature variation in the workshop.

Engineering Note

For the hypothetical 25.030 mm shaft upper limit, an in-range indication doesn’t settle an undefined form requirement or uncertainty decision. The purchase order should name the applicable inspection method and decision rule before parts arrive.

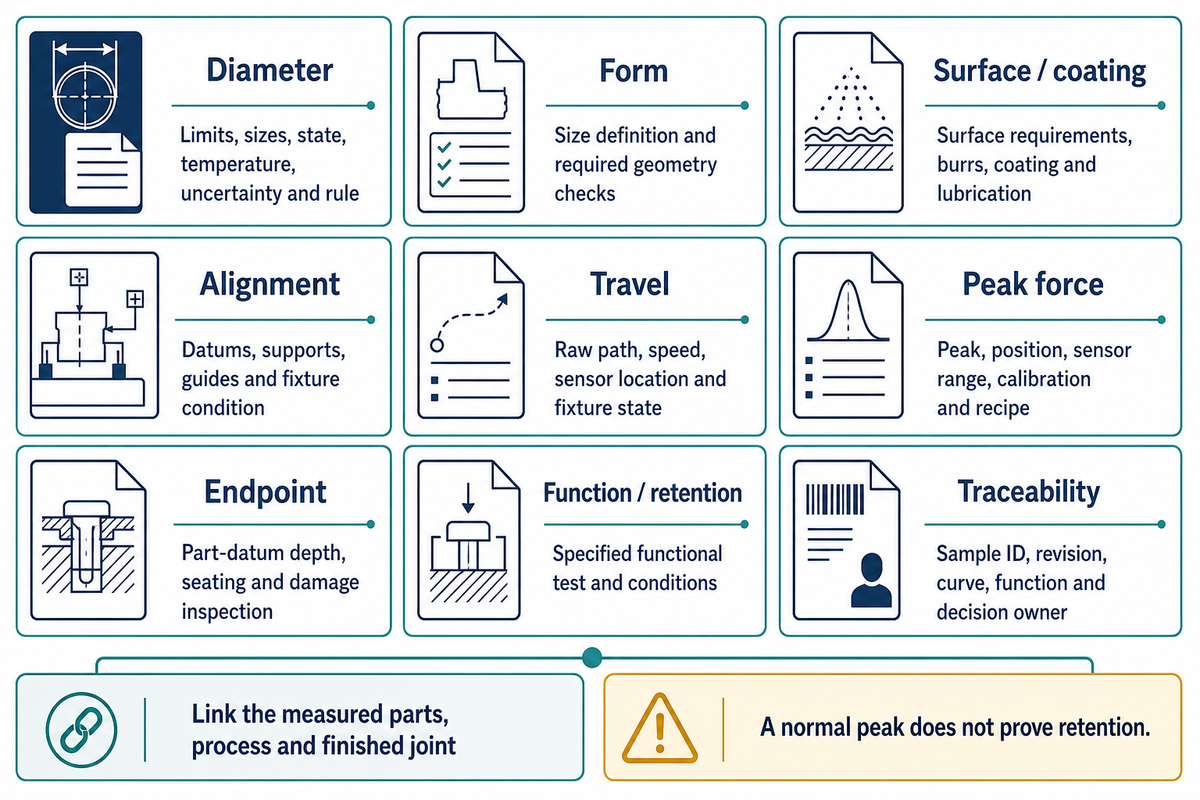

Nine evidence objects link dimensions, process records and finished-joint function through the same sample identity.

Assembly evidence should connect the measured components, the process, and the finished joints through the same sample identity. A force-displacement trace shows how parts are pressed together, while depth and functional tests answer different questions. Unusual curves on a graph should be investigated until it’s determined which factor is actually responsible for the observed results.

We describe process monitoring and external sensor options in our BP precision assembly press page. Those features help collect evidence; how useful they are depends on whether sample labels are validated, the behavior of the fixture, and where measurements are made.

When installing bearings, link each pressing record to the relevant ring and seat measurements. The functional checks of the selected bearing remain part of the acceptance plan.

0.01 mmSIMITCH stated repeat positioning, not part tolerance
Up to 10 kHzSIMITCH stated acquisition rate, not control bandwidth
Up to 4 windowsSIMITCH stated evaluation capacity; validate thresholds

Fit-to-Proof Evidence Matrix

This editorial checklist assigns evidence to failure modes. Dimensional rows address size and conformity; process rows require application trials. Replace each role with a project owner.

Fit-to-Proof Evidence Matrix: retain independent evidence for each decision
Object Trigger / candidate issue Evidence to retain Responsible role Limitations
Diameter Boundary indication or changed interval Four limits, measured sizes, state, temperature, uncertainty, agreed rule Metrology / quality Display values alone establish neither conformity nor form.
Form Local binding despite similar diameters Size definition and applicable envelope, roundness, or cylindricity checks Design / metrology Few two-point readings cannot describe full-length contact.
Surface / coating Machining batch or coating change Surface requirements, burr checks, coating state, lubrication Manufacturing / quality Records do not quantify effective interference or friction.
Alignment Early contact, side loading, scoring Datum setup, supports, guides, entry position, fixture condition Process / tooling Contact anomalies do not identify one dimensional cause.
Travel Changed insertion path or pause Raw force-displacement path, speed segments, sensor location, fixture state Process / controls Machine movement may include system deflection.
Peak force Maximum force outside the validated window Peak and position, sensor range, calibration, recipe Process quality A normal peak does not approve the full stroke or retention.
Endpoint Normal command but questionable seating Part-datum depth, shoulder seating, permitted-damage inspection Inspection / assembly Machine endpoint cannot establish finished dimensions or sealing.
Function / retention Service risk despite dimensional and curve acceptance Specified retention, push-out, operation, or relevant functional test and conditions Product design / quality One test does not cover all temperatures, life, or batches.
Traceability Result cannot be linked to its part or revision Sample ID, drawing, recipe, sizes, curve, function result, decision owner and time Quality systems / production Complete records cannot make an incorrect design valid.

Common failure modes: a normal trace can leave a question open

Hypothetical trial scenario: steel shafts enter aluminum housings with peak force and machine end points within the project’s existing windows. The product engineer notices that the required retention result is missing. In this example, the trace isn’t treated as a failed joint, but it is no substitute for the absent test. Each sample ID is linked to four limits, the measurement state, fixture checks and complete curve. Inspection records depth relative to the part datum. The responsible team performs the application-required retention or functional test and evaluates the result using the criteria defined for the project. An assembly trace can be provided to support acceptance once the relationship to the relevant defect is validated. That relationship has not been established by the missing record in this teaching example.

Promess engineering manager John Lytle’s 2024 article, “How to Evaluate a Press-Fit Curve,” provides insight on establishing a baseline by using a known-good component or a set of acceptable components. Once those samples are confirmed against the required joint tests, their curves can be used to set limits on production. Averaging an unverified batch doesn’t verify that the joints of the batch are acceptable.

Initial resistance may suggest misalignment or a surface issue; easily damaged parts should be inspected after pressing. A looser trace may suggest a changed interface; however, it isn’t proof of root cause. SIMITCH’s published trial guidance calls for sample validation before release.

Production wants fewer stops. Quality needs evidence about missed defects and false rejects. Finance needs trial, scrap, rework, and downtime costs from the same records. Before buying more capacity, compare press drive options against the process requirements; monitoring can also be applied to other press types.

Prepare a tolerance-led servo press trial

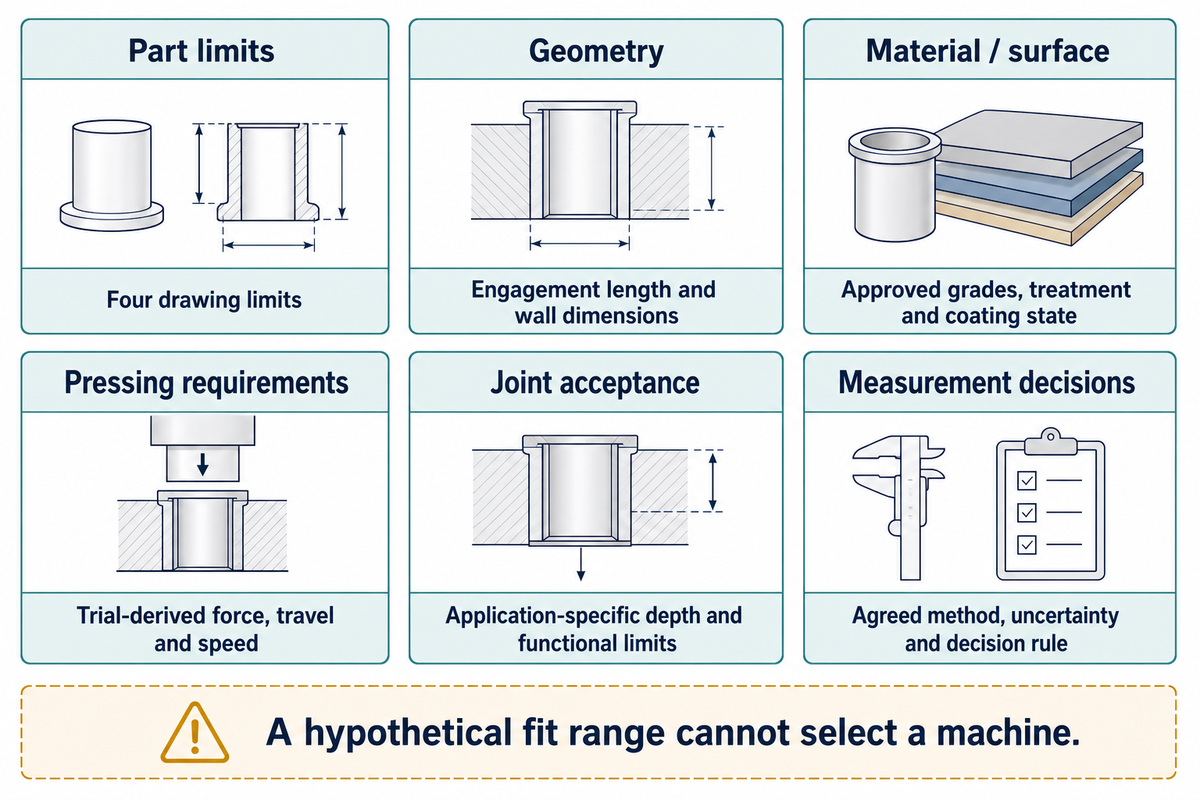

Six trial inputs separate drawing limits, material and geometry, trial requirements, joint acceptance and measurement.

A written acceptance plan and a set of controlled part requirements are a good way to start a useful servo press trial. Send the supplier the dimensional limits, material condition, geometry, and measurement records with representative part samples. Agreement should be reached regarding which tests establish joint function, and which records establish process control prior to selecting equipment or negotiating production acceptance.

The servo press RFQ checklist is available to assist in organizing a quotation package. Blank fields in the checklist should be completed; unassigned fields should be identified and assigned to the responsible engineer.

Quotation inputs: replace open fields with approved application values
Parameter Recommended range Why it matters How to verify
Part limits Four drawing limits in mm or in Defines permitted pairings Design: signed revision and worksheet
Geometry Engagement length and wall dimensions in mm Defines support and compliance Design / tooling: part drawing
Material / surface Approved grades, treatment, coating state Changes deformation and interface behavior Quality: material and process records
Pressing requirements Trial-derived force in kN, travel in mm, speed in mm/s Bounds equipment selection Supplier / process: recorded trials
Joint acceptance Application-specific depth and functional limits Defines acceptable output Product engineering: approved test plan
Measurement decisions Agreed method, uncertainty, and decision rule Prevents conflicting dispositions Customer / supplier quality: written agreement

ASME’s decision-rule guidance supports the measurement agreement but isn’t a basis for an entire machine-acceptance procedure. Choose sample coverage according to dimensional variation, known defects, and application criticality; no fixed sample count proves every process.

Isolate tooling, metrology, sample trials and integration in the quote to allow finance to assess the scope. An arbor press or hydraulic system may be suited to the job; servo control requires its own business and technical case. Preliminary BP sizing may help in discussing scope after required inputs are known.

A 10–30 μm hypothetical fit range can’t select a machine. Trials must establish the relevant force, travel, and measurement requirements. Review manufacturability with the supplier before purchase, then price the evidence needed to achieve acceptance alongside the equipment that will assemble the parts.

Frequently asked questions

What tolerances are needed for push fits?

A push fit intended to slide into place needs clearance suited to its function, rather than an assumed interference value.

Clarify whether “push” means free sliding, accurate location, or a retained component installed by hand. Those requirements can lead to different fit tolerances. Specify both mating limits and check the least available clearance under the relevant conditions. Surface condition and geometric alignment still matter when parts must move freely. Hand effort alone can’t define the permitted interval or prove repeatable assembly.

Can you give me an example of a transition fit in engineering?

A hypothetical shaft of 10.000–10.010 mm paired with a hole of 10.005–10.015 mm permits both clearance and interference.

Minimum interference is 10.000 − 10.015 = −0.015 mm, or −15 μm. Maximum interference is 10.010 − 10.005 = +0.005 mm, or +5 μm. Because the interval crosses zero, the permitted pairings include both dimensional outcomes. A production plan must accommodate that variation. These invented limits illustrate classification only; they don’t identify a standard class or approve a specific application.

How to find press fit/ slip fit for non standard size parts?

Start with the governing standard’s applicable nominal-size interval, then document achievable limits and the required joint function.

A nonstandard nominal size doesn’t remove the need for explicit upper and lower limits. Have design and manufacturing confirm the proposed tolerances against available processes, inspection capability, and the selected product guidance. If a standard-table choice is unsuitable, state the approved limits directly. Keep the measurement state and acceptance rule with the specification so a supplier can evaluate the complete requirement.

Can press fit tolerance be adjusted?

Yes, through an approved change to component limits or manufacturing processes followed by suitable verification.

Review machining and coating changes against joint function. Increasing press force doesn’t revise the permitted dimensions. Record the new drawing revision and repeat the affected validation before release.

How to design a press fit that must be repeatedly disassembled and reassembled?

Specify the intended removal cycles and evaluate the interface after removal before relying on the original retention performance again.

Repeated separation can change surface condition or damage a component. Decide which parts may be reused, which require replacement, and how inspection establishes that distinction. The design owner should consider a removable retention arrangement if the service task requires frequent access. Reusing the original interference is a design decision that needs evidence for the intended duty.

Plan how to disassemble the joint without unacceptable damage and check the relevant function after reassembly. Shrink fits also require an approved thermal procedure. Don’t use a retaining compound such as Loctite to compensate for an unapproved dimensional change; its application and compatibility would require a separate design decision.

Submit the completed worksheet, samples of the records, and open acceptance questions to SIMITCH servo press systems for a scoped trial discussion. Ask the proposer to describe which requirements have been demonstrated and which requirements still need validation.

Hypothetical examples and scenarios are provided simply to illustrate. Standards support only their stated scope. SIMITCH equipment figures are the manufacturer’s statements and not customer production results or safe interference recommendations.

References & Sources

  1. ISO 286-2:2010, Introduction and Scope, International Organization for Standardization.
  2. Preferred Limits and Fits for Cylindrical Parts, American Society of Mechanical Engineers, B4.1.
  3. Stress distributions around the interference fit between a round pin and a perforated finite plate, Castagnetti and Dragoni, 2024; published by Springer Nature.
  4. Interference-Fit Life Factors for Roller Bearings, National Aeronautics and Space Administration, NASA/TM-2009-215285.
  5. Measurement Uncertainty, National Institute of Standards and Technology.
  6. Guideline for Decision Rules: Considering Measurement Uncertainty in Determining Conformance to Specifications, American Society of Mechanical Engineers, B89.7.3.1.
  7. 20 Degrees Celsius: A Short History of the Standard Reference Temperature for Industrial Dimensional Measurements, National Institute of Standards and Technology.
  8. How to Evaluate a Press-Fit Curve, John Lytle, ASSEMBLY, October 29, 2024.
]]> https://simitch.com/blog/press-fit-tolerance/feed/ 0 Top 20 Assembly Automation Companies for Different Production Needs https://simitch.com/blog/assembly-automation-companies/ https://simitch.com/blog/assembly-automation-companies/#respond Tue, 13 Oct 2026 04:38:35 +0000 https://simitch.com/?p=2738



20 Best Assembly Automation Companies: Supplier Guide


Last updated: October 2026

The best assembly automation companies depend on the job: SIMITCH for defined self-piercing riveting stations, WEBER for screwdriving, JR Automation for integrated lines, Mikron for scalable precision assembly, and Norwalt for continuous-motion machines. Start with your specific automation needs, then compare the supplier’s responsibility for feeding, tooling, inspection and integration.

Even without owning the rest of your production line, a supplier can build an excellent joining station. Another supplier can coordinate multiple machine builders but will need your part drawings and acceptance criteria to define the equipment. Across the automation industry, the useful comparison is the assembly result that each supplier can achieve, together with the work that’s outside their scope.

Quick Picks

Six quick picks match SPR, screwdriving, integrated lines, precision platforms, continuous motion and select-fit assembly to suppliers.
  • Best for a defined self-piercing riveting station: SIMITCH.
  • Best for automated screwdriving with feeding: WEBER.
  • Best for multi-process lines with third-party equipment: JR Automation.
  • Best for scalable precision assembly platforms: Mikron Automation.
  • Best for continuous-motion product assembly: Norwalt.
  • Best for measurement-led select-fit assembly: Edgewater Automation.

Disclosure: This guide is published by SIMITCH. We list ourselves first because this is our website, not because we claim to be the market leader. The other 19 manufacturers are grouped by what they’re best for, in no particular order within each group.

How We Selected These Assembly Automation Companies

A bounded station, configurable assembly platform and integrated line represent different delivery scopes, with overlapping supplier roles.

Company information was verified against official websites and public sources in October 2026. We selected companies that design, build or integrate equipment for discrete-part assembly, where we could identify products, processes or projects. The selection includes joining-station specialists and custom machine builders in North America, Europe and Asia. Software-only robotic process automation, building automation, directories and distributors, robot-only or feeder-only suppliers without published assembly systems were excluded. This isn’t an exhaustive market directory or an overall automation leader ranking by revenue, quality or delivery.

The 3-Scope Assembly Supplier Map identifies a bounded station, a configurable assembly platform, and an integrated line. These automation technologies overlap: a large system integrator can provide a single station, while a specialist supplier may supply modules to another integrator. Companies are grouped by a useful starting point for a buying conversation. A “Best for” label doesn’t mean the supplier always wins projects in the given category.

Names and dates also need a consistent basis. BBS’s combined brands receive one entry. Group roots, predecessor history and named-company formation dates are labeled where they differ from the age of a current division. Headquarters identifies the corporate or business-unit location shown by the source, rather than every available production site.

Assembly Automation Companies at a Glance

Station specialists focus on joining, platform builders combine repeatable architecture with tooling, and line integrators connect multiple processes.

Assembly automation companies provide different levels of the completed system. Station specialists concentrate on joining operations; platform builders use repeatable architecture with tooling; and line integrators align and integrate multiple processes. Scope out the differences before assessing the size of a company. The table summarizes what’s formally disclosed by the companies, with suggestions for procurement drawn from the publicly available offerings.

20 assembly automation companies: scope, strengths and buying considerations
No. Company Name Headquarters Founded Year Best For Brief Introduction Assembly Scope Key Advantages Potential Disadvantages Official Website
1 SIMITCH Taicang, China 2006 Defined SPR joining stations Joining-equipment manufacturer SPR gun, frame, rivet feeding and project interfaces Coordinated rivet detection and feeding Additional assembly processes require separate integration https://simitch.com/
2 WEBER Wolfratshausen, Germany 1956 Screwdriving with feeding Fastening-system specialist Screwdriving, joining, feed units and controls Vacuum access and automated tool-change options Part transfer remains a line-level work package https://www.weber-online.com/
3 DEPRAG Amberg, Germany 1931, DEPRAG formation Integrated screw assembly Fastening and custom-machine builder Screwdrivers, feeders and robot-guided assembly Process equipment and controls from one supplier Other processes need dedicated application engineering https://www.deprag.com/en/
4 Assembly & Automation Technology Chelmsford, USA Building machines since 1985 Small-part joining and inspection Standard and custom equipment builder Screwdriving, pin insertion, pressing and dispensing Named standard units plus custom medical systems Product changes affect tooling and vision setup https://www.assemblyandautomationtech.com/
5 JR Automation Holland, USA 1980 Multi-process integrated lines Hitachi group systems integrator Stations, modular platforms and complete assembly lines Feasibility work plus third-party machine integration Multiple equipment interfaces need coordinated ownership https://www.jrautomation.com/
6 ATS Cambridge, Canada 1978, company origin Industrial assembly and test programs Automation group with sector businesses Industrial and life-science assembly through different teams End-to-end systems with sector-specific engineering Division selection affects the delivery scope https://atsautomation.com/
7 BBS Automation Garching, Germany 2013, BBS origin Assembly, testing and molded-part handling Combined assembly-and-test group Assembly, winding, feeding, take-out and palletizing Former Kahle, teamtechnik and HEKUMA capabilities grouped Process specialty varies with the selected build site https://www.bbsautomation.com/en
8 PIA Automation Ningbo, China, group headquarters 2017, PIA Automation GmbH formation Electric-drive transmission assembly Custom production-system integrator Assembly, alignment, measurement and test Named BMW Steyr transmission project Variant flexibility is engineered for the parts family https://www.piagroup.com/en/
9 Mondragon Assembly Aretxabaleta, Spain 1977, parent cooperative Battery and photovoltaic equipment International production-line builder Battery pilot lines, packs and solar production equipment Production and engineering locations across several regions Different energy products need distinct process architectures https://www.mondragon-assembly.com/
10 MackSmaTec Marksuhl, Germany Not stated in reviewed company pages Wire embedding with assembly and inspection MACK Group custom-machine builder Assembly, robot applications, wire embedding and testing Mechanical build and software integration under one scope Application modules need product-specific configuration https://macksmatec.de/en
11 Comau Grugliasco, Turin, Italy 1973 Automotive production programs Industrial automation manufacturer and integrator Body-in-white, powertrain and battery assembly Assembly, welding and handling within automotive systems Body, powertrain and battery projects use different architectures https://www.comau.com/
12 Midwest Engineered Systems Waukesha, USA 1991 Robotic assembly around existing equipment Custom builder and robot integrator Pick, place, fasten, inspect, test and machine tending Existing plant equipment included in integration planning Retrofit scope extends beyond buying robot hardware https://www.mwes.com/
13 Mikron Automation Boudry, Switzerland 1908, Mikron Group roots Scalable precision assembly platforms Assembly-platform and custom-system builder Assembly and test for medical and industrial products Platform approach with international engineering locations Product tooling remains application-specific https://www.mikron.com/
14 IMA Automation Bologna, Italy 1961, IMA Group roots Medical assembly connected to packaging IMA Group automation division Medical devices, e-mobility and industrial assembly Named injector, inhaler and contact-lens applications Assembly-to-packaging responsibility needs a defined boundary https://imautomation.com/
15 Arthur G. Russell Bristol, USA 1945 Assembly that scales with demand Custom automated equipment builder Medical, pharmaceutical, consumer and industrial assembly Small-scale to high-volume system development Feeding capacity alone does not establish finished output https://arthurgrussell.com/
16 Norwalt Randolph, USA 1971 Continuous-motion and indexing machines Custom assembly and robotic-system builder Assembly, leak testing, welding, filling and inspection Several product operations combined in one machine New product geometry can require different tooling https://norwalt.com/
17 Edgewater Automation St. Joseph, USA 2001 Measurement-led select-fit assembly Assembly-and-test systems integrator Measurement, matching, pressing, joining and verification Metrology connected to part-selection decisions Component mating rules must be defined https://edgewaterautomation.com/
18 RNA Automation UK West Midlands, UK 1986, UK company Feeding integrated with component assembly Assembly builder and handling specialist Rotary indexing, flexible robotics and joining Feed presentation and assembly within one equipment offer Inspection scope varies by machine configuration https://www.rnaautomation.com/
19 SDC Concord, USA 1998 Indexed small-part assembly Custom builder with pre-engineered platforms Indexing rings, robotic tray handling and inspection Detailed circuit-breaker assembly example Incoming subassemblies may need separate manufacturing equipment https://sdcautomation.com/
20 AIR Silicon Valley Silicon Valley, USA, business unit 1983, Owens Design heritage Phased optical assembly scale-up AIR custom automation business Prototype equipment through production assembly systems Optical alignment, dispensing and testing in one example Emerging products may need a discovery phase https://www.owensdesign.com/

Each row describes a company-level starting point. For automation projects, a production line quotation still has to allocate the tooling, material handling systems, process equipment and control systems. An assembly-machine manufacturer can include all of those, or deliver one module for someone else to integrate. Our automated assembly line guide explains the relationship between stations and the overall sequence.

Specialist Joining and Assembly Stations

A SIMITCH SPR station requires coordinated rivet feeding and interfaces; additional handling and assembly need a separately defined integration scope.

A joining specialist can help determine how to perform an operation that’s already known to be difficult. Process automation provides a repeatable sequence of equipment. The supplier’s process knowledge may be embodied in an operator assisted station, a robotic cell or a larger line built by a different company. All four companies have distinct joining capabilities and a given part and joint should drive the assessment.

1. SIMITCH: Best for self-piercing riveting stations needing coordinated rivet feeding and project-defined line interfaces

Headquarters: Taicang, Jiangsu, China · Founded: 2006 · Type: joining-station specialist and joining-equipment manufacturer.

Official website: https://simitch.com/

Main products: Servo riveting systems with SPR guns, C-frames and dual-row automatic rivet feeding.

Notable capabilities: Rivet-in-place and process detection, anti-flip and centering functions, and stationary, robot-mounted or floor-standing configurations, according to SIMITCH’s product page.

Coordinating the rivet feed with the joining tool matters when a station must deliver the correct rivet to the joint and communicate its process status to the surrounding line. SIMITCH describes project-defined interfaces and application validation around the selected material stack and joint requirements, which makes it a relevant supplier for that bounded assembly task. The documented offer here is an SPR station; additional part handling and upstream or downstream assembly require a separately defined integration scope. The self-piercing riveting process guide provides background for buyers choosing the joining method before specifying the station.

2. WEBER: Best for automated screwdriving with coordinated feeding and process control

Headquarters: Wolfratshausen, Germany · Founded: 1956 · Type: screwdriving and joining-system manufacturer.

Official website: https://www.weber-online.com/

Main products: Automatic screwdriving systems, feeding equipment, joining systems and process controls.

Notable work: WEBER’s history describes vacuum screwdriving for difficult access and its SEV-P pick-and-place screwdriving unit with automated tool change.

WEBER brings the fastener feed, driving unit and process documentation into the same purchasing discussion. Robot screwdriving and multi-spindle arrangements give a machine builder different ways to place the process around the product, rather than treating the screwdriver as an isolated hand tool. Vacuum access is particularly relevant when part geometry limits a conventional nosepiece, while automatic tool change addresses a different need: moving between fastening tasks. A screwdriving package owns the fastening process; part transfer and unrelated assembly operations remain a separate line-integration work package.

3. DEPRAG: Best for screwdriving and feeding integrated into custom assembly equipment

Headquarters: Amberg, Germany · Founded: 1931, formation of DEPRAG · Type: screwdriving specialist and custom assembly-machine builder.

Official website: https://www.deprag.com/en/

Main products: Handheld and stationary screwdrivers, complete screwdriving systems, feeders and automation equipment.

Certifications / notable work: Its quality page lists ISO 9001 and ISO 14001 certificates and separate affiliate listings. ADAPTIVE DFS is its named system for flow-form screw assembly.

DEPRAG combines process equipment with feeding and controls, including robot-guided assembly using cobots and lightweight robots. That combination helps a buyer discuss how the fastener reaches the joint, how the tool works and how the resulting process data enters the automated system. Collaborative robots can carry a process tool, but the fastening sequence still needs the right feed and fixture arrangement. The main procurement boundary is the strong screwdriving and feeding focus: non-fastening operations require their own application-engineering work package.

4. Assembly & Automation Technology: Best for small-part assembly combining screwdriving, pin insertion and vision

Headquarters: Chelmsford, Massachusetts, USA · Founded: building machines since 1985, according to its website · Type: custom machine builder and standard-equipment manufacturer.

Official website: https://www.assemblyandautomationtech.com/

Main products: Automatic screwdrivers, pin inserters, stakers, presses, robotic systems and medical-device assembly machines.

Notable work: The S-250 screwdriver and PI-700 pin inserter sit alongside custom needle and medical-switch assembly systems.

A&AT is useful when several small-part operations must be brought together around a specific product. The company describes in-house machining, controls assembly and programming, with vision-guided inspection and robotic adhesive dispensing among its capabilities. A standard screwdriver or pin-insertion module can provide the process starting point, while custom tooling connects that operation to the product’s geometry. Because the machinery and trainable inspection are product-specific, a design change can become a tooling retrofit or vision-retraining decision rather than a simple setting adjustment.

Integrated Assembly and Test Lines

Integrated assembly projects combine feasibility work, own platforms, third-party equipment and transfers under defined interface and acceptance responsibilities.

Integrating assembly tasks, processes and equipment into a production sequence is the core of line integration. Buyers wishing to synchronize and integrate multiple processes should start here. These companies work across various industries, but their published examples differ, so different engineering teams and equipment architectures were utilized.

5. JR Automation: Best for multi-process assembly lines integrating third-party equipment

Headquarters: Holland, Michigan, USA · Founded: 1980 · Type: turnkey assembly-line integrator and custom machine builder within Hitachi.

Official website: https://www.jrautomation.com/

Main products: Operator-assisted stations, automated assembly lines and FlexChassis modular automation systems.

Notable capabilities: Feeding, riveting, screwdriving, pressing, welding and dispensing, supported by proofs of concept, feasibility studies, simulation and testing.

JR Automation describes both its own assembly platforms and integration of third-party equipment into a larger line. FlexChassis provides a modular starting architecture for high-volume assembly, while feasibility work addresses process questions before the entire machine sequence is committed. A buyer can therefore discuss the assembly result, including transfers between unlike equipment, instead of issuing unrelated station orders and solving the interfaces later. The tradeoff is coordination: where several equipment suppliers contribute, interface ownership and acceptance responsibilities must be allocated across the complete project.

6. ATS: Best for end-to-end industrial assembly and test programs

Headquarters: Cambridge, Ontario, Canada, corporate headquarters · Founded: 1978, company origin · Type: automation group with dedicated assembly and test businesses.

Official website: https://atsautomation.com/

Main products: Industrial assembly and testing systems, plus medical-device, diagnostic and pharmaceutical automation through its Life Sciences business.

Notable capability: ATS separates Industrial Automation and Life Sciences, giving buyers a sector-specific route into its engineering organization.

The group’s business structure matters more to a project than its overall size. Industrial applications include mobility, energy, electronics and consumer products, while Life Sciences handles a different set of device and diagnostic requirements. For integrated automation systems, ATS’s published history and company filing trace its machine-builder origin to 1978; that history gives context without defining the experience of every current business. Industrial and life-science work run through different businesses, so choosing that contracting team is a necessary part of defining the delivery scope.

7. BBS Automation: Best for assembly and test integrated with feeding and molding-side handling

Headquarters: Garching near Munich, Germany · Founded: 2013, BBS company origin · Type: assembly-and-test systems group within Dürr.

Official website: https://www.bbsautomation.com/en

Main products: Assembly and test lines, winding equipment, insertion and take-out technology, feeders and palletizing systems.

Notable development: BBS, Kahle, teamtechnik and HEKUMA have operated under the unified BBS Automation brand since June 2025, according to the group’s announcement.

BBS combines several process specialties that can sit around an assembly operation. Molded-part take-out and feeding address how parts arrive; winding, assembly and testing address what happens to them; palletizing handles the outgoing product. Its applications include mobility, life sciences and electronics. Delivery still depends on the selected build site and line configuration, because a combined portfolio spans several engineering specialties.

8. PIA Automation: Best for electric-drive transmission assembly with integrated measurement and testing

Headquarters: Ningbo, China, global group headquarters · Founded: 2017 refers to PIA Automation GmbH formation; predecessors have earlier histories · Type: custom production-system builder and assembly-line integrator.

Official website: https://www.piagroup.com/en/

Main products: Automated assembly, measurement and test systems for e-mobility components.

Certifications / notable work: The company website lists ISO 9001, ISO 14001 and VDA 6.4 certificates. PIA announced a transmission assembly contract for BMW Group’s Steyr plant.

The Steyr project describes automatic component alignment and the joining of transmission and motor, with assembly linked to measurement and testing. Precision alignment and bolting are concrete reasons to consider PIA for an electric-drive assembly application. The example also shows why a line specification has to describe the product variants and the relationship between subassemblies. Its flexible features were engineered around a defined transmission family and layout; they aren’t a general-purpose guarantee for unrelated products.

9. Mondragon Assembly: Best for battery and photovoltaic production equipment with international engineering coverage

Headquarters: Aretxabaleta, Spain · Founded: 1977, Spanish parent cooperative · Type: custom assembly-equipment builder and production-line integrator.

Official website: https://www.mondragon-assembly.com/

Main products: Battery pilot lines, cylindrical battery-pack solutions and photovoltaic production lines.

Certifications / notable capabilities: Its website lists ISO 9001, ISO 45001 and ISO 14001 certificate documents and presents an international network of production, engineering and service locations.

Mondragon’s published offer connects equipment design with production and installation. Battery pilot-line and cylindrical-pack examples give an energy-storage buyer a more specific starting point than a broad automation-services description, while photovoltaic equipment forms another established part of the portfolio. The group lists six production plants, a useful footprint when the build, installation and production teams operate in different regions. The main buying constraint is the process distinction between those products: solar-panel equipment and battery-pack equipment need different tooling and line architectures.

10. MackSmaTec: Best for custom assembly combining wire embedding, robotics and optical inspection

Headquarters: Marksuhl, Thuringia, Germany · Founded: not stated in the reviewed company pages · Type: custom machine and assembly-system builder within the MACK Group.

Official website: https://macksmatec.de/en

Main products: Customer-specific assembly systems, card and passport systems, OEM equipment and test systems.

Notable capabilities: MackSmaTec, formerly ruhlamat in Germany, describes automated 2D and 3D wire embedding, robot applications and inline optical inspection on its current website.

The Marksuhl business brings concept development, mechanical design, production and software integration into one equipment project. Wire embedding is a useful distinguishing process for a product that combines electrical function with a shaped component; inspection and robotic handling can form part of the surrounding assembly sequence. Its current portfolio also includes document-production systems, so the product family should lead the discussion. Those modules serve different applications, and a buyer needs a defined combination of process steps and acceptance requirements rather than a generic machine package.

11. Comau: Best for automotive body, powertrain and battery assembly lines

Headquarters: Grugliasco, Turin, Italy · Founded: 1973 · Type: industrial automation manufacturer and turnkey assembly-line integrator.

Official website: https://www.comau.com/

Main products: Body-in-white systems, powertrain assembly and test equipment, and battery module and pack production systems.

Notable work: Comau describes expanding Jeep Commander bodywork assembly so that the model could be produced in alternation with three existing models.

Comau is relevant when vehicle assembly involves several connected manufacturing operations. Its automotive portfolio combines spot and laser welding with handling, modular powertrain assembly and testing, and battery equipment for cylindrical, pouch and prismatic cells. The Jeep Commander example illustrates model integration within a bodywork production system rather than a standalone robot sale. The industrial robots used in body shops, powertrain lines and battery systems serve different architectures, so the process family must be fixed before comparing quotations.

12. Midwest Engineered Systems: Best for robotic parts assembly integrated with existing plant equipment

Headquarters: Waukesha, Wisconsin, USA · Founded: 1991 · Type: custom automation builder and robotic systems integrator.

Official website: https://www.mwes.com/

Main products: Automated parts-assembly systems, robotic cells and integration services.

Certifications / notable capabilities: MWES states that it’s an A3 Certified Robot Integrator. Its parts-assembly offer includes picking, placing, fastening, inspecting, testing and tending presses and ovens.

MWES is a useful candidate when a plant wants to add robotic automation around machinery already in production. Linking a handling robot to fastening and inspection requires attention to the whole sequence, including what happens at the existing machine. Its published scope includes that connection to plant infrastructure, which makes the equipment layout and present controls part of the buying discussion. The limitation is inherent to retrofit projects: integration engineering extends beyond the price of robot hardware and depends on the machines already installed.

Precision and High-Speed Assembly Systems

Mikron platforms still need product tooling, Norwalt product geometry may require tooling changes, and Edgewater select-fit assembly needs explicit pairing rules.

Different architectures and systems in assembly equipment are dictated by the type and frequency of part production. Differences in part alignment may dictate the type of equipment. Within this range of automation, systems for assembly applications range from a configurable and flexible platform to product-specific continuous-motion machines and development programs.

13. Mikron Automation: Best for scalable precision assembly platforms

Headquarters: Boudry, Switzerland · Founded: 1908 is the Mikron Group’s origin, rather than the Automation division’s founding date · Type: assembly-platform manufacturer and custom-system builder.

Official website: https://www.mikron.com/

Main products: Scalable customized assembly and test systems for medical devices, pharmaceuticals, automotive, electrical, industrial and consumer products.

Notable capability: Mikron Automation reports more than 4,500 installed assembly and test systems, with locations in Boudry, Denver, Singapore, Shanghai and Kaunas.

Mikron’s platform approach combines a repeatable machine foundation with engineering for the product’s assembly and test sequence. That’s useful when manufacturing companies want to plan a path between production volumes while keeping the underlying process requirements visible. International locations also provide several entry points for a project involving teams in different regions. Product tooling remains application-specific, however, so a scalable platform isn’t the same as a universal machine that accepts an unrelated part.

14. IMA Automation: Best for medical-device assembly connected to filling and packaging

Headquarters: Bologna, Italy · Founded: 1961 is the IMA Group parent’s origin · Type: IMA Group assembly-automation division and production-line builder.

Official website: https://imautomation.com/

Main products: Medical-device assembly platforms, electric-motor and battery assembly systems, and customized industrial assembly lines.

Notable applications: Its MED-TECH unit names drug-delivery injectors, inhalers, diagnostics, wearables and contact lenses in its published portfolio.

IMA’s organization separates MED-TECH, EV-TECH and AUTOMATION SYSTEMS. For medical-device buyers, the MED-TECH offer is relevant where assembly connects to filling, contact-lens processing or packaging, because a finished production sequence can extend beyond joining the device components. Its three units have different application responsibilities, so a complete medical line needs an agreed boundary between assembly and the downstream operations. That boundary affects which products and services belong in the initial equipment scope and which are provided by another part of the project.

15. Arthur G. Russell: Best for custom assembly programs that must scale with product demand

Headquarters: Bristol, Connecticut, USA · Founded: 1945 · Type: custom assembly-machine builder.

Official website: https://arthurgrussell.com/

Main products: Custom automated assembly machinery for medical devices, pharmaceuticals, consumer goods and industrial products.

Notable capabilities: AGR describes small-scale through high-volume assembly solutions, high-volume parts feeding, and remote monitoring and support services.

AGR is a useful candidate when the product’s production plan needs more than one volume stage. Its published range gives a buyer a way to discuss how the assembly process should develop as demand changes, rather than choosing equipment solely for the largest forecast. Parts feeding is a central capability because a joining or inspection station can’t maintain its sequence when incoming components are poorly presented. Feed capacity alone, however, doesn’t establish accepted finished-assembly output; the complete process and its quality checks determine that result.

16. Norwalt: Best for continuous-motion or indexing assembly with inspection and packaging operations

Headquarters: Randolph, New Jersey, USA · Founded: 1971 · Type: custom assembly-machine builder and robotic systems integrator.

Official website: https://norwalt.com/

Main products: Continuous-motion and indexing assembly machines, cap-closing and lining machines, inspection systems and robotic cells.

Notable capabilities: Its systems can combine assembly with leak testing, decorating, filling and several welding methods; published inspection options include 2D and 3D vision and laser inspection.

Norwalt’s offer is especially relevant to a product that repeats the same sequence at volume. Combining operations in one product-specific machine can reduce transfers between separate pieces of equipment and keep the inspection steps close to assembly. The continuous-motion or indexing choice follows the product and process, including whether the machine must weld, fill or test the part before it leaves. Product geometry is the main purchasing constraint: a different shape can need different tooling rather than a recipe-only change.

17. Edgewater Automation: Best for select-fit assembly driven by measurement and matching

Headquarters: St. Joseph, Michigan, USA · Founded: 2001 · Type: custom assembly-and-test equipment builder and integrator.

Official website: https://edgewaterautomation.com/

Main products: Automated assembly systems, precision test equipment, robotic joining cells and quality-verification systems.

Certifications / notable capabilities: Its published ISO 9001:2015 certificate covers the St. Joseph entity’s special-purpose-machine work. Select-fit assembly uses measurement methods including 3D laser scanning and optical inspection.

Edgewater connects metrology to the decision about which components should be assembled together. That approach is relevant when matching measured parts matters as much as pressing or joining them, and the company also describes torque analysis, robotic welding and servo, hydraulic or pneumatic pressing. The resulting level of precision depends on the measurement and mating logic built into the equipment. Nominal drawing tolerances alone don’t define those decisions; select-fit assembly needs explicit rules for pairing the components.

18. RNA Automation UK: Best for component assembly combining feeding, rotary indexing and flexible robotic handling

Headquarters: West Midlands, UK · Founded: 1986, RNA Automation Ltd in the UK · Type: custom component-assembly machine builder and feeding-and-handling specialist.

Official website: https://www.rnaautomation.com/

Main products: Standard and custom assembly machines, rotary indexing machines, FlexType P Assembly and automatic diaphragm-assembly systems.

Notable capabilities: Parts feeding and robotic pick-and-place are combined with pressing, screw assembly, welding, soldering or adhesive bonding.

RNA’s component-assembly offer reaches beyond the supply of a bowl feeder. Its published range includes a diaphragm assembly application and describes how feed presentation, joining, controls and output handling form an equipment sequence. That breadth is useful when a buyer wants the parts-handling system and the assembly process developed together, including for products in electronics, medical devices or food and beverage. Inspection is included on selected machine configurations, so the quotation must explicitly include the required cameras, sensors and test stations.

19. SDC: Best for small-part assembly using indexing rings, tray handling and robotic inspection

Headquarters: Concord, Ohio, USA · Founded: 1998 · Type: custom machine builder using pre-engineered automation platforms.

Official website: https://sdcautomation.com/

Main products: Custom assembly machines, SDC Indexing Ring platforms, tray handlers and servo pick-and-place units.

Notable work: A published circuit-breaker project combines a 30-position indexing ring with three FANUC SCARA robots and in-process inspection.

The circuit-breaker example shows the relationship between tray loading, component insertion and inspection within one assembly sequence. SDC uses pre-engineered building blocks around product-specific tooling, which gives a buyer a concrete architecture to discuss before every detail of the machine is drawn. Its company profile also describes in-house construction and customer-acceptance run-off. One process boundary is particularly useful: the machine receives a pre-made current-path subassembly from separate equipment, so that upstream fabrication is outside the illustrated assembly machine.

20. AIR Silicon Valley: Best for phased optical assembly for emerging products moving from prototype to volume

Headquarters: Silicon Valley, California, USA, business-unit location · Founded: 1983 refers to Owens Design heritage · Type: custom design-and-build business within Automated Industrial Robotics.

Official website: https://www.owensdesign.com/

Main products: Prototype equipment, custom factory automation and production equipment for high-technology products.

Notable work: Its published phased-automation case combines 24 robots with optical assembly, alignment, adhesive dispensing, inline rejection and functional testing.

AIR Silicon Valley, formerly Owens Design, is relevant when the manufacturing process develops alongside the product. The optical-product example describes a progression from benchtop equipment to lower-volume and then automated production, instead of assuming that the final line can be specified immediately. Inspection and functional testing remain part of the sequence as the equipment grows. Emerging products can require a discovery and proof-of-concept phase before production equipment cost and architecture are fixed.

How to Choose an Assembly Automation Company

Eight supplier checks cover parts, accepted output, feed presentation, scope ownership, acceptance evidence, safety, controls and commissioning support.

Across the automation market, consider an assembly automation provider by aligning the suggested machine with the part, process and production plan. The company name shortens the search; similar technical scopes permit comparison of quotations. Begin with the operation most uncertain, then decide who owns the equipment and the interfaces around it.

What should I consider when selecting an automation solution provider?

Give the same drawings, part variants and production requirements to the suppliers and evaluate the work listed in their proposals against your manufacturing needs. Different equipment such as a robot, fastening station and an accepted assembly line would require a different assessment. Eight checks narrow the request for factory automation solutions to determine what equipment is available to do the required work.

  1. Define the part and process. Supply drawings with tolerances, materials and the sequence of joining. Acceptance evidence for a pressing operation is different from that for a self-piercing rivet joint. Process monitoring should be related to the result needed from that joint, instead of being an isolated feature on a specification sheet.
  2. Accepted output and product mix. Efficient automation aims for a defined number of good assemblies per shift with planned variants. Speed of motion of the robot, the capacity of the feeder, and the number of stations in a system describe some of the components that define the output of a system. Total output of a system is governed by loading, joining, inspection, and rejection as well as changeover. Consider the complete-cycle basis when judging whether automation enhances accepted output.
  3. Feed presentation. State how the parts are presented, i.e. loose, in a tray, on a reel, etc. Consider access, orientation, and replenishment. Material handling experts may help resolve presentation problems prior to the downstream assembly station being starved for the correct components.
  4. Scope of ownership. For custom solutions, determine who owns fixtures, tooling, joining devices, inspection and control, and inter-station transport. A specialist may own the most complex operation while an integrator coordinates the wider line. This works well if the handover points are clearly defined to both parties.
  5. Acceptance evidence. Define the run conditions, product changes and rejection criteria. Agree the sample of parts to evaluate the machine. A demonstration may not correctly represent normal production. Importing a performance number from an unrelated customer case may be misleading.
  6. Applicable safety and quality scope. Assign responsibility for the machine and any robot cell. ISO 12100:2010 describes machinery risk assessment and risk reduction, while ISO 10218-2:2025 addresses industrial robot applications and cells. Check the actual entity, scope and validity of a supplier certificate once during qualification; a company quality certificate does not certify every delivered machine.
  7. Data interfaces and controls. Define the signals, product records and alarm responses needed by the surrounding line. Intelligent automation solutions are useful only if the controller can act on the corresponding measurement. Combining automation and digitalization still requires agreement on the named protocol and data fields for the project.
  8. Commissioning and Support. Take into account installation, spares, operator training and service/support coverage, along with the equipment. Current services and locations matter to a plant requiring support after commissioning. To improve their bottom line, buyers should separate included work from optional work so that the apparently cheaper proposal isn’t simply carrying less responsibility.

For industrial automation companies serving many industries, the named application project team is as important as the range of industries in the brochure. An aerospace project or a consumer product project may require a different application team. A buyer based in the United States may need a local commissioning team and service resources associated with the United States location. Coordinating a build in Europe with production in Asia may require a different commissioning team. The headquarters column doesn’t take the place of the delivery plan.

Is it better to automate all at once or implement in phases?

A phased approach is better when a project is still defining its process and/or demand and when interfaces are planned for future expansion. A complete-line project is more appropriate when the sequence is stable. Each approach has its own risks. Neither automatically gives better results. The project manager needs to decide which uncertainty is more important to resolve first.

AIR’s published example for optical-assembly demonstrates staged development, while JR shows both stations and integrated lines. These are alternative ways to allocate engineering effort. The hardest process can be addressed early by a joining specialist, and a line integrator can later connect that station to loading, inspection and downstream equipment. The station interface must withstand that handover.

Define before expansion: Identify part presentation, fixture references, cycle assumptions, pass/fail signals, and the owner of line control.

Don’t buy independent stations whose output, transfer height or data interface requires a redesign when the line is connected.

Fixed automation can suit a stable, repeated product sequence. Flexible robotic assembly can accommodate a different set of handling and changeover needs, but flexibility also needs tooling and a process plan. Our robotic assembly line guide explains how the robot fits into the wider equipment sequence.

Assembly line automation also has to connect to the upstream manufacturing process. CNC systems or molding machines may supply components without being part of the assembly purchase. Determine what arrives at the first station and what leaves the last one to decide how much of the factory automation systems project ought to be included in the initial order.

FAQ

Which is the best assembly automation company for my application?

The best fit is the company whose documented process and delivery scope match your parts.

A joining-station specialist can suit a defined riveting operation, while a line integrator can coordinate several processes and their interfaces. Use the comparison table to shortlist relevant builders, then compare their proposed tooling, feeding, inspection and commissioning responsibilities. Company size alone doesn’t establish application suitability, and one successful project doesn’t make every offered configuration equivalent. The proposed system must fit your product and production plan.

Who is the largest assembly automation company in the world?

The evidence used here does not establish a single comparable global size ranking.

Groups report revenue across different combinations of robots, software, packaging, services and assembly equipment, so group revenue doesn’t measure the assembly business alone. This list organizes suppliers by documented capability and application rather than claiming an overall size winner. For a large program, compare the contracting business, its delivery facilities and the specific scope it proposes. The largest organization isn’t automatically the most suitable builder for a bounded station.

What is the difference between an assembly machine manufacturer and a supplier?

A manufacturer designs or builds equipment; supplier is a broader commercial description.

The term supplier can include a distributor or an integrator, as well as the original machine builder. An integrator may build its own stations and combine third-party equipment into a line. Those roles overlap, so identify who owns machine design, tooling, controls, process acceptance and line integration before treating quotations as equivalent. A clear delivery boundary is more useful than choosing between labels on company websites.

How much does a custom automated assembly system cost?

Cost follows the processes and responsibilities included in the system.

The reviewed sources don’t establish a comparable price range. Ask suppliers to price the same part variants, feeding, tooling, inspection and acceptance scope, with commissioning and optional equipment identified separately. A station quote and a complete-line quote can’t be compared by headline price alone.

When is a specialist joining-station supplier the best fit?

A specialist fits a defined joining purchase with the surrounding responsibilities already allocated.

For SIMITCH, the relevant offer is a self-piercing riveting station with associated rivet feeding and project-defined interfaces. A buyer who also needs unrelated assembly operations should allocate that additional equipment and integration scope as part of the wider project.

Can robots be used for small-part assembly?

Yes, when the part presentation, tooling and process suit robotic assembly.

SDC’s circuit-breaker example and RNA’s component-assembly offer illustrate different applications. Robot motion capability alone doesn’t establish reliable feeding or an acceptable finished assembly. The fixture, joining operation and inspection sequence must work together at the required production conditions.

Shortlist the Supplier That Fits Your Assembly Scope

Send part drawings, joining requirements, material stack, product variants and surrounding line responsibilities for a SIMITCH SPR station enquiry.

For assembly, you need a supplier to take responsibility. You could choose from a fastening specialist, a precision platform builder or a line integrator. Fastening specialists and precision platform builders charge for different amounts of work, so you need to make a fair comparison. Look at a number of companies with published processes that are relevant to you, and compare proposals against the same requirements and parts.

For a defined self-piercing riveting application, SIMITCH’s servo riveting assembly systems provide the station, rivet-feeding and interface discussion route. The broader riveting equipment range helps identify the equipment family before the project is specified. Send the part drawings and joining requirements with the planned material stack, product variants and surrounding line responsibilities so the proposed station can be scoped around the application.

References & Sources

  1. ISO 12100:2010: machinery risk assessment and risk reduction International Organization for Standardization, public scope and current status.
  2. ISO 10218-2:2025: industrial robot applications and robot cells International Organization for Standardization, public scope and edition information.


]]> https://simitch.com/blog/assembly-automation-companies/feed/ 0 Top 20 Riveting Machine Manufacturers for Industrial Assembly https://simitch.com/blog/top-riveting-machine-manufacturers/ https://simitch.com/blog/top-riveting-machine-manufacturers/#respond Mon, 12 Oct 2026 06:39:06 +0000 https://simitch.com/?p=2724

Last updated: October 2026

The best riveting machine manufacturer for your project depends on the joining process and delivered scope. BalTec offers radial forming workstations, National Rivet builds small-rivet setting systems, and GESIPA provides automated blind riveting. Compare the complete assembly task: a forming head, a feeding system and a finished production station are different purchases.

Quick Picks

  • Best for application-engineered self-piercing riveting stations: SIMITCH.
  • Best for radial riveting workstations with rotary indexing and process control: BalTec.
  • Best for robotic riveting cells with part handling and vision confirmation: Stryver.
  • Best for small-rivet setting with automatic part and fastener feeding: National Rivet.
  • Best for automated blind riveting with WinTech setting-process monitoring: GESIPA.
  • Best for SAN2 blind-rivet automation with modular feeding and charging: Titgemeyer.

Disclosure: This guide is published by SIMITCH. We list ourselves first because this is our website, not because we claim to be the market leader. The other 19 manufacturers are grouped by what they’re best for, in no particular order within each group.

How We Selected These Riveting Machine Manufacturers

Selection includes built riveting systems for industrial assembly and excludes dealers and equipment listings.

We focused on companies that design and build riveting systems or supply complete riveting systems. Included were companies that published pictures or descriptions of built riveting systems or supplied equipment beyond just a loose fastener or a handheld rivet gun. Companies that traded, distributed, sourced, listed, or mediated equipment deals, directories, media websites, websites that offered used equipment, and dealers, weren’t included. Information was verified by cross checking with publicly available resources and company websites in October 2026.

This shortlist covers activities described as industrial component assembly; dedicated airframe drilling-and-riveting cells are outside the scope of the shortlist. Best for labels are editorial application matches based on published equipment, and aren’t the results of comparative machine tests. Potential Disadvantages describes limitations of the project fit/configuration, not defects. A manufacturer of riveting heads and a custom station builder can both qualify, with different responsibilities identified below.

20 Riveting Machine Manufacturers Compared by Process and Scope

Read the 20-supplier table by joint, riveting process and delivery scope: forming head, feeder or finished station.

The 20-Supplier Process-and-Scope Map differentiates the riveting process from the equipment delivered. Begin with the joint and workpiece, then compare suppliers within the relevant group. Row numbers are reading aids. They don’t assess market share, machine performance or the quality of one supplier against another.

20-Supplier Process-and-Scope Map
No. Company Name Headquarters Founded Year Best For Brief Introduction Riveting Process System Scope Key Advantages Potential Disadvantages Official Website
1 SIMITCH Taicang, Suzhou, China; manufacturing base 2006 Application-engineered self-piercing riveting stations Machine builder with elevator and rail-transit application equipment. Self-piercing riveting; servo assembly Machines and application stations Published servo power and dual-channel feeding configurations Same magazine setup cannot feed 3 mm and 5 mm rivets together simitch.com
2 TOX Weingarten, Germany 1978 Semi-hollow rivet automation sharing controls with other joining processes Joining-system producer with coordinated feeding and control modules. Semi-hollow punch riveting Frames, drives, feeders and controls MultiControl manages 8 feeders and 15 alternating joining tongs Described feeder flexibility applies to semi-hollow punch rivets tox.com
3 Atlas Copco / Henrob Nacka, Sweden; group headquarters 1873 Self-pierce joint development for mixed-material vehicle structures Group offering Henrob riveting equipment and joining elements. Self-pierce riveting Rivets, setters, feeders, frames and dies In-house rivet development and custom die/C-frame options Tooling package follows the selected material stack www.atlascopco.com
4 Böllhoff Bielefeld, Germany 1877 Published 80 kN electric self-pierce riveting with configurable feed architectures Fastening group producing the RIVSET equipment family. Self-pierce riveting Portable, stationary and automated systems Automation E electric drive; blow, magazine and tape feeding Tape Feed spool replacement is manual at the setting tool www.boellhoff.com
5 Stryver Trotwood, Ohio, USA Not publicly disclosed Robotic riveting cells with part handling and vision confirmation Custom machine builder integrating riveting into workpiece handling. Orbital and blind riveting Standalone stations and robotic cells Built cells combine part validation, feeding and data collection Custom cell scope is specific to the process and workpiece www.stryver.com
6 BalTec Pfäffikon, Switzerland 1968 Radial riveting workstations with rotary indexing and process control Riveting and forming specialist with multiple station formats. Radial and orbital forming Machines, indexing stations and workcells RNR indexing tables; ELECTRIC workcells with HPPi control RN drive package changes with the selected model baltec.com
7 Orbitform Jackson, Michigan, USA 1984 Combining standard forming powerheads with custom assembly automation Forming-equipment builder offering modular products and custom assembly. Orbital forming and fastening Powerheads, machines and assembly systems Solutions Lab plus controls, automation and material handling Powerhead supply differs from a complete automated assembly www.orbitform.com
8 AGME Eibar, Gipuzkoa, Spain 1948 Flexible riveting centers alongside radial and servo machine options Machine builder with standard, integrable and custom equipment. Radial riveting; servo-driven options Heads, machines and flexible centers Published history includes CNC riveting centers since 1980 Head units alone do not provide a complete station www.agme.net
9 FMW Friedrich Remshalden, Germany 1948 Custom CNC riveting and roll-forming assembly projects Riveting-equipment builder with laboratory and commissioning support. Riveting and roll-forming Base units, workstations and assembly systems Sample-riveting laboratory and CNC roll-forming machines Base-unit supply excludes the scope of a commissioned assembly system www.fmw-friedrich.de
10 Yoshikawa Shijonawate, Osaka, Japan 1950 Riveting-line projects combining material supply, forming and inspection Machine producer supplying riveting equipment and automated lines. Riveting with pneumatic, hydraulic or electric servo drives Machines, peripherals and production lines Material supply through riveting and product inspection Automated-line integration is separate from standard-machine supply riveting-mcn.co.jp/en
11 Guillemin Longvic, France 1911 Semi-automatic ladder assembly with riveting and expansion Riveting-machine builder with dedicated ladder equipment. Orbital, radial and impact riveting Standard machines and special assembly lines Ladder advance, riveting and expansion in one application range Ladder offer is semi-automatic; full-auto projects have separate scope www.guillemin.net
12 Taumel Patterson, New York, USA; operating location 1967 Opposed orbital heads for forming both ends of an axle Orbital forming-machine, head and tooling producer. Orbital forming Bench, pedestal and modular machines Modular units support opposing-head axle arrangements 1.00-inch maximum applies to solid mild steel on largest models www.taumel.com
13 DUNKES Kirchheim unter Teck, Germany; engineering/manufacturing location 1960 High-force wobble riveting with programmable position control Riveting-machine builder offering positioning and handling automation. Wobble and compression riveting Machines, indexing and carrier systems Programmable positioning; optional 3° tool inclination Published force limits differ between pneumatic and hydraulic drives www.dunkes.de
14 National Rivet Waupun, Wisconsin, USA Not publicly disclosed Small-rivet setting with automatic part and fastener feeding Manufacturer of fasteners, setting machines and custom systems. Rivet setting Single/dual-head machines and automation B/BA small-rivet machines; illustrated multi-setter indexed assembly B/BA envelope ends at 1/8-inch diameter by 3/8-inch length www.nationalrivet.com
15 Chicago Rivet Warrenville, Illinois, USA 1920 Impact riveting sourced with application-matched manufactured rivets Producer of fastening components and riveting machinery. Impact riveting Machines, tooling and automated assembly Machine and manufactured-rivet supply within one company Drive options do not change the documented impact process www.chicagorivet.com
16 HANG Göppingen, Germany 1869 Double riveting of ring-binder and lever-arch mechanisms Assembly-machine producer with dedicated fastening models. Single and double rivet setting Application-specific riveting machines 150-45 double machine has 40–240 mm adjustable rivet pitch Binder-series feeders are designed around a rivet shaft diameter www.hang.de
17 Huen Chen Taichung, Taiwan 1981 Lever-arch-file production with dedicated quadruple riveting equipment Processing-machine producer serving stationery and other assemblies. Rivet setting; separate orbital model Dedicated machines and production-line planning HC-13TR4 quadruple riveting for lever-arch files HC-13TR4 application is specific to lever-arch files www.rivetingmachine.com
18 GESIPA Mörfelden-Walldorf, Germany; published German address 1955 Automated blind riveting with WinTech setting-process monitoring Blind-riveting system and assembly-bench producer. Blind riveting Automatic systems, benches and robotic integration WinTech evaluates setting force and traction course Process monitoring alone does not establish joint strength or fatigue performance www.gesipausa.com
19 Titgemeyer Osnabrück, Germany 1901 SAN2 blind-rivet automation with modular feeding and charging Fastening manufacturer supplying modular automatic riveting systems. Blind riveting; separate rivet-nut system Supply, sorting, transport, charging and setting modules SAN architecture defines each stage of automatic fastener delivery Rivet nuts require SAN4 rather than the SAN2 blind-rivet type www.titgemeyer.com
20 STANLEY Engineered Fastening Not publicly disclosed Not publicly disclosed Automotive blind-rivet and sealing-plug installation using ABF-R Blind-fastening system manufacturer including POP and Avdel brands. Blind riveting and sealing-plug installation Semi-automated and automated fastening systems ABF-R installs blind rivets and Avseal sealing plugs SARF and ABF-R provide different levels of automation america.en.stanleyengineeredfastening.com

Year notes: 1873 refers to Atlas Copco Group, not the Henrob brand. BalTec was founded as MBO in 1968. Orbitform dates its standard-product activity to 1984. Chicago Rivet’s 1920 date describes business origins; its current corporation was incorporated in December 1927. Böllhoff’s 1877 origin predates its present riveting-system business. Location qualifications distinguish published operating bases from explicitly identified group headquarters.

Self-Piercing Riveting Systems and Custom Assembly Stations

SIMITCH self-piercing equipment example with material stack, die access and feeder choice as project inputs.

For sheet-metal stacks, self-piercing equipment combines the rivet with a supporting die and a setting system. Part access and material order shape the tooling package. This group also includes Stryver, whose published orbital and blind-riveting stations illustrate the separate task of integrating a process into automated assembly; its inclusion doesn’t imply self-piercing capability.

1. SIMITCH: Best for application-engineered self-piercing riveting stations

Headquarters: Taicang, Suzhou, China, published manufacturing base.
Official website: simitch.com
Founded: 2006.
Type: Machine and application-station manufacturer.

Main products: Self-piercing riveting machines, servo riveting assembly systems and application lines for elevator and rail-transit joints.
Notable equipment/process capability: SIMITCH publishes an 80 kN servo power unit with 200 mm effective stroke. Its separately described dual-channel servo feeder holds 2 × 35 rivets, or 70 rivets in total.

Suzhou Simitch Machinery Co., Ltd. presents self-piercing riveting stations around the assembly application, giving buyers a starting point for discussing the joint, part support and feeding arrangement together. In its servo equipment range, the published power-unit and feeder specifications describe distinct configurations rather than one universal machine. For mixed-size production, the practical limitation is that one magazine setup in the dual-channel feeder can’t supply 3 mm and 5 mm rivets simultaneously, so changeover or an alternative feeding arrangement becomes part of the equipment scope. Magazine capacity describes stored rivets and can’t establish completed parts per hour without the full handling and setting sequence.

2. TOX: Best for semi-hollow rivet automation sharing controls with other joining processes

Headquarters: Weingarten, Germany.
Official website: tox.com
Founded: 1978.
Type: Riveting-system manufacturer.

Main products: Multi Technology Platform riveting frames, ElectricDrive, Feeder, Loading Station and MultiControl.
Notable equipment/process capability: TOX states that MultiControl handles up to 8 feeders and 15 joining tongs in alternation on one robot.
Quality systems: Its headquarters page lists DIN EN ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 for the organization.

Shared controls make TOX relevant when riveting is one operation within a broader joining cell, with the feeder and loading station considered alongside the working frame. The published tong count describes alternating use on one robot, so it doesn’t represent fifteen simultaneous riveting operations or a production-rate promise. Although the feeder architecture accommodates semi-hollow punch rivets of different lengths, that flexibility belongs to the specified fastener family and doesn’t establish compatibility with arbitrary solid, blind or tubular rivets. Buyers comparing a complete cell with individual modules therefore need the chosen process and module list attached to the same proposal.

3. Atlas Copco / Henrob: Best for self-pierce joint development for mixed-material vehicle structures

Headquarters: Nacka, Sweden, Atlas Copco Group headquarters.
Official website: www.atlascopco.com
Founded: 1873, referring to Atlas Copco Group, not Henrob.
Type: Riveting-system and joining-element manufacturer.

Main products: Henrob self-pierce rivet setters, feeders, C-frames, rivets, studs and dies.
Notable equipment/process capability: Published joint-development work combines in-house rivet design with custom dies and setting systems for vehicle body and battery assemblies.

Henrob puts the joining element and the equipment in the same engineering discussion, a useful fit when a mixed-material vehicle structure needs a developed joint rather than a machine selected by force alone. Its published offering includes custom C-frames and die-change options, so the frame geometry and die arrangement can be considered with the actual vehicle assembly. The corresponding purchase boundary is that the rivet, die and setting system form an application-specific package: changing the selected material stack can change that package. A common group name across vehicle projects consequently says little about whether the tooling already chosen for one component will suit the next.

4. Böllhoff: Best for published 80 kN electric self-pierce riveting with configurable feed architectures

Headquarters: Bielefeld, Germany.
Official website: www.boellhoff.com
Founded: 1877, with origins in hardware trading.
Type: Fastening and riveting-system manufacturer.

Main products: RIVSET Portable C, Classic, Automation E, feeders and die changers.
Notable equipment/process capability: RIVSET Automation E has an electrically controlled 80 kN drive; the range includes blow, magazine and tape feeding.
Quality systems: Its quality page lists DIN EN ISO 9001:2015 for Wilhelm Böllhoff GmbH & Co. KG, Germany.

Böllhoff documents RIVSET use in Audi Q7 production in Bratislava, providing a named automotive application alongside its equipment descriptions. The feed choices make the range relevant where the route from rivet storage to the setting head is a major layout decision, rather than an accessory selected after the cell is designed. With RIVSET Tape Feed, however, rivet spools require manual replacement at the setting tool, so operator access and replenishment belong in the production plan. The 80 kN figure identifies Automation E’s drive and doesn’t express the strength of every joint produced by the wider RIVSET family.

5. Stryver: Best for robotic riveting cells with part handling and vision confirmation

Headquarters: Trotwood, Ohio, USA.
Official website: www.stryver.com
Founded: Not publicly disclosed.
Type: Custom station builder and robot-system integrator.

Main products: Standalone orbital and blind-riveting stations and robotic riveting cells.
Notable equipment/process capability: Published built systems include bowl-fed rivets, automated stamping loading and unloading, part validation, data collection and vision confirmation.

Stryver describes a built arrangement in which the robot holds the workpiece during riveting, making the handling sequence part of the joining solution. That example is useful for a buyer whose difficulty is presenting a component to the tool, removing it and recording the operation, rather than choosing a riveting head in isolation. Its offer is a custom-designed station or robotic cell for a particular process and workpiece, so the documented arrangement is a starting point for project scoping rather than a standard cell that automatically fits another part. The value of that role lies in coordinating the complete task; it doesn’t establish that Stryver manufactures every proprietary riveting head installed inside its systems.

Orbital and Radial Riveting Machine Manufacturers

Orbital and radial riveting form existing rivet ends; drive type and head-versus-station scope are separate choices.

Orbital and radial machine manufacturers specialize in forming an existing rivet or component end. Their equipment contains integrable heads and guarded indexing stations. An orbital or radial riveting machine describes the forming motion. Pneumatic, hydraulic and electric servo describe the drive, which is selected separately.

What are the differences between orbital riveting and radial riveting?

The type of riveting using an inclined forming tool that moves around the rivet axis is called Orbital riveting and the type of riveting using a repeating radial tool path is called Radial riveting. Both types progressively form an existing rivet or component end. For self-piercing riveting, a rivet is driven into a material stack against a die. Choose the forming motion first and then the drive and support.

Compare the actual tool motion and part support when a catalogue uses a broad name such as spin riveting machine. Metallic material behavior, access around the head and the required finished shape determine the useful process range. Servo control doesn’t itself identify that process. Our riveting process guide explains the joining sequence in more detail; the profiles below focus on equipment and supply scope.

6. BalTec: Best for radial riveting workstations with rotary indexing and process control

Headquarters: Pfäffikon, Switzerland.
Official website: baltec.com
Founded: 1968, as MBO.
Type: Riveting-machine and forming-system manufacturer.

Main products: RN radial machines, RNS pedestal stations, RNR rotary-index stations, RND double machines, ELECTRIC workcells and TN orbital riveting machines.
Notable equipment/process capability: RNR stations have a six-position rotary indexing table, optionally four, and a safety enclosure; ELECTRIC workcells include HPPi process control.
Quality systems: The Swiss headquarters page lists SN EN ISO 9001:2015 and links its certificate.

BalTec offers a clear choice between a riveting machine and a station that includes workpiece indexing, which matters when loading and forming must occupy different positions. An RNR arrangement addresses the handling sequence, while the ELECTRIC range makes process control a stated part of the workcell offering. Drive selection remains model-specific: RN 081–331 use pneumatic packages, whereas RN 381 uses hydraulics, so the utilities and equipment arrangement follow the chosen machine. Those distinctions give the buyer more useful comparison points than treating all radial machines in the catalogue as one interchangeable specification.

7. Orbitform: Best for combining standard forming powerheads with custom assembly automation

Headquarters: Jackson, Michigan, USA.
Official website: www.orbitform.com
Founded: 1984 is the company’s published starting date for standard products.
Type: Forming-machine and custom assembly-system manufacturer.

Main products: Standard powerheads and machines, fastening and forming systems, custom automation and material handling.
Notable equipment/process capability: Orbitform describes design and manufacture of modular equipment and custom assembly solutions from concept through installation, with a Solutions Lab, process intelligence and control.

The combination suits projects that begin with a forming operation but still need a practical way to move and locate the workpiece around it. Orbitform’s Solutions Lab places process development alongside the machine offering, while its automation and handling work provides a route to a broader assembly project. A standard modular powerhead is nevertheless a different purchase from an installed automated assembly: fixtures, handling and controls belong to the larger delivery scope. Keeping that distinction visible prevents a low head-only quotation from being compared directly with a proposal that includes the surrounding production equipment and its installation.

8. AGME: Best for flexible riveting centers alongside radial and servo machine options

Headquarters: Eibar, Gipuzkoa, Spain.
Official website: www.agme.net
Founded: 1948.
Type: Riveting-machine and custom assembly-equipment manufacturer.

Main products: Radial riveting machines, head units, special machines, servo riveting machines, flexible riveting centers and controls.
Notable equipment/process capability: The published portfolio spans standalone machines, heads for integration and flexible centers.
Published history: AGME dates its first riveting machine to 1969 and its first CNC riveting center to 1980; it also reports renewal of ISO 9001 quality certificates and references EFQM in its management model.

AGME is relevant when the purchasing decision sits between a dedicated machine and a center that brings several riveting positions into one equipment package. Its history gives specific context for that offering, rather than relying only on the age of the company as evidence of machine experience. The integration boundary is the head unit: a head alone leaves the workholding, access, controls and guarding of the finished station to the larger project. Selecting among those formats is therefore a decision about who delivers the surrounding assembly equipment as well as how the rivet is formed.

9. FMW Friedrich: Best for custom CNC riveting and roll-forming assembly projects

Headquarters: Remshalden, Germany.
Official website: www.fmw-friedrich.de
Founded: 1948.
Type: Riveting-machine and custom assembly-system manufacturer.

Main products: Base machines and units, bench-top workstations, CNC machines and assembly systems.
Notable equipment/process capability: FMW Friedrich offers a riveting laboratory for sample work, CNC roll-forming machines and support spanning initial testing and prototyping through mass production and commissioning.

A riveting laboratory is useful when the component’s formed end needs to be developed before the production arrangement is settled, because the part and forming task can lead the equipment discussion. FMW Friedrich connects that sample-work capability with CNC machines and assembly projects, giving the buyer a route from a proposed joint to a defined production installation. Its custom CNC and assembly systems remain project-specific, however, and the scope of a base unit differs from that of a commissioned system. For procurement, the meaningful comparison is consequently between matching packages of forming equipment, workpiece handling and commissioning, with the selected component geometry held constant across proposals.

10. Yoshikawa: Best for riveting-line projects combining material supply, forming and inspection

Headquarters: Shijonawate, Osaka, Japan.
Official website: riveting-mcn.co.jp/en
Founded: 1950; incorporated in March 1960.
Type: Riveting-machine and automated-line manufacturer.

Main products: Pneumatic riveting machines, hydraulic machines, electric servo riveting equipment, peripherals, special machines and automated lines.
Notable equipment/process capability: Yoshikawa describes support for material supply, setting, riveting and product inspection, with in-house riveting-tool expertise.
Quality history: The company records obtaining ISO 9001 in 2000 and ISO 14001 in 2006; these are historical milestones.

Yoshikawa’s published development history runs from impact machines to pneumatic, hydraulic and electric servo equipment, which places several drive options within a long-running riveting business. For a production-line project, the relevant advantage is the stated coverage of material supply and inspection around the forming operation, rather than the drive label alone. Special-machine and automated-line integration are separate from purchasing a standard riveting machine, so a machine-only offer doesn’t describe the complete route taken by the part. A buyer seeking line responsibility has a specific reason to discuss that wider scope with the company.

11. Guillemin: Best for semi-automatic ladder assembly with riveting and expansion

Headquarters: Longvic, France.
Official website: www.guillemin.net
Founded: 1911.
Type: Riveting-machine and automated assembly-system manufacturer.

Main products: Orbital and radial riveters, impact riveters, rolling machines, ladder assembly machines and special assembly lines.
Notable equipment/process capability: Its ladder systems combine ladder advance, riveting and expansion. Guillemin states that its standard riveting range includes over 80 models, with pneumatic, hydraulic or electric drives.

The ladder application gives a buyer something more concrete than a general claim of custom engineering: the workpiece movement and two joining actions are already described within one equipment family. That can help frame the production discussion around ladder geometry and the operator’s part in the sequence, rather than an isolated riveting stroke. The published ladder offer is semi-automatic, while fully automatic special machines belong to a different project scope, so the latter’s automation level can’t be assumed for the former. Across the broader catalogue, the number of models describes available variety and doesn’t establish a single accuracy or output specification shared by all machines.

12. Taumel: Best for opposed orbital heads for forming both ends of an axle

Headquarters: Patterson, New York, USA, published operating location.
Official website: www.taumel.com
Founded: 1967.
Type: Orbital forming-machine, head and tooling manufacturer.

Main products: Bench, pedestal-mounted and modular orbital forming machines.
Notable equipment/process capability: Modular units can work from any angle; controls range from manual stroke, pressure and time adjustment to PLC control. Taumel illustrates paired units forming both ends of an axle.

Opposed forming heads address a particular part-handling problem: an axle has two ends to form, and the equipment arrangement can be developed around both ends of an axle together. The modular format makes Taumel relevant to that geometry, with control selection becoming another part of the machine specification. Its stated 1.00-inch maximum heading diameter applies to solid mild steel on the largest models, so it can’t be transferred to a smaller machine or a different material as a general capacity figure. For buyers comparing orbital forming equipment, that material-and-model qualification is essential to understanding what the published number actually describes.

13. DUNKES: Best for high-force wobble riveting with programmable position control

Headquarters: Kirchheim unter Teck, Germany, engineering and manufacturing location.
Official website: www.dunkes.de
Founded: 1960.
Type: Riveting-machine and automated-system manufacturer.

Main products: Wobble and compression riveting machines, rotary-index automation and workpiece-carrier systems.
Notable equipment/process capability: Programmable cross tables and height positioning address two-dimensional patterns at differing heights; force-displacement control is optional. A standard 5° tool inclination can be replaced by a 3° option for difficult access near interfering contours.

DUNKES brings positioning and tool clearance into the equipment selection, which is useful when several riveting locations sit at different heights or near obstructions. The inclination option concerns access around the forming tool and doesn’t by itself remove the need for suitable workpiece support. Its stated force envelope is drive-specific, with pneumatic riveting up to 40 kN and hydraulic riveting up to 100 kN, so a hydraulic riveting machine and a pneumatic model can’t share an assumed maximum. That distinction helps keep available forming force separate from the component’s required joint strength and from the positioning features of the station.

Impact Riveting and Automatic Rivet Setting Machines

Rivet installation includes supply, part handling and setting; head speed alone does not define finished-part output.

Within the fastener industry, rivet setting machines install fasteners into assemblies. Machinery used to manufacture loose rivets serves a different purpose. The following companies supply the equipment for installation, with some also manufacturing fasteners. Impact riveting machines and automatic-feed arrangements impact the setting and/or presentation of rivets as well as the manner in which workpieces are positioned for loading and unloading.

14. National Rivet: Best for small-rivet setting with automatic part and fastener feeding

Headquarters: Waupun, Wisconsin, USA.
Official website: www.nationalrivet.com
Founded: Not publicly disclosed.
Type: Rivet and rivet-setting-machine manufacturer.

Main products: Electromechanical and pneumatic single/dual-head rivet setters, Models B and BA, Model 1600 and custom systems.
Notable equipment/process capability: Models B and BA handle small precision parts and set rivets as small as 0.028-inch diameter and up to 1/8-inch diameter by 3/8-inch length.

National Rivet & Manufacturing Co. publishes a 10-Unit Rivet Machine that combines three Model B setters, a twelve-fixture index table, feeders and part-presence sensing. The example makes its small-rivet capability relevant to a complete assembly task, with fixture movement and fastener supply considered alongside the setting heads. Models B and BA still have a defined small-rivet envelope, ending at the stated 1/8-inch diameter by 3/8-inch length, so a larger fastener moves the purchase beyond that particular machine choice. The illustrated indexed system also shows why the rate at which a head can set rivets is only one input to the output of a finished-part assembly system.

15. Chicago Rivet: Best for impact riveting sourced with application-matched manufactured rivets

Headquarters: Warrenville, Illinois, USA.
Official website: www.chicagorivet.com
Founded: Business origins in 1920; the current corporation was incorporated in December 1927, according to its 2025 SEC annual filing.
Type: Fastener and impact riveting-machine manufacturer.

Main products: Standard and custom impact riveting machinery, rivets, cold-formed parts, tooling and automated assembly systems.
Notable equipment/process capability: Mechanical, pneumatic and hydraulic machine options with application-specific accessories.
Quality systems: The fastener division states ISO 9001 and IATF 16949 certification; that scope belongs to the division.

Chicago Rivet supplies setting machines and fastening components for applications including cutlery, appliance and medical products, bringing both sides of the fastener-and-machine discussion into one business. Its cold forming work concerns manufactured components and shouldn’t be confused with a separate guarantee about the riveting machine’s finished joint. The documented equipment range uses impact riveting, so changing between mechanical, pneumatic and hydraulic drives doesn’t convert that range into an orbital or self-piercing process. That process boundary makes Chicago a relevant candidate once impact setting fits the assembly, before the drive and accessories are selected.

16. HANG: Best for double riveting of ring-binder and lever-arch mechanisms

Headquarters: Göppingen, Germany.
Official website: www.hang.de
Founded: 1869.
Type: Riveting and assembly-machine manufacturer.

Main products: 105-15 single and 105-40 double machines, 150-series binder machines, the 150-45 high-force double machine and 162-55 knife riveters.
Notable equipment/process capability: HANG’s 150-45 has two electromagnetic sorting devices and handwheel adjustment of rivet pitch from 40 to 240 mm.

Dedicated binder and lever-arch machinery gives HANG a specific place in this list: the purchasing task concerns repeated attachment positions on a defined product family. The separately specified 150-45 adds a published pitch range, giving buyers a concrete dimension to compare with their part rather than assuming all double riveting machines have the same spacing. In the 150-series binder equipment, feeders are designed around a rivet shaft diameter, so a change of fastener can affect the feeding package as well as the setting tools. The binder-series description and the 150-45 figures therefore belong to their respective products.

17. Huen Chen: Best for lever-arch-file production with dedicated quadruple riveting equipment

Headquarters: Taichung, Taiwan.
Official website: www.rivetingmachine.com
Founded: Established in 1981, according to the company’s published self-description.
Type: Processing and riveting-machine manufacturer.

Main products: HC-13TR4 quadruple riveting machine, HC-8RPA two-stroke machine, HC-01 pneumatic orbital riveting machine and custom equipment.
Notable equipment/process capability: Huen Chen offers dedicated stationery and luggage processing machines together with complete production-line planning.

The HC-13TR4 is explicitly presented for quadruple riveting of lever-arch files, giving stationery-equipment buyers a named application to discuss rather than a generic automatic riveter. A separate HC-01 orbital model shows that the catalogue includes another forming route, but it doesn’t change the purpose of the file-production machine. The HC-13TR4 remains dedicated to its part family, so a different assembly calls for another machine or a custom configuration rather than an assumed change of settings. Huen Chen’s wider line-planning offer is relevant when the riveting operation must fit surrounding processing steps, while the product names alone establish neither completed-part output nor a guaranteed cycle time.

Automated Blind-Rivet Systems

Blind-rivet automation separates supply, transport, head charging and setting; monitoring does not prove joint strength.

Automating blind riveting for assemblies installed from one side requires extra equipment to supply rivets to the head and manage the setting sequence. So, a fully automatic system is more than a power tool. Rivet-nut installation is an adjacent fastening task and has its own system options.

18. GESIPA: Best for automated blind riveting with WinTech setting-process monitoring

Headquarters: Mörfelden-Walldorf, Germany, published German address.
Official website: www.gesipausa.com
Founded: 1955.
Type: Blind-riveting-system and assembly-station manufacturer.

Main products: Fully automatic blind-rivet processing systems, customer-specific tools, assembly benches and WinTech monitoring.
Notable equipment/process capability: GESIPA makes its own assembly benches and systems and integrates automatic blind-rivet setting into robotic systems; WinTech evaluates setting force and traction course.
Quality systems: Its quality page describes management based on DIN EN ISO 9001 and IATF 16949, with site-specific certificate scope.

GESIPA combines the setting operation with a choice of assembly-bench or robotic integration, which makes it relevant when the buyer wants a production arrangement around the blind rivet. WinTech adds a published way to assess the setting process, so monitored installation can be discussed as part of the equipment scope. That monitoring doesn’t by itself establish destructive joint strength or fatigue performance, and the mechanical performance of the assembly remains a separate engineering result. For projects built around process records, the distinction keeps traceable installation evidence from being mistaken for a load-test result.

19. Titgemeyer: Best for SAN2 blind-rivet automation with modular feeding and charging

Headquarters: Osnabrück, Germany.
Official website: www.titgemeyer.com
Founded: 1901.
Type: Fastening and automated riveting-system manufacturer.

Main products: SAN modular automatic riveting systems, including SAN2 for blind rivets and SAN4 for rivet nuts.
Notable equipment/process capability: SAN modules cover supply, sorting, transport, head charging and setting. Published specifications include hydraulic/pneumatic drive, 24 VDC and Modbus RTU/Ethernet interfaces.

Titgemeyer makes the sequence of automatic fastener delivery visible, which helps a project team describe where the riveting system ends and the surrounding machine begins. Supply and sorting are distinct from transporting the rivet and charging the head, so each stage can be represented in the proposed station layout instead of disappearing inside a general automation label. The type boundary is specific: SAN2 is the blind-rivet system, while rivet-nut installation uses SAN4, and those roles should remain separate in a mixed-fastener project. That division is useful when the line needs both operations, because an adjacent function in the catalogue isn’t automatically part of the chosen blind-rivet package.

20. STANLEY Engineered Fastening: Best for automotive blind-rivet and sealing-plug installation using ABF-R

Headquarters: Not publicly disclosed for the operating scope covered here.
Official website: america.en.stanleyengineeredfastening.com
Founded: Not publicly disclosed for this operating scope.
Type: Blind-fastening-system manufacturer.

Main products: SARF semi-automated rivet fastening, ABF-R blind riveting and Avseal installation; ABF-N is the adjacent rivet-nut automation system.
Notable equipment/process capability: ABF-R installs blind rivets and Avseal sealing plugs for automotive production lines, while SARF uses pneumatic automatic feeding.

STANLEY Engineered Fastening offers a specific automation route for vehicle assemblies that need blind-rivet or sealing-plug installation, rather than relying solely on its catalogue of handheld tools. POP and Avdel sit within this single group entry, so their names don’t create extra manufacturers in the comparison. The practical distinction is between SARF’s semi-automated arrangement and ABF-R’s automated route: a shared supplier doesn’t make their station automation levels interchangeable. For a proposal covering both rivets and another fastener type, the separately named ABF-N also keeps rivet-nut scope visible rather than allowing it to be assumed from the ABF-R description.

How to Choose a Riveting Machine Manufacturer

Six ordered quotation inputs cover material stack, access, fastener, full cycle, acceptance records and installed scope.

A similar quotation begins with the same joint, and the same delivered task. Simply stating maximum force doesn’t define completed-joint strength. Also, the cycle time of a head doesn’t include the time for what a station must do around it. Give each shortlisted supplier the following six inputs:

  1. Material Stack: State each layer’s grade, thickness, coating and order. Describe the joint behavior required. Different stacks can change the rivet and die package, so a demonstration on unrelated sheet metal doesn’t settle suitability.
  2. Part and fixture geometry: Access to both sides of the part must be shown in the supplied drawing. Throat depth and space must be shown for the nose and feed tubes. Space after fixture installation is more critical than the nominal stroke. Obstructions can change the station layout and increase tooling cost.
  3. Fastener and changeover: Specify diameter, length, head and material, including any custom rivets. List change parts and demonstrate replenishment and jam recovery. SIMITCH’s 3 mm/5 mm magazine boundary shows how mixed sizes can change the feed arrangement.
  4. Finished-part cycle: Define part-to-part time including loading, clamping, every rivet, positioning, feeding and unloading. An electronics component and a large frame can demand very different handling. Our assembly-line integration guide develops this complete-task view.
  5. Acceptance and Records: Distinguish between process-curve decisions and shear, peel and fatigue tests. Define traceability fields and part-handling procedures for rejects. This demonstrates what monitored fastening proves and what requires a joint test; it provides reliability discussions with a basis for evaluation.
  6. Installed scope: Itemize power, compressed air, fixtures, guarding, controls, installation, training and wear parts. A pneumatic riveter alone and a guarded station have different delivery responsibilities. A brake-shoe application, for example, requires application-specific tooling and support and can’t be assumed to be compatible with an industrial rivet setter.

Confirm the proposed configuration with actual joint samples and confirm certificate holder, site and scope once during supplier qualification. Assign machine risk assessment and integration responsibility using the applicable standards: ISO 12100:2010 addresses machinery risk assessment and risk reduction; ISO 10218-2:2025 covers industrial robot applications and robot cells. Neither citation certifies a listed supplier. For aerospace component work, include the project’s own qualification requirements.

Is riveting stronger than welding?

Neither process is universally stronger. Strength depends on the materials, joint geometry and service loads; therefore a fair comparison levels those conditions. Riveted joints and welded joints may respond differently to shear, peel, fatigue and corrosion. The forming force on a riveting machine doesn’t determine the load that the completed assembly can resist in service.

Ask the engineer responsible for the assembly to define the relevant mechanical tests and acceptance limits. A satisfactory force-displacement curve can support process control but can’t replace those tests. Compare joining methods for the actual component before comparing machine specifications. The broader metal joining methods guide discusses the process choices without treating one method as the universal winner.

Frequently Asked Questions

Which riveting machine manufacturer is best for my application?

The best fit follows your joint and required equipment scope. BalTec is relevant to radial workstations, National Rivet to small-rivet installation, and GESIPA to automated blind riveting with process monitoring. For application-engineered self-piercing stations, SIMITCH belongs on the shortlist. Use the comparison table to narrow the process first, then compare suppliers against the same workpiece drawings and complete station responsibilities.

How much does a riveting machine cost?

Riveting machine cost depends on the supplied configuration, and these public sources don’t provide a reliable like-for-like price range. A head, a bench machine and an integrated cell include different work. Feeding, fixtures, changeover tooling, monitoring and installation can all alter the quotation. Request those items separately so that a lower machine price isn’t mistaken for a lower installed project cost.

How many types of riveting machines are there?

There’s no single useful count because machines can be classified along different axes. Common process groups include orbital, radial, impact or compression setting, self-piercing and blind riveting. Pneumatic, hydraulic and servo describe drives rather than additional riveting techniques that can simply be added to that list. Riveters also differ by delivery format: an integrable head, a standalone machine or an automated station may use the same forming process.

Who is the largest riveting machine manufacturer in the world?

A largest manufacturer can’t be established from these sources using a consistent riveting-equipment revenue or shipment measure. Group revenue covers other products and isn’t a substitute for riveting-machine sales. This list therefore compares published equipment scope rather than company size.

What is the difference between a riveting machine manufacturer and a supplier?

A manufacturer designs or makes equipment; a supplier may resell it. Custom builders can also design and manufacture stations around purchased heads. The selection method above includes those builders when a complete system is documented, while excluding businesses that only distribute equipment.

Is a used riveting machine the best option for a low-volume project?

A used machine can suit a low-volume project when its working range, condition and available tooling match the assembly. Low annual volume alone doesn’t make it the best purchase. A used riveter that needs new feeders, fixtures, controls or guarding may involve a much broader project than its advertised machine description suggests, even before installation is considered.

Compare the remaining equipment scope with a new-machine proposal: usable tools, supported fastener sizes, spare parts, maintenance needs and responsibility for adapting the station. Include the time and work needed to customize it for your component. The useful decision is about the complete working installation, not merely the price of the machine on offer.

Conclusion: Build a Process-Matched Supplier Shortlist

Send joint drawings, material stack and finished-part cycle for a process-matched shortlist; SIMITCH equipment example.

The best shortlist starts with the assembly. This includes self-piercing joint development, orbital or radial forming, automatic rivet setting, or monitored blind riveting. Once a decision has been made as to which party must provide the head, feeding and complete station, drawings of the joints, material stack, rivet specification, access envelope, annual volume and a finished-part cycle target must be submitted.

Explore SIMITCH’s riveting equipment to identify the relevant product family. Include your expected delivery date when you send your assembly drawings for a technical assessment or quotation. Those inputs give the supplier a defined production task to price.

References & Sources

Manufacturer profiles draw on the official company and product pages identified in their website rows. The following sources support the corporate-date and standards references in the text.

  1. Chicago Rivet & Machine Co., 2025 Form 10-K, Item 1, U.S. Securities and Exchange Commission: current corporation’s December 1927 incorporation.
  2. ISO 12100:2010, Safety of machinery, International Organization for Standardization: risk assessment and risk reduction.
  3. ISO 10218-2:2025, Robotics: Safety requirements, Part 2, International Organization for Standardization: industrial robot applications and robot cells.
]]> https://simitch.com/blog/top-riveting-machine-manufacturers/feed/ 0 How to Diagnose Self-Piercing Riveting Defects and Verify the Fix https://simitch.com/blog/self-piercing-riveting-defects/ https://simitch.com/blog/self-piercing-riveting-defects/#respond Mon, 12 Oct 2026 04:45:49 +0000 https://simitch.com/?p=2710

Self piercing riveting defects are usually diagnosed from related evidence. Preserve the original joint, record the top and die-side symptoms, and verify the material and tooling identities. Inspect a traceable section, compare the force-displacement signal, change one bounded variable, and confirm repeatability. Anomalies such as raised heads and cracked buttons provide clues. None identifies one universal cause by itself.

Seven checks before changing the setup

  1. Preserve the baseline joint and its production identity.
  2. Record the rivet-head and die-side condition.
  3. Separate an as-formed defect from a test failure.
  4. Verify sheet, adhesive, rivet, die, fixture, and recipe revisions.
  5. Measure a traceable section without treating one cut as the whole joint.
  6. Reconcile physical evidence with the process trace.
  7. Run a controlled trial and release only against project criteria.

Identify the Defect Before Changing the Riveting Process

Three-view SPR defect triage links top, die-side and section observations to bounded next checks.

Start with containment and observation. At least one suspect joint is kept unaltered and machine records and an approved baseline are kept. The identity of the part, lot, station, tool set, recipe change, time, operator, or automatic cycle is labeled. If a joint has been sectioned or tested mechanically, say so. Lack of original evidence is an unknown, not a pass.

Why are my rivets not working?

Self-piercing rivets can appear wrong because of a change in the material stack, mismatch of the rivet or die, shifted sheets, unsupported joint, or process drifting. Symptoms can be a result of different root causes. Inspect both sides of the joint, check the actual inputs, and choose the next check that separates competing explanations before changing force or position.

3-View Defect Triage Map
Defect type or observed condition Competing explanations Discriminating evidence Bounded next step
Raised or recessed rivet head Stack thickness, rivet length, material response, die support, or endpoint drift Actual stack and rivet identity, head-height record, section, and trace comparison Restore the verified input or trial one documented change
Little flare or inadequate interlock Rivet, die, stack order, material condition, or incomplete formation Centered section with dimensions tied to sample identity Review the stack-specific rivet and die combination
Bottom breakthrough Wrong combination, lower-sheet variation, alignment, or excessive penetration Die-side photo, section, lower-sheet identity, alignment, and recipe Contain the lot and reproduce under controlled inputs
Crack around the button Local ductility, stack order, die geometry, coating, adhesive condition, or alignment Crack location, material certificate, section, and named mechanical test Escalate to the design authority; do not accept from appearance alone
Asymmetric button or section Punch-die misalignment, sheet movement, fixture support, or off-center cut Alignment check plus a documented section plane Separate fixture alignment from section-preparation error
Missing or double rivet Feed, presence sensing, sequence, or recovery logic Part record, rivet count, feed history, and station event log Contain affected parts and verify the detection sequence
Rivet buckling Rivet selection, support, alignment, stack response, or instability during setting Section orientation, rivet identity, tool alignment, and trace shape Recheck the approved combination and alignment before a new setting
Sheet gap or separation Part fit, fixture support, adhesive distribution, debris, or local distortion Pre-join fit record, fixture check, section, and adhesive evidence if used Correct the verified fit or support condition, then retrial
Trace drift with no sampled visual defect Material or tool drift, sensor change, wrong baseline, or missed physical condition Reference identity, sensor check, wider physical sample, and section evidence Hold release until the signal change is explained

The Welding Institute’s guidance asks inspectors to check both the top sheet and the die side, including head seating, cracks, distortion, button symmetry, and visible rivet tail. Its detailed-examination guidance adds section symmetry, head gap, interlock, and remaining material around the rivet foot. These checks address different questions. A visual inspection of the joint is a quick check; a section gives a more clear picture of the local internal geometry of the joint.


Decision rule

If there’s physical damage, contain and investigate it. If only the signal differs, confirm the part, material, tool, and recipe identities before interpreting the curve. If the original condition wasn’t recorded, label the cause unresolved instead of reconstructing certainty from a fracture surface.

Separate SPR Formation Defects From Test Failures

Before-load joint evidence and after-load failure modes must stay linked to the named SPR test.

An as-formed defect exists when the rivet is set. A mechanical test failure describes how a defined specimen behaved under a named loading condition. The two may be related, but aren’t the same. For a self-piercing riveted coupon, the observed failure mode and joint strength are tied to named loading conditions. A pull-out, sheet tear, shear fracture, or rivet fracture after loading doesn’t necessarily indicate that the original joint had a defective head seat, poor interlock, or a cracked button. Conversely, an attractive section doesn’t necessarily mean that a specified strength or fatigue limit was achieved.

What failures can occur in riveted joints?

Joint type and loading condition affect whether a tested joint fails by rivet pull-out, sheet tearing near the rivet, rivet fracture, or a mixed mode. Record the specimen geometry, load direction, rate or cycle conditions, and the joint’s condition before loading. The observed mode belongs to that test and shouldn’t be considered for a universal defect list.

ISO 12996:2013, confirmed current in 2024, specifies specimen geometry and a tensile-shear test procedure for single mechanical joints. Its public scope supports consistent tensile testing, not a universal visual or cross-section acceptance limit. A separate study of button cracks in defined AA6008T61-bottom-layer stacks reported different effects in a lap shear test and T-peel tests. That result means the loading mode must stay visible in the report. It does not authorize button cracks.


When the before-load record is missing: classify the specimen as unable to distinguish formation condition from test-induced damage. Use another traceable sample or repeat the controlled test. Do not justify equipment replacement from one post-test photograph.

Check Sheet Materials Before Choosing a Rivet and Die

SPR trials must lock sheets, rivet, die, fixture, recipe and adhesive identities before adjustment.

A drifting input can make a previously stable recipe invalid. Check the approved setup for actual sheet grade, temper, thickness, layer order, coating, surface condition, adhesive system, rivet designation, die designation, fixture support, and recipe revision against the actual. Purchase descriptions such as “aluminum sheet” or “same rivet diameter” are too broad for a defect analysis.

Input Evidence to compare Why it matters
Sheets Grade, temper, actual thickness, layer order, coating, and lot Changes piercing, flow, support, and cracking behavior
Rivet Full designation, length, hardness family, coating, and lot Diameter alone does not define formation behavior
Die and tooling Profile, depth, revision, condition, alignment, and maintenance record Controls support and lower-sheet material flow
Fixture and recipe Part support, clamp condition, endpoint, and trace reference Separates process drift from input mismatch
Adhesive, if specified Identity, storage and age, application, coverage, gap, and cure record Hybrid-joint performance can depend strongly on the adhesive system

A peer-reviewed study on defined EN AW-6016 lap joints showed that the adhesive layer in the riv-bonded specimens influenced both the static and fatigue behavior of the specimens. Representative rivet sections in that study had acceptable geometry. The reduced-bonding-area tests were performed on adhesive-bonded specimens. Therefore, they don’t provide evidence of inadequate adhesive coverage for a riv-bonded joint. The diagnostic lesson remains bounded: a hybrid joint needs adhesive and cure evidence as well as rivet and die records. Similar care is warranted when dissimilar materials alter the behaviour of the rivet during formation.

Don’t use a universal rivet-length formula or “add more force” as the first correction. Don’t infer aluminium rivets merely because the sheets are aluminium. Self-piercing riveting is a different method of joining from conventional riveting and resistance spot welding, so their repair rules and process settings can’t be interchanged. Simitch’s specific SPR equipment guidance also advises that more force isn’t always the right solution. An assessment of the actual stack and tooling should be performed rather than using a setting from a visually similar assembly.

Read the Section Without Turning a Study Into an Acceptance Limit

SPR sections show local geometry, but one cut and published dimensions are not universal limits.

A section may show rivet-head position, symmetry, interlock, remaining bottom material, local gaps, and cracking near the rivet foot. The quality of self-piercing formation is thus assessed based on multiple features rather than one dimension. Include the sample identity, preparation method, section plane, magnification, measurement definitions, and project limits next to the image. Without those data, an impressive polished photo may look convincing, yet may not allow an audit.

The section plane matters. A 2021 computed-tomography study intentionally damaged SPR samples and took multiple radial sections. In its example of rivets, the defect was present in only a portion of the radial views. The authors noted that a conventional macro-section might miss that defect. This doesn’t establish a general miss rate or a required number of cuts. It shows that a single clean cut may be local evidence.

Record

Sample, stack, rivet, die, recipe, section plane, image scale, and measurement definition.

Compare

Project-specific limits and a validated baseline for the same joint configuration.

Escalate

Asymmetry, cracking, breakthrough, missing coverage, or conflict with trace and test evidence.

Published interlock values are especially vulnerable to misinterpretation. A primary study of a defined AA5754 H111 stack reported that in its dataset, conventional linear X and Y interlocks didn’t accurately predict peel strength, whereas a volume-based interlock performed better. This study doesn’t negate the measurement of sections. It limits the scope of the general claim: A familiar dimension may be important for formation control without being a universal strength predictor.

Compare Inspection Methods for SPR Joint Quality

Compare the SPR process trace with exterior, section and named-test evidence for the same sample.

There are many methods of inspection that assess different things. A top view or a die-side view can assess exterior conditions, and a section can assess local internal geometry. A mechanical test evaluates a specified specimen under a specified load. In most cases, the relevant question isn’t which method is the best, but which hypothesis can the next method be used to answer?

Trace and Physical-Evidence Disagreement Matrix
Trace Physical sample Interpretation Action
Within validated band Meets project criteria Evidence agrees for this sample and configuration Continue defined sampling and trace retention
Within validated band Damaged or outside criteria Possible blind spot, wrong reference, wrong sample link, or condition outside the validated fault set Contain; verify identity; challenge the monitoring plan
Outside band Meets sampled physical criteria Process changed, measurement drifted, or the sample missed the affected condition Hold release until the deviation is explained
Outside band Outside criteria Agreement on abnormality, not yet on root cause Use section, input, fixture, and maintenance evidence to isolate cause

The Welding Institute describes force-displacement monitoring as comparison with a benchmark curve and an experimentally established tolerance band. It warns the correlation between monitor indications and joint properties may not be precise. A green curve therefore cannot overrule a cracked or penetrated sample. The related guide on force-displacement curve validation describes how a reference window is qualified.

Keep the reference trace, material revision, tool revision, recipe, and physical sample ID together. This arrangement prevents comparing a suspect joint to an incorrect baseline and accepting a monitoring package without evaluating the faults that are of concern in the actual stack.

Verify the Fix Before Releasing Recurring Faults

Verify an SPR fix with a stated hypothesis, locked inputs, repeated observations and reaction plan.

A corrective trial must be guided by a stated hypothesis. Preserve the baseline, change one bounded input where practical, and keep all other recorded conditions stable. Compare the same levels of observation before and after the condition is varied. If there’s a need to change a number of variables together, then treat the result as a new setup that needs qualification rather than proof of one root cause. The broader guide to planning an SPR joint trial covers feasibility and qualification inputs.

Illustrative field Baseline Controlled trial Release evidence
Hypothesis Bottom-sheet crack linked to an input mismatch Restore the approved input identity Named owner accepts against project criteria
Locked inputs Recorded stack, fixture, die, rivet, and recipe Same except for the declared change Revision-controlled trial sheet
Observations Top, die-side, trace, section, and named test Same observation set and definitions Repeatability across relevant variation
Reaction plan Contain on physical damage or trace deviation Stop if a new defect appears Documented limits, escalation, and sample retention

A single successful demonstration doesn’t assure absence of a repeated fault. Challenge the revised configuration against the defined scope of variation of the material, tools, processes and environment. Review the first production evidence after release. If the defect returns, compare identities and wear state before increasing force or widening the monitoring band.

Use numerical analysis when the mechanism remains unclear

Finite element modeling and other numerical analyses can compare mechanisms such as local material flow, residual stress distribution, or sensitivity to geometry. The failure model, contact definition, material data, and boundary conditions, however, must be calibrated against physical specimens from the relevant configuration. Simulation can support a trial and minimize the number of blind changes. It can’t perform any self-validation nor replace mandatory joint tests.

Request a Traceable SPR Defect Trial From the Supplier

A traceable SPR supplier trial links the stack, defect, trace, trial changes and acceptance owner.

Send the supplier a defect handoff that describes the symptom and associates it to the actual assembly. Provide the stack drawing, material certificates or exact designations, layer order, coating and adhesive information, rivet and die information, defect and section images, trace files, fixturing information, rate and throughput data, and the project acceptance owner. Also ask the supplier what evidence they’ll return for each trial modification.

Defect-to-Trial Evidence Sheet

Observed condition
Bottom-sheet crack at the die-side button, tied to sample and lot
Questions to isolate
Material identity, stack order, adhesive state, rivet/die match, alignment, support, and recipe
Supplier records
Input list, revision-controlled settings, force-displacement trace, exterior images, documented section, and named test result
Unknown branch
If the original joint or trace is missing, root cause remains unresolved
Release authority
Customer design or quality owner named in the trial plan

To summarize, for a constrained equipment discussion, tie the required sample records to the operations actually provided. Simitch describes servo riveting assembly systems for SPR joining and system integration. Capability questions can be answered with the first-party documents. The first-party page does not independently prove defect-elimination rates, process universal windows, or customer acceptance for a particular customer stack.

Normalize defect-investigation scope before comparing price

Each supplier must price the same work. The American Society for Quality classifies quality costs as prevention, appraisal, internal and external failures. In the context of an SPR investigation, this analysis would determine which supplier performs sample preparation and inspection, sectioning, trace analysis, controlled experiments, reporting, retesting, scrap analysis, and handling of rejected products. This is a scope framework, not an SPR price model.

APQC’s public historical review identifies that organizations use different quality costs definitions and calculations. That supports a practical caution: two totals aren’t comparable until their components and calculation boundaries are equal. Don’t use the APQC participant counts as a current SPR benchmark. Request actual commercial figures from each supplier.

Scope item Included? Required return Buyer owner
Sample preparation and sectioning Supplier states quantity and method Traceable images and measurements Quality engineering
Controlled equipment trial Supplier states variables and repetitions Revision-controlled trial report and traces Process engineering
Retest and reject handling Included or separately priced Disposition, limitations, and follow-up terms Procurement and quality

Send Simitch the stack drawing, defect photos, linked trace, required throughput, and acceptance owner. Ask for a trial plan that preserves sample identity and returns section, signal, and revision evidence for the actual joint.

Discuss Your SPR Defect Trial

What Changing Materials Mean for Defect Monitoring

New sheet, stack, adhesive, coating or tooling requires SPR monitoring revalidation on representative parts.

New sheet grades, different stack up materials, adhesives and coatings can change both joint design and the signal used to monitor it. In an aluminium car body, a change from one sheet family to another can shift the validated process response. Carbon fiber reinforced layers and other dissimilar stacks can add different forms of damage and raise support questions. It’s required to validate the reference band and visual classes with representative parts after a material or tooling change.

Peer-reviewed studies published in 2023 and 2024 describe image- and attention-based methods for SPR defect detection. One open study built its reported results from a constructed image dataset, including augmentation. These defect-detection methods can support quality control research for new joining techniques, but a monitoring model trained on one image set or stack should not be treated as validated for another. The studies do not establish universal production accuracy, internal-geometry coverage, or transfer to a purchased cell without representative validation.


Published patent applications also describe artificial-intelligence approaches to joint-quality prediction. While a patent records a proposed invention and ownership claim, it is not proof of deployment, certification, or production performance. Keep research direction separate from the acceptance evidence required for the customer’s materials and process.

Frequently Asked Questions

Which self-piercing riveting defects are common?

Commonly investigated conditions in a joint include raised or recessed rivet heads, inadequate flares or interlocks, bottom sheet breakthrough, button or sheet cracking and asymmetric formation. Rivet buckling and missing or double rivets are also conditions that can be investigated. The applicable drawing, joint specification, and design authority decide acceptance. A generic defect list doesn’t define allowable limits.

How are self-piercing riveting defects measured?

Use linked exterior observations, section measurements, process traces and required mechanical tests. Record the sample, stack, rivet, die, recipe, section plane, and measurement definition. Head position, interlock, remaining material and symmetry answer questions; named mechanical tests answer defined loading questions.

What self-piercing riveting defects are allowed?

Only the client specification, the authorized design or quality owner can define ‘allowed conditions’. Mechanisms and inspection methods are described in published studies, but their results and conclusions apply to the materials, geometries, tooling and loaded cases of the studies. An ‘auto pass’ signal for a machine can’t waive a crack or dimensional limitation in the approved conditions.

What are self-piercing rivets?

Self piercing rivets are semi-tubular fasteners that are driven through the upper sheets or plate into a supported lower sheet. The rivets pierce and flare in the stack to create interlock, typically without a preceding hole. Please refer to the broader self-piercing riveting process overview for general operating principles.

Can a defective SPR joint be repaired by riveting it again?

Don’t re-hit, add a rivet, enlarge a hole or substitute another joining method without an approved repair procedure. The defective joint must be retained, and the affected assembly must be identified first. Repair can alter load paths, edge distance, sheet damage, sealing and corrosion protection, and affect access for inspections. The Product Design Authority must define the repair method and evidence.

What does riveted joint mean?

A riveted joint uses one or more rivets to connect components mechanically. Conventional solid riveting, blind riveting, and self-piercing riveting form their joints differently. Their defect language and corrective actions can’t be exchanged without checking the process and product specification.

Why did defects return after a successful trial?

Compare the production material lot and thickness, coating or adhesive condition, rivet and die lots, tooling wear, alignment, fixture support, recipe revision, and monitor reference with the successful trial. The trial may also have missed normal variation. Use the retained baseline and reaction plan to identify which input changed before widening limits.

References and Sources

  1. A review of self-piercing riveting process, joint failure, and quality monitoring, Chinese Journal of Mechanical Engineering.
  2. Simple visual inspection of SPR joints, TWI.
  3. Detailed examination of an SPR joint, TWI.
  4. Monitoring the SPR process for quality assurance, TWI.
  5. ISO 12996:2013, Mechanical joining, destructive testing of joints, specimen dimensions and test procedure for tensile shear testing of single joints, ISO.
  6. Volumelock as a strength-prediction approach for a defined SPR dataset, open-access primary study.
  7. Automatic extraction of cross sections from CT data of mechanical joining elements, Discover Applied Sciences.
  8. Load-bearing capacities and fracture modes of SPR, adhesive-bonded, and riv-bonded aluminum joints.
  9. Cost of Quality, American Society for Quality.
  10. The Challenging Cost of Quality, APQC.

About Simitch: Established in 2006 in Taicang, Jiangsu, Simitch develops intelligent joining equipment and system-level solutions, including hydro-pneumatic boosters, precision servo pressing, clinching, riveting, SPAC, and SPR technologies. They serve the automotive components, energy storage batteries, solar PV, home appliances, and HVAC markets.

]]> https://simitch.com/blog/self-piercing-riveting-defects/feed/ 0 Top 20 Servo Press Manufacturers for Precision Assembly https://simitch.com/blog/top-servo-press-manufacturers/ https://simitch.com/blog/top-servo-press-manufacturers/#respond Fri, 09 Oct 2026 08:49:25 +0000 https://simitch.com/?p=2693

Last updated: October 2026

The best servo press manufacturer for precision assembly depends on the joint and the equipment you need. SCHMIDT publishes separate continuous-duty ratings, Promess offers monitored EMAP systems, and Festo supplies integration kits. SIMITCH builds BP-series assembly equipment. Compare the complete pressing cycle and supply scope before choosing a supplier.

A servo press machine can serve different purposes. It could act as an assembly tool, a metal-forming machine, or as a servo-hydraulic press for precision forming. This shortlist mainly deals with electric assembly and press-fit machines. These electric presses use servo motors to drive the pressing axis. It brings together dedicated press builders, monitored joining systems and integration kits, so the first comparison is what each company actually supplies.

Quick Picks

  • Best for explicit continuous-duty selection: SCHMIDT Technology.
  • Best for a broad monitored EMAP selection: Promess.
  • Best for compact electronics pressing kits: Festo.
  • Best for modular ElectricDrive integration: TOX PRESSOTECHNIK.
  • Best for actuator-to-turnkey purchasing choices: HyperCyl / Aries Engineering.
  • Best for reviewing SIMITCH’s 10–200 kN BP assembly range: SIMITCH.

Disclosure: This guide is published by SIMITCH. We list ourselves first because this is our website, not because we claim to be the market leader. The other 19 manufacturers are grouped by what they’re best for, in no particular order within each group.

How We Selected These Servo Press Manufacturers

Included products are assembly presses, joining modules and pressing kits, grouped by documented application fit.

We chose companies with a clearly identifiable electric assembly press, electromechanical joining module or integrated pressing-kit product line. Company information has been verified against official websites, product documentation and public company sources in October 2026. The list covers manufacturers in Europe, Asia and North America. Stamping-only suppliers, generic servo-drive vendors and servo-hydraulic forming lines outside this article’s assembly scope have been excluded, as well as trading companies, sourcing platforms, directories, media sites and used equipment dealers.

These are application-based groupings, not a ranking from common performance tests or market-share data. “Best for” identifies a documented product fit. Dates describe company origins unless a predecessor or later corporate formation is stated. Quality-system information remains attached to the company or named site that published it. For the publisher’s own equipment, the servo press systems page holds the current commercial offer.

Supplier Comparison at a Glance

Actuator, controlled joining module and complete workstation quotes include different equipment; compare named models.

Now we’ll look at the scope of supply column. An actuator, a controlled joining module, and a complete workstation can all be appropriate options, but their quotes include different equipment. Figures below point out specific products. The largest force in a family doesn’t belong to every model. Short limitations flag the main purchasing distinction, with the detail in each company profile.

Twenty electric assembly suppliers, grouped by documented supply scope
No. Company Name Headquarters Founded Year Best For Brief Introduction Supply Scope Key Advantages Potential Disadvantages Official Website
1 SIMITCH Taicang, Suzhou, China 2006 10–200 kN BP-series assembly integration BP bending-type precision assembly presses Workstation and joining-module manufacturer Six BP sizes; model-specific speed and power Stroke does not establish fixture clearance https://simitch.com/
2 Promess Brighton, Michigan, USA 1984 Wide force ranges EMAP electric assembly press Joining-module and workstation manufacturer 20 kN and 500 kN configurations documented Speed depends on selected force and stroke https://www.promessinc.com/
3 SCHMIDT Technology St. Georgen, Germany 1938 Explicit continuous-duty force selection ServoPress with PressControl Joining-module and workstation manufacturer Separate intermittent and continuous force ratings Peak force may be intermittent https://www.schmidttechnology.de/
4 Kistler Winterthur, Switzerland 1959 Force-monitored joining with pretested modules NCFE electromechanical joining systems Joining-module and workstation manufacturer NCFE 2–80 kN; pretested joining options Module alone is not a complete station https://www.kistler.com/
5 TOX PRESSOTECHNIK Weingarten, Germany 1978 Modular ElectricDrive integration ElectricDrive Core with PowerModule and EdgeUnit Joining-module and workstation manufacturer 10 kN and 25 kN PowerModule examples Drive package excludes the press frame https://tox.com/
6 Janome Hachioji, Tokyo, Japan 1921 Choosing unit or standalone electro-press formats JP Series5 and JP-S2 electro presses Joining-module and workstation manufacturer Standard and long-stroke JP5 variants Standard and long-stroke versions differ https://www.janome.co.jp/
7 CORETEC Soja, Okayama, Japan 1972 Integration with explicit normal-thrust ratings AC servo presses and assembly automation Joining-module and automation-station manufacturer Instantaneous and normal thrust shown separately The manufacturer’s normal thrust is lower than its instantaneous maximum https://www.coretec.co.jp/
8 IAI Shizuoka, Japan 1976 Actuator integration with rated-thrust detail RCS3-RA20R servo-press actuator Servo-press actuator manufacturer 25,902 N rated; 50,000 N maximum thrust Controller and machine integration remain necessary https://www.iai-robot.co.jp/
9 Bosch Rexroth Lohr am Main, Germany 2001 current company Configurable pressing kits with software Smart Function Kit Pressing Pressing-kit platform manufacturer Matched hardware/software; up to 70 kN Structure and sensor configuration affect included scope https://www.boschrexroth.com/
10 Festo Esslingen am Neckar, Germany 1925 Compact electronics pressing kits YJKP servo press kit Pressing-kit platform manufacturer 0.8–17 kN grades; calibrated full-scale accuracy Handling and workstation integration remain necessary https://www.festo.com/
11 Sinto Nagoya, Japan 1934 Press-fitting with workpiece handling Servo press machines and electric cylinders Joining-module and workstation manufacturer 30 kN automotive machine example Example ratings provide no guarantees above the 30 kN maximum https://www.sinto.co.jp/
12 AGME Eibar, Spain 1948 Selecting a head, controlled head or press PE electric servo presses Joining-module and workstation manufacturer PE50 5–50 kN; UC/UCC scope choice UC and UCC include different control equipment https://www.agme.net/
13 Alfamatic San Giorgio su Legnano, Italy 1979 Electric cylinders or complete presses Electric presses and electric cylinders Joining-module and workstation manufacturer 10 kN EP10; electric family to 300 kN Full-scale accuracy differs from applied-load percentage https://www.alfamatic.com/
14 Gechter Obermichelbach, Germany 1952 Monitored 10–40 kN assembly stations SRV servo presses Workstation manufacturer 10–40 kN SRV with process monitoring Published SRV range ends at 40 kN https://www.gechter.de/
15 mäder pressen Neuhausen ob Eck, Germany 1956 Compact own-brand S-PRESS workstations Own S-PRESS servo press Workstation manufacturer 10 kN; 200 mm stroke; 100 mm throat 100 mm throat restricts part access https://maederpressen.de/
16 Beckwood Press Fenton, Missouri, USA 1976 Servo-electric C-frame assembly platforms EVOx servo-electric presses Workstation manufacturer 2.5 US-ton C1-5; 12-inch stroke Frame choice changes force, travel and access https://beckwoodpress.com/
17 HyperCyl / Aries Engineering Dundee, Michigan, USA 1994 Choosing actuator-to-turnkey supply levels HyperCyl EMA electromechanical actuators Joining-module and workstation manufacturer 5–230 kN EMA; several delivery levels Bare-drive and turnkey prices cover different deliveries https://www.hypercyl.com/
18 ESTIC Moriguchi, Osaka, Japan 1993 Servo tools paired with dedicated controllers SPT servo press tools and controllers Joining-module manufacturer 5 kN SPT005-20 plus dedicated controller Builder supplies the frame and safeguards https://www.estic.co.jp/
19 Dai-ichi Dentsu Chofu, Tokyo, Japan 1952 DSP3000 controlled press modules DSP3000 servo press system Joining-module manufacturer 10 kN DPL101R3-20FB; 200 mm stroke Module limited to 10 kN / 200 mm; finished-part tolerance needs fixtures https://www.daiichi-dentsu.co.jp/
20 KINMARK Jinan, China 1996 predecessor N-series modules and automotive press-fit stations N-series servo press-fitting systems Joining-module and workstation manufacturer 10 kN N-series example; module/station options Module and workstation equipment varies by model within the family https://www.kinmark.com/

Publisher and Monitored Assembly Systems

SCHMIDT 605: 1 kN intermittent, 0.5 kN continuous; CORETEC CS05: 5 kN instantaneous, 3 kN normal, per suppliers.

These manufacturers implement electric pressing with a structured approach to process control/monitoring. Variations abound in their configurations: Some provide an integration module, some offer framed equipment, and some do both. The company profiles keep force ratings attached to the relevant model and operating definition.

1. SIMITCH: Best for 10–200 kN BP-series assembly integration

Headquarters: Taicang, Suzhou, China · Founded: 2006 · Type: Workstation and joining-module manufacturer

Official website: https://simitch.com/

Main products: BP bending-type precision assembly presses

Quality system: According to its About page, SIMITCH uses ISO 9001 principles for process control.

SIMITCH manufactures joining modules and workstations from Taicang, Suzhou. Its BP series addresses precision press-fit assembly, with a published selection that spans light insertion work through higher-force component joining. The company's servo press systems page puts force-displacement monitoring alongside the mechanical specification, so the selection starts with the joint and its acceptance requirements.

Published capability: SIMITCH publishes six BP force sizes: 10, 30, 60, 100, 150 and 200 kN, with 300 mm standard travel. According to SIMITCH's model table, SMT-BP-10-300 provides 10 kN with 300 mm/s listed speed and 1.5 kW power, while SMT-BP-200-300 provides 200 kN with 140 mm/s and 7.5 kW. Both belong to the standard 300 mm travel selection; the separately stated 0.01 mm positioning repeatability and 1% force-measurement accuracy describe different measurements.

Buying limitation: A 300 mm ram stroke doesn’t specify the space available for the part and fixture. Frame access and the included workstation equipment remain application choices.

2. Promess: Best for Wide force ranges

Headquarters: Brighton, Michigan, USA · Founded: 1984 · Type: Joining-module and workstation manufacturer

Official website: https://www.promessinc.com/

Main products: EMAP electric assembly press

Quality system: Not publicly disclosed.

Promess develops electric assembly equipment in Brighton, Michigan, with company origins in 1984. The EMAP range combines programmable motion with force and position monitoring, making it relevant when the assembly process needs a recorded relationship between the applied load and the insertion distance. Its published selection gives buyers several force and travel combinations rather than one nominal machine size.

Published capability: The EMAP table lists a 20 kN configuration with 180, 350 or 550 mm stroke and 200 mm/s speed. Farther up the range, the 500 kN version has 400 mm stroke and a 70 mm/s speed listing. Those figures make the range useful for comparing both compact insertion and much heavier joining requirements, while keeping each speed attached to its own model.

Buying limitation: More force doesn’t preserve the same speed across the EMAP range. The selected force, stroke and speed combination determines which configuration belongs in the quotation.

3. SCHMIDT Technology: Best for Explicit continuous-duty force selection

Headquarters: St. Georgen, Germany · Founded: 1938 · Type: Joining-module and workstation manufacturer

Official website: https://www.schmidttechnology.de/

Main products: ServoPress with PressControl

Quality system: SCHMIDT lists ISO 9001 for its company quality-management system.

SCHMIDT Technology is a German press-system manufacturer based in St. Georgen, with roots dating to 1938. Its ServoPress range is particularly useful when engineering needs a clear distinction between intermittent and continuous force. The company pairs its mechanical press units with PressControl options for monitored assembly, rather than describing capacity through a single unexplained peak figure.

Published capability: For ServoPress 605, the official specification gives 1 kN at intermittent S3 25%, 20-second duty and 0.5 kN at continuous duty, with 150 mm travel. The larger ServoPress 680 likewise separates 250 kN peak force from 200 kN continuous force. These published definitions support a duty-aware shortlist for parts that need sustained loading or repeated pressing cycles.

Buying limitation: The larger force in a catalog heading can be an intermittent rating. Selecting that number alone can leave the sustained-load requirement outside the intended operating condition.

4. Kistler: Best for Force-monitored joining with pretested modules

Headquarters: Winterthur, Switzerland · Founded: 1959 · Type: Joining-module and workstation manufacturer

Official website: https://www.kistler.com/

Main products: NCFE electromechanical joining systems

Quality system: Kistler publishes group quality-system evidence for ISO 9001:2015.

Kistler, founded in 1959 and headquartered in Winterthur, combines measurement technology with electromechanical joining equipment. Its NCFE family gives an integrator a press module with a defined mechanical envelope, while the broader offering also includes pretested joining systems and semiautomatic workstations. That distinction helps a buyer choose between building a machine around a module and purchasing a more complete assembly arrangement.

Published capability: The NCFE range is listed at 2–80 kN. One documented example, 2162A010350NT, combines 10 kN capacity with 350 mm stroke and 250 mm/s speed. A named configuration is a more useful starting point than applying the largest family number to every unit, especially where the part envelope and motion sequence are already fixed.

Buying limitation: An NCFE joining module is only part of a production station. Its specification doesn’t include the application's entire frame, part-handling arrangement or guarded workstation.

5. TOX PRESSOTECHNIK: Best for Modular ElectricDrive integration

Headquarters: Weingarten, Germany · Founded: 1978 · Type: Joining-module and workstation manufacturer

Official website: https://tox.com/

Main products: ElectricDrive Core with PowerModule and EdgeUnit

Quality system: The company reports ISO 9001:2015 certification at its German headquarters.

TOX PRESSOTECHNIK supplies joining technology from Weingarten, Germany, and dates its establishment to 1978. ElectricDrive Core divides the electric pressing package into a PowerModule, an EdgeUnit and software. This modular arrangement suits machine builders who want to integrate a defined drive and control package into their own production equipment.

Published capability: The published EPMK010.226.250 example supplies 10 kN with 250 mm stroke and 200 mm/s maximum speed. A 025 variant in the same documentation provides 25 kN with 250 mm stroke. The product structure makes the electrical and control scope visible alongside the mechanical selection, which is useful when several automation systems must exchange production information.

Buying limitation: ElectricDrive Core supplies the drive, control and software elements; those components don’t constitute a complete press frame. The surrounding machine structure remains a separate part of the integration.

6. Janome: Best for Choosing unit or standalone electro-press formats

Headquarters: Hachioji, Tokyo, Japan · Founded: 1921 · Type: Joining-module and workstation manufacturer

Official website: https://www.janome.co.jp/

Main products: JP Series5 and JP-S2 electro presses

Quality system: Janome's corporate sustainability material reports ISO 9001. Product cleanroom classifications are separate from that company quality-system statement.

Janome traces its business origins to 1921 and is based in Hachioji, Tokyo. Its industrial electro-press range includes the JP Series 5 and JP-S2, with unit and standalone formats for different integration needs. That choice is useful for a buyer comparing a press head for an automated line with a dedicated C-frame workstation.

Published capability: Within JP Series 5, JPU1005 is listed at 10 kN with 100 mm standard stroke or a 150 mm long-stroke version. JPU2005 is listed at 20 kN with 200 mm standard stroke or a 400 mm long-stroke version. The format and travel choices give the machine builder concrete alternatives for the available working space, rather than an assumption that every member of the range has the same stroke.

Buying limitation: Standard and long-stroke versions differ. The older JP4 series is discontinued, so an old model reference doesn’t identify the current supply configuration.

7. CORETEC: Best for Integration with explicit normal-thrust ratings

Headquarters: Soja, Okayama, Japan · Founded: 1972 · Type: Joining-module and automation-station manufacturer

Official website: https://www.coretec.co.jp/

Main products: AC servo presses and assembly automation

Quality system: CORETEC's company history records acquisition of ISO 9001 certification.

CORETEC, established in 1972 in Soja, Okayama, combines AC servo presses with assembly automation. Its specifications distinguish instantaneous thrust from normal thrust, giving an integrator a clearer basis for discussing the load requirement. The company's definition of normal output relates to mechanical life and should retain that meaning when compared with another manufacturer's duty terminology.

Published capability: The CS05 example lists 5 kN instantaneous thrust and 3 kN normal thrust, with 100 or 250 mm stroke versions. The larger MS100 publishes 100 kN instantaneous thrust against 70 kN normal thrust. Those paired values are useful for a production-line discussion because they show why the largest catalog number alone doesn’t describe the preferred repeated working condition.

Buying limitation: Instantaneous thrust isn’t a substitute for a sustained-duty selection. CORETEC's normal-thrust definition concerns mechanical life, rather than another supplier's continuous-force rating.

Integration Platforms and Electric Pressing Kits

IAI, Bosch Rexroth, Festo and Sinto offer different integration routes; define frame, sequencing and interface scope.

A machine builder with an existing automation platform may prefer an actuator or matched kit. This leaves more responsibility for frame, sequencing and machine interfaces for the integrator. The four suppliers identified here publish identifiable electric pressing products, although the quantity of hardware delivered around the pressing axis varies.

8. IAI: Best for Actuator integration with rated-thrust detail

Headquarters: Shizuoka, Japan · Founded: 1976 · Type: Servo-press actuator manufacturer

Official website: https://www.iai-robot.co.jp/

Main products: RCS3-RA20R servo-press actuator

Quality system: IAI's ISO 9001:2015 company scope excludes its agricultural business.

IAI manufactures electric actuators from Shizuoka and dates its establishment to 1976. Its RCS3-RA20R servo-press actuator is a component for machine integration, with rated and maximum thrust published separately. This makes it a relevant option where the builder already controls the frame, handling equipment and broader control system.

Published capability: The RCS3-RA20R specification distinguishes 25,902 N rated thrust from 50,000 N maximum thrust, with stroke selections from 100 to 500 mm. It also lists a usual pressing speed of 10 mm/s, which shouldn’t be replaced by a rapid-traverse figure in a cycle-time estimate. Reading the actuator's force and motion conditions together gives the builder a usable engineering starting point.

Buying limitation: The actuator requires a suitable controller and machine integration. Its maximum thrust doesn’t establish a continuous rated output for the complete customer-built station.

9. Bosch Rexroth: Best for Configurable pressing kits with software

Headquarters: Lohr am Main, Germany · Founded: 2001 current company · Type: Pressing-kit platform manufacturer

Official website: https://www.boschrexroth.com/

Main products: Smart Function Kit Pressing

Quality system: Bosch Rexroth AG lists ISO 9001 certification in its company certificate repository.

Bosch Rexroth supplies the Smart Function Kit Pressing as a configurable package for integrators and users with process knowledge. The company is headquartered in Lohr am Main, Germany; 2001 refers to the formation of Bosch Rexroth, rather than the start of every predecessor business. Its pressing kit combines matched mechanical and electrical components with operating software.

Published capability: The published kit range reaches 70 kN, with electromechanical-cylinder stroke configurable up to 400 mm. Preinstalled operating software supports the package's system approach, while force sensing depends on the selected configuration. The attraction for a machine builder is a defined set of compatible components for pressing and joining applications, leaving the application-specific structure to the surrounding machine design.

Buying limitation: The kit isn’t a complete workstation. Frame design, tooling and application integration remain outside the basic kit boundary, and sensor options change what’s included.

10. Festo: Best for Compact electronics pressing kits

Headquarters: Esslingen am Neckar, Germany · Founded: 1925 · Type: Pressing-kit platform manufacturer

Official website: https://www.festo.com/

Main products: YJKP servo press kit

Quality system: The published Festo SE & Co. KG ISO 9001:2015 certificate covers its listed automation sites and carries a 2025–2028 validity period.

Festo, founded in 1925 and based in Esslingen am Neckar, offers the YJKP servo press kit for electric pressing tasks. Its published application material includes smartphone assembly, making the range relevant to compact electronic products as well as other small-component joining operations. The product is a kit for integration rather than a finished handling cell.

Published capability: YJKP force grades include 0.8, 1.5, 4, 7, 12 and 17 kN, with working strokes of 100, 200, 300 or 400 mm. Festo states force accuracy of ±0.25% of calibrated full scale. That denominator matters: a full-scale specification isn’t the same as the same percentage of the force applied during a small-load pressing step.

Buying limitation: YJKP components don’t include the full workpiece-handling system or guarded workstation. Those items remain part of the machine builder's delivery.

11. Sinto: Best for Press-fitting with workpiece handling

Headquarters: Nagoya, Japan · Founded: 1934 · Type: Joining-module and workstation manufacturer

Official website: https://www.sinto.co.jp/

Main products: Servo press machines and electric cylinders

Quality system: Sinto’s publicly disclosed company history records JQA ISO 9001 certification at the Toyokawa plant in 1999.

Sinto, headquartered in Nagoya with origins in 1934, offers servo press machines as well as electric cylinders. Its product presentation includes precision pressing combined with workpiece handling, giving buyers a choice between a machine arrangement and an actuator-level purchase. This is useful when the pressing motion is only one operation in a larger assembly sequence.

Published capability: An automotive press-fit and riveting machine example is specified at a maximum pressing force of 30 kN, with positioning repeatability of ±0.01 mm. The example connects the force and positioning figures to a named machine application rather than treating them as universal values for every Sinto cylinder or press.

Buying limitation: The 30 kN maximum force and ±0.01 mm repeatability figures belong to the illustrated machine example. Jobs above 30 kN need a different machine from Sinto's electric-cylinder or workstation range.

Dedicated Press Builders and Control Specialists

AGME head formats differ in controls and equipment; check fixture access and ownership of the surrounding machine.

Nominal force isn’t the only factor that can rule a shortlist. Access to frames, a controller selection and the partitioning of engineering effort can work just as well. The following companies offer dedicated press equipment or identifiable controlled modules. Their published examples help separate a complete press purchase from a component that still needs a surrounding machine.

12. AGME: Best for Selecting a head, controlled head or press

Headquarters: Eibar, Spain · Founded: 1948 · Type: Joining-module and workstation manufacturer

Official website: https://www.agme.net/

Main products: PE electric servo presses

Quality system: AGME reports renewal of its ISO 9001 quality certificates.

AGME, founded in 1948 in Eibar, Spain, manufactures assembly equipment including PE electric servo presses. Its range distinguishes a basic UC head from a UCC head supplied with control, as well as complete press arrangements. This is a practical distinction for an integrator deciding how much of the machine's electrical and process-control work to buy with the pressing head.

Published capability: For PE 50, AGME publishes a 5–50 kN force range and 0.01 mm positioning repeatability. The company also lists an optional load cell with ±0.5% precision, without treating that short specification as interchangeable with another supplier's full-scale accuracy figure. The separate head formats let a project team align the offer with its existing controller and machine architecture.

Buying limitation: A UC basic head and a UCC controlled head have different included equipment. Comparing their prices without the control scope would compare different deliveries.

13. Alfamatic: Best for Electric cylinders or complete presses

Headquarters: San Giorgio su Legnano, Italy · Founded: 1979 · Type: Joining-module and workstation manufacturer

Official website: https://www.alfamatic.com/

Main products: Electric presses and electric cylinders

Quality system: Not publicly disclosed.

Alfamatic, based in San Giorgio su Legnano, Italy, dates its establishment to 1979. The company offers electric presses and electric cylinders, so the buyer can consider a complete press arrangement or the pressing element for a larger machine. Its public electric range includes both compact models and higher-force configurations.

Published capability: The EP 10 example provides 10 kN, with force measurement stated at ±0.5% of full scale. The broader electric family includes models up to 300 kN. This combination makes the range relevant where the purchasing decision includes both the mechanical supply boundary and the measurement range needed for the joint.

Buying limitation: Full-scale measurement accuracy isn’t the same percentage of the actual applied load. A low-force operation on a larger measuring range therefore needs a separate measurement-capability assessment.

14. Gechter: Best for Monitored 10–40 kN assembly stations

Headquarters: Obermichelbach, Germany · Founded: 1952 · Type: Workstation manufacturer

Official website: https://www.gechter.de/

Main products: SRV servo presses

Quality system: Not publicly disclosed.

Gechter supplies presses from Obermichelbach, Germany, with a business origin of 1952 reported by its official distribution partner. The SRV servo range combines electric pressing with force-displacement monitoring. It’s a useful starting point for buyers who want an assembly-station format within a defined moderate-force range.

Published capability: The published SRV family covers 10–40 kN and strokes up to 350 mm. Its monitoring capability gives the pressing process a recorded force-versus-travel view, while the stated travel provides a concrete basis for checking the required insertion movement. Those facts support an assembly shortlist without assuming that a monitored trace itself proves the final part's dimensions.

Buying limitation: The documented SRV range ends at 40 kN. An assembly requirement above that force falls outside the range described here, regardless of how suitable its monitoring functions appear.

15. mäder pressen: Best for Compact own-brand S-PRESS workstations

Headquarters: Neuhausen ob Eck, Germany · Founded: 1956 · Type: Workstation manufacturer

Official website: https://maederpressen.de/

Main products: Own S-PRESS servo press

Quality system: Not publicly disclosed.

mäder pressen manufactures presses in Neuhausen ob Eck, Germany. A company-issued historical release dates its origins to 1956. Its own S-PRESS product should be considered separately from the Janome presses it also distributes, preserving the distinction between the manufacturer of a machine and its sales channel.

Published capability: The documented S-Press 1000-200-100 provides 10 kN, a 200 mm stroke and a 100 mm throat. That combination makes the compact workstation relevant to parts whose insertion movement and access fit the frame. The throat dimension is particularly useful because a suitable pressing force alone says little about whether the fixture and workpiece can reach the working position.

Buying limitation: The 100 mm throat limits part access on this model. A component that needs more reach requires a different frame arrangement, even if 10 kN would satisfy its load requirement.

16. Beckwood Press: Best for Servo-electric C-frame assembly platforms

Headquarters: Fenton, Missouri, USA

Founded: 1976

Type: Workstation manufacturer

Official website: https://beckwoodpress.com/

Main products: EVOx servo-electric presses

Quality system: Not publicly disclosed.

Beckwood Press Company, established in 1976 and based in Fenton, Missouri, builds press equipment including the EVOx servo-electric range. Its documented applications include assembly, while the company's wider catalog also serves forming operations. EVOx offers a framed platform for buyers whose requirement is more complete than a bare actuator.

Published capability: The EVOx C1-5 example is listed at 2.5 US tons with a 12-inch stroke. The series states positioning repeatability of ±0.0005 inch. Keeping the US-ton unit and the named frame visible prevents a buyer from confusing that configuration with a metric-ton rating or a different machine in the broader range.

Buying limitation: Force, stroke and access depend on the frame configuration. A forming example elsewhere in the catalog doesn’t establish the fit of a particular assembly fixture or joint.

17. HyperCyl / Aries Engineering: Best for Choosing actuator-to-turnkey supply levels

Headquarters: Dundee, Michigan, USA · Founded: 1994 · Type: Joining-module and workstation manufacturer

Official website: https://www.hypercyl.com/

Main products: HyperCyl EMA electromechanical actuators

Quality system: Not publicly disclosed.

HyperCyl is an Aries Engineering brand based in Dundee, Michigan, with business origins in 1994. Its EMA electromechanical actuator offering is available at several supply levels, including an actuator, bare drive, controller package or turnkey solution. That range is relevant when a project team wants to keep some machine-building responsibilities in house while purchasing others.

Published capability: The EMA family is published at 5–230 kN, with stated repeatability of 0.0025 mm. The supply choices make it possible to discuss the same general pressing requirement at component or system level, while retaining the distinction between an actuator's rating and the performance of an assembled production cell.

Buying limitation: A bare drive, a controlled actuator and a turnkey station are different purchases. The lowest-scope offer doesn’t include the equipment and engineering present in a complete station.

18. ESTIC: Best for Servo tools paired with dedicated controllers

Headquarters: Moriguchi, Osaka, Japan · Founded: 1993 · Type: Joining-module manufacturer

Official website: https://www.estic.co.jp/

Main products: SPT servo press tools and controllers

Quality system: ESTIC's company history records ISO 9001:2015 in 2017; this is a historical company statement.

ESTIC, founded in 1993 and headquartered in Moriguchi, Osaka, supplies servo press tools with dedicated controllers. Its SPT range is a module-level choice for a machine builder designing the frame and handling arrangement. The pairing of tool and controller makes the control boundary clearer than a mechanical head offered without an identified operating package.

Published capability: The SPT005-20 model is listed with a maximum force of 5 kN, and the SPT specification gives positioning repeatability of ±0.01 mm. Those values make the tool relevant to lower-force assembly requirements, with the exact model and controller chosen as part of the machine's overall process design.

Buying limitation: The tool and controller still require the machine builder's frame and safeguards. Their catalog figures don’t describe a completed customer-specific workstation.

19. Dai-ichi Dentsu: Best for DSP3000 controlled press modules

Headquarters: Chofu, Tokyo, Japan · Founded: 1952 · Type: Joining-module manufacturer

Official website: https://www.daiichi-dentsu.co.jp/

Main products: DSP3000 servo press system

Quality system: The company's ISO 9001 certificate JQA-QMA13393 identifies headquarters and Kani factory scope.

Dai-ichi Dentsu, based in Chofu, Tokyo, dates its establishment to 1952. Its DSP3000 servo press system combines pressing modules with dedicated control. The product is relevant to integrators who want to build a monitored assembly operation around an identified module and its matching control system.

Published capability: The DPL101R3-20FB example provides 10 kN with 200 mm stroke, while DSP3000 documentation states repeatability of ±0.01 mm. A named module and control platform give the buyer a concrete basis for defining the press portion of a larger automated machine, without assuming that the entire part-handling sequence is part of the module purchase.

Buying limitation: Module repeatability doesn’t include the customer's fixture behavior or the finished part's dimensional tolerance. The DPL101R3-20FB module’s 10 kN force and 200 mm stroke also limit the application.

20. KINMARK: Best for N-series modules and automotive press-fit stations

Headquarters: Jinan, China · Founded: 1996 predecessor · Type: Joining-module and workstation manufacturer

Official website: https://www.kinmark.com/

Main products: N-series servo press-fitting systems

Quality system: KINMARK's About page lists ISO 9001; its Honors page uses ISO 9000 and ISO 14001 wording.

KINMARK supplies N-series servo press-fitting systems from Jinan, China. Its company history traces back to a predecessor established in 1996, rather than presenting that date as the incorporation year of every current entity. The range includes modules and press-fitting workstations for automotive and other assembly applications.

Published capability: The N-Series 10KN example lists 10 kN and 100–400 mm stroke options, within a family advertised at 2–350 kN. The published 0.01 mm figure is described as position accuracy, a different specification from positioning repeatability. These details support a model-based shortlist for a defined press-fit operation.

Buying limitation: A family maximum of 350 kN doesn’t describe the 10 kN model. Module and workstation configurations also include different equipment, so the selected package determines the purchase scope.

How to Choose a Servo Press Manufacturer

Eight servo-press buying checks link duty, access, measurement, cycle, data, scope, certificates and acceptance evidence.

A useful comparison connects the workpiece drawing to a pressing cycle and to a defined delivery. Nominal tonnage, desirable repeatability figures and an attractive entry-level price can’t do this on their own. Use the following eight checks to compare the same job across suppliers, with the press axis, measurement package and surrounding machine considered together.

How to Evaluate a Servo Press?

Evaluate a servo press against the joint’s required force over travel, load duration, finished-part acceptance criteria and target cycle time. With regard to complex applications, consider the tooling envelope and the equipment included in each offer. Ask how the proposed operating mode provides precise control over the loaded movement. The preferred supplier response integrates the named requirements with a specific model, achievable cycle and defined measurement system, instead of depending on the largest force printed in the supplier catalog.

1. Apply the Force-Duty Fit Check

The Force-Duty Fit Check means reading the force number together with its operating definition and load duration. SCHMIDT ServoPress 605 illustrates the difference: its 1 kN intermittent rating uses S3 25%, 20-second duty, while its continuous rating is 0.5 kN. CORETEC separately defines instantaneous and normal thrust, with normal output related to mechanical life. Those are useful distinctions, not interchangeable labels or a universal conversion formula.

Ask for: the required force throughout the loaded movement, dwell time and repetition pattern. A good response identifies which rating applies to that cycle. IAI’s separate rated and maximum thrust figures provide another reason to avoid sizing an electric servo press from a peak number alone.

2. Match stroke to part access

A 200 mm stroke does not tell the buyer whether a tall fixture fits under the ram or whether a wide part can reach through a C-frame. mäder’s S-PRESS example publishes both 200 mm stroke and 100 mm throat, making the access question visible beside the force rating.

Ask for: a layout showing the workpiece, fixture, loading position and full motion envelope. A good response identifies the available daylight and throat as well as loaded travel. SIMITCH’s BP bending-type assembly presses provide a product-specific starting point for that layout discussion.

3. Compare the full measurement system

A repeatable axis returns to a consistent position; positioning repeatability doesn’t describe the finished joint’s dimensional accuracy. Force accuracy also needs its stated basis: Festo’s ±0.25% of calibrated full scale and Alfamatic’s ±0.5% full-scale figure can’t be read as the same percentages of every applied load. A larger measuring range can therefore be a poor comparison for a much smaller working force.

Ask for: sensor range, readout configuration, calibration scope, and the measurement conditions used for the proposed process. NIST’s force-transducer calibration guidance explains that calibration with a customer’s readout applies to that paired system. A good answer identifies the combination that will be delivered, rather than attaching a sensor-only claim to the whole station.

4. Separate rapid movement from loaded pressing

A high-speed approach can reduce unloaded travel time, but it doesn’t establish the speed available at the required pressing force. Promess publishes different speeds for its 20 kN and 500 kN examples; IAI distinguishes usual pressing speed from rapid motion. These details matter when evaluating a servo press for high-speed assembly.

Ask for: the complete sequence, including loading, approach, pressing, dwell, return and unloading. A good response shows where the target cycle time comes from. The automated assembly line planning guide provides wider context for locating the pressing operation within the production sequence.

What Can Be Programmed in the Press Cycle?

The programme depends on the press package and controller selected. Motion systems commonly organize an approach, a controlled pressing movement and a return, with the supplier defining the available force or position conditions. Analyze those functions in the proposed configuration. Programmable motion doesn’t assure that a machine can sustain all combinations of high force and high speeds throughout the stroke.

5. Define monitoring and data exchange

Force and position control, position monitoring and curve evaluation are related but different functions. A recorded curve is useful only when the project also defines its acceptance windows and how the result follows the part. “Absolute process transparency” is a marketing description until the offer identifies the data and interfaces that support it.

Ask for: the record format, part identifier, storage location and exchange with the line controller. If an integrated export function is needed, name it in the scope. A good answer demonstrates the requested information flow. The force-displacement curve validation guide explains why process traces and finished-part checks belong together when assessing product quality.

6. Agree who supplies and commissions the station

A pressing kit can be an efficient purchase for an experienced integrator, while a buyer without that capability may need the frame, handling equipment and control integration included. The words “system solutions”, drive technology and servo drives do not settle those responsibilities.

Module or kit

  • Defined pressing axis and selected controls.
  • Machine structure and handling designed around it.
  • Integration ownership assigned to the machine builder.
Complete workstation

  • Frame and application equipment named in the offer.
  • Handling and operator access described in the layout.
  • Commissioning and acceptance responsibilities assigned.

Ask for: an itemized supply boundary and the party responsible for commissioning. A good response distinguishes standard equipment, options and customer-supplied items. Projects adding robots should also define the exchange with the robotic assembly line, rather than assuming every controller interface is included.

7. Treat certificates and performance claims separately

A quality-management certificate is not a performance certificate for every press. A company’s legal entity is contained within the certificate. The site scope and the certificate’s validity period are also a part of the certificate. ISO 9001 identifies the quality-management standard; its edition history alone does not establish whether a particular company’s certificate is valid. Historical certification statements also differ from a current certificate.

Request the applicable certificate and its site scope as well as evidence of promised performance of the machine in question. A good answer would name the entity and site rather than making a general group claim for all operations. Safety functions likewise belong to the configured machine assessment; a servo-controlled axis alone does not establish the suitability of the complete workstation.

8. Compare acceptance evidence and total quoted scope

Reducing scrap, reducing energy consumption and precise force control are excellent objectives, but they require a defined baseline and acceptance method. Servo press technology does not produce the same result in every joint. For applications of servo technology in automotive manufacturing, the acceptance discussion should cover representative parts, changeover, measurement and records and the end result that’s to be shown, before the equipment is accepted.

Ask for: a quotation that separates the press, tooling, controls, handling, installation and service. A good response connects the proposed equipment to the agreed acceptance evidence. If the process mainly needs intensified pneumatic force with a different control approach, compare pneumohydraulic drive options as a separate architecture. A servo hydraulic press uses hydraulic force; conventional hydraulic presses and an electro-mechanical assembly axis shouldn’t share an unqualified efficiency claim.

Key takeaway

A suitable assembly press matches the load cycle, tooling envelope and delivered scope. The Force-Duty Fit Check keeps a peak-force headline from replacing that engineering comparison.

Frequently Asked Questions

Which is the best servo press manufacturer for precision assembly?

The best fit depends on the joint, the duty cycle and the equipment included.

SCHMIDT is a relevant starting point for explicitly separated continuous and intermittent force ratings. Promess offers monitored EMAP configurations, while Festo and Bosch Rexroth supply pressing kits for integration. A framed workstation can suit a different purchasing need from a bare module. Compare a named model against the same workpiece and cycle, then select the supplier whose delivery covers the required machine-building responsibilities.

Who is the largest servo press manufacturer in the world?

The reviewed sources do not establish a comparable global sales or shipment leader for assembly servo presses.

Company revenue, maximum press force and international office count measure different things. A large automation group can sell pressing kits without being the largest supplier of complete assembly workstations. A meaningful size comparison would need a defined product category, reporting period and consistent sales or shipment evidence across suppliers. This list uses documented application fit and product scope instead of assigning an unsupported market-share ranking.

What is the difference between a servo press manufacturer and a supplier?

A manufacturer makes an identified press product; a supplier may also be a distributor or integrator.

That distinction matters when deciding who owns the mechanical design, controller support and application engineering. A machine builder can integrate another manufacturer’s actuator into a complete workstation, adding substantial engineering without manufacturing the actuator itself. This list identifies the product and supply scope associated with each company. In a quotation, name both the maker of the pressing unit and the organization responsible for the delivered machine, so service and acceptance responsibilities are clear.

How much does a servo press cost?

Price depends on the force, frame, controls, tooling and integration work included.

The reviewed sources don’t provide a consistent public price range for equivalent complete stations. Compare itemized quotations for the same scope. A module price can’t establish the cost of a production-ready workstation.

Which is the best servo press for continuous-duty assembly?

Choose a model with an operating rating that matches the actual repeated load cycle.

SCHMIDT ServoPress 605 provides a concrete example: its published continuous force is 0.5 kN, distinct from the 1 kN intermittent rating. CORETEC uses instantaneous and normal-thrust definitions, while IAI publishes rated and maximum thrust separately. Those terms should retain the manufacturer’s meaning. The best selection depends on the required force during loaded travel, dwell and repetition, together with the chosen machine configuration. A higher peak number alone doesn’t resolve that decision.

Can a force-displacement curve replace a finished-part inspection?

A process curve and a finished-part inspection provide different evidence.

The curve records the pressing operation; the part still has its own dimensional and functional requirements. Define both in the acceptance plan. SIMITCH’s press-fit validation guidance discusses that relationship for assembly work.

Your Next Servo Press Shortlist

Send drawings, travel, cycle and data needs; request a named SIMITCH BP model, fixture access and included controls.

Choose a few suppliers whose documented products fit the force cycle and delivery you need. Send the same drawings, travel requirement, target cycle and data requirements to each. For a project involving SIMITCH’s BP range, discuss your assembly requirements with the team and identify the proposed model, fixture access and included controls. The best shortlist is one that compares equivalent work and equivalent supply responsibilities.

Related Assembly Guides

References & Sources

Company profiles draw on the manufacturers’ official product, company-history and quality-system material reviewed in October 2026. The official website is shown in each profile. Product figures retain the stated model and measurement basis; company descriptions are attributed supplier information.

]]> https://simitch.com/blog/top-servo-press-manufacturers/feed/ 0 Top 20 Hydropneumatic Press and Drive-System Manufacturers https://simitch.com/blog/top-hydro-pneumatic-press-manufacturers/ https://simitch.com/blog/top-hydro-pneumatic-press-manufacturers/#respond Thu, 08 Oct 2026 03:28:37 +0000 https://simitch.com/?p=2679

Updated: October 2026

For a hydro pneumatic press manufacturer shortlist, consider SCHMIDT for monitored assembly, Alfamatic for frame and guarding choices, and Gechter for H-frame pressing. SIMITCH serves machine builders needing integrated or split drives. These 20 options cover different supply scopes, so compare the required working stroke, controls and complete-station requirements before choosing.

Quick comparison: 20 manufacturers; four drive-focused suppliers; ten standard press builders; six application-focused manufacturers. Force figures are in published units and pressure conditions. Total stroke and power stroke are separate specifications.

Quick Picks by Buying Need

  • SIMITCH: integrated BS/BT or split AT/HZ drives for a customer-built machine.
  • SCHMIDT Technology: a modular press and controller combination for monitored assembly.
  • Alfamatic: several frame and guarding choices around the OP press family.
  • Gechter: H-frame equipment with separately specified approach and power forces.
  • G.P.A. Italiana: clearly separated supply levels, from frame and unit to standalone controls.
  • S S Air Hydro Power: a documented brake-cable crimping machine and application-specific press options.

Disclosure: This guide is published by SIMITCH. We list ourselves first because this is our website, not because we claim to be the market leader. The other 19 manufacturers are grouped by what they’re best for, in no particular order within each group.

How We Selected These Manufacturers

Shortlist criteria: documented press or drive, identifiable manufacturer and a clearly defined supply scope.

We reviewed official product specs and company histories and published quality info in Oct 2026. We reviewed each for a product with a documented hydropneumatic press or drive. An identifiable manufacturing business with a relevant product qualified for selection, which excluded directories, used-equipment dealers and duplicate distribution channels. Mixed-product businesses qualified only for their own documented equipment.

A wide variety of applications can appear in a press catalog; inclusion depends on a documented product, not a claim to serve diverse industries. The comparison is a purchasing shortlist, not a ranking of market share, or the result of tests on the machines themselves. The specifications of models given are published by the manufacturers. The best for labels are our interpretation of the products, and the absence of historical data doesn’t mean the firm doesn’t have manufacturing experience. Supply scope is the first comparison because a cylinder quotation and a guarded workstation quotation purchase different things.

Press-or-Drive Supplier Comparison

A drive for integration and a complete press with frame, controller and guarding represent different supply scopes.

Use the table to separate supply you intend to buy before comparing maximum force. An existing machine builder and a drive manufacturer may be good partners. A complete press supplier may be better for a production team requiring a frame, a controller and a guarded operating station. Companies may have both (scopes of supply) with different limits.

Twenty manufacturers compared by published supply scope
No. Company Name Headquarters Founded Year Best For Brief Introduction Supply Scope and Press Family Key Advantages Potential Disadvantages Official Website
1 SIMITCH Taicang, Suzhou, China 2006 Machine-builder drive Drive-system supplier BS/BT; AT/HZ Two physical layouts Frame and controls separate https://simitch.com/
2 Enerfluid Ponte San Marco, Brescia, Italy 1984 Integrator drawing support Drive-component manufacturer Cylinders and boosters Testing and CAD support Station integration separate https://www.enerfluidsnc.com/
3 Suncenter Dongguan, Guangdong, China (operating site) — Selectable cylinder travel Drive-component manufacturer within Suncenter Group SST cylinders Separate stroke ranges Cylinder rather than workstation https://www.suncenterbooster.com/
4 July Industrial Changhua, Taiwan roots; Dongguan/Jiangxi production, China 1996 (July Industrial history; Dongguan production from 2006) Cylinder-layout selection Manufacturing group with separate production and sales entities JL cylinder families Several arrangements Complete machine design needed https://julymachinery.com/
5 TOX PRESSOTECHNIK Weingarten, Germany 1978 Drive or station route Press and drive-system manufacturer Line-X; ecoLine Component and system options Ratings differ by product https://tox.com/
6 SCHMIDT Technology St. Georgen, Germany 1938 Monitored assembly Assembly press manufacturer HydroPneumaticPress PressControl choices Monitoring range is narrower https://www.schmidttechnology.de/
7 Alfamatic San Giorgio su Legnano, Italy 1979 (company's stated operating history) Frame and guard choice Press and cylinder manufacturer OP presses Six frame arrangements Standard power travel: 15 mm https://www.alfamatic.com/
8 EMG Presses Marigny-Saint-Marcel, France 1966 (manufacturer's stated foundation year) Higher-force C-frame Press manufacturer; EMG trademark of LONG 7T–100T Cylinder combinations Short power stroke https://www.emgpresses.com/
9 mäder pressen Neuhausen ob Eck, Germany 1950s; focused on presses from 1968 Deep-throat tooling access Assembly press manufacturer HP; XL-HP 150/300 mm throats Total travel: 50 mm https://maederpressen.de/
10 Gechter Obermichelbach, Germany — H-frame pressing with a short power stroke Press manufacturer HPPV; HPPS Separate force stages Control and stroke options https://www.gechter.de/
11 Air-Hydraulics Jackson, Michigan, USA 1945 US press customization Press and intensifying-cylinder manufacturer AH air-over-oil Tooling and control options Standard power travel: 0.500 in https://www.airhydraulics.com/
12 HyperCyl / Aries Engineering Dundee, Michigan, USA 1994 (Aries/AEC and HyperCyl history) Sample-led selection Hydra-pneumatic cylinder and press manufacturer HyperPress; HPI Application test lab CGB limited to 30 tons https://www.hypercyl.com/
13 LDP Italia Bariano, Bergamo, Italy 1976 (company's stated design/manufacturing history) Modular integration Hydropneumatic press and thrust-unit manufacturer DP; DPS; EPK Frame-and-unit route Integration scope varies https://www.ldpitalia.com/
14 G.P.A. Italiana Lomazzo, Como, Italy (registered office) 1962 Defined supply levels Automation unit, press and power-unit manufacturer PCM; PPCM; CM Three equipment levels Basic supply lacks full controls https://www.gpa-automation.com/
15 Mercury Pneumatics Mumbai, India 1980 (pneumatic-product production began) Indian frame selection Press and cylinder manufacturer Z systems; A/H/N Multiple frame formats System scope must match https://www.mercuryindia.net/
16 National Pneumatic Systems Vasai, Maharashtra, India 2006 Custom cutting/crimping Custom press and cylinder manufacturer Pillar and C-frame Several fixture arrangements Final model values required https://nationalpneumaticsystems.com/
17 S S Air Hydro Power Samaypur, Delhi, India 2014 Cable-crimping fixtures Hydraulic, hydropneumatic and pneumatic equipment manufacturer Cable and pillar presses Named brake-cable model 15 ton is model-specific https://www.ssairhydro.com/
18 Neumatica Technologies Peenya, Bangalore, India 1992 Feeding plus assembly Press and assembly-automation manufacturer Press/automation range Feeders and data options Feeding and data functions need integration https://www.neumaticaglobal.com/
19 Synergetic Automation Nashik, Maharashtra, India — Monitored custom station Special-purpose machine and press manufacturer Standard/custom presses Force/stroke option Monitoring must be selected https://www.synergeticautomation.com/
20 C MATIC CONTROL Vikhroli, Mumbai, India 2019 (LLP incorporation, Tracxn) Mumbai C-frame projects Press manufacturer and automation component distributor C/H/column frames Separate loaded-stroke data C-frame maximum: 30 tonnes https://www.cmaticcontrol.com/

Information on published founding dates details the history described in each company profile. For July, the group history and mainland production date differ; for C MATIC, the stated year is the LLP incorporation date. A dash means that no sufficiently clear date was established for this comparison. Disadvantages in the table represent specific purchase limits, not reliability ratings.

Publisher and Drive-System Specialists

SIMITCH BS/BT integrated drive example; the machine builder separately defines frame, tooling, guarding and integration.

The four drive suppliers are considered when the project requires a hydropneumatic cylinder or drive package. Their published offerings assist the machine builder to evaluate an integrated or split arrangement, the force level and working stroke. A customer who wants to use a complete press should specify the frame, tooling, controls and guarding in the same project.

1. SIMITCH: Best for Integrated or split drives for a customer-built press

Headquarters: Taicang, Suzhou, China / 2006 / Drive-system supplier

Official website: https://simitch.com/

Main products: BS/BT integrated and AT/HZ split pneumohydraulic drives

Published capabilities: BS 11–970 kN at 6 bar air; AT 13–1030 kN at 400 bar oil; HZ 48–492 kN at 250 bar oil

Pressure basis: SIMITCH BS/BT integrated and AT/HZ split drive families: BS at 6 bar air pressure, AT at 400 bar oil pressure, HZ at 250 bar oil pressure.

Notable product detail: BS/BT and AT/HZ provide distinct integrated and split layouts.

SIMITCH’s BS/BT families combine the working cylinder and intensification functions in an integrated arrangement, while AT/HZ families separate them. A machine builder can choose the physical layout around the available mounting space, with the integrated and split drive product range providing the series specifications.

The BS force range is stated at 6 bar air pressure, whereas AT and HZ figures use 400 bar and 250 bar oil-pressure conditions, respectively. Comparing those values as identical air-supply tests would obscure the actual sizing question: which series supplies the required force over the loaded travel in the planned machine?

Limitation: The drive supply doesn’t by itself include the press frame, guarding, tooling or station integration.

2. Enerfluid: Best for Tested cylinders with drawing support for integrators

Headquarters: Ponte San Marco, Brescia, Italy / 1984 / Drive-component manufacturer

Official website: https://www.enerfluidsnc.com/

Main products: Pneumo-hydraulic cylinders, pressure boosters and hydraulic speed regulators

Published capabilities: Four testing stations for boosters, cylinders, locking cylinders and speed regulators

Quality information: ISO 9001:2015 quality-system claim, according to its website

Enerfluid operates four testing stations covering pressure boosters, pneumo-hydraulic cylinders, locking cylinders and hydraulic speed regulators. Its technical department supplies 2D drawings and 3D STEP models, giving integrators component geometry for machine layout and design.

The cylinder guide distinguishes pneumatic approach motion from hydraulic intensification during the loaded part of the stroke. Together, the drawings and operating information support cylinder selection for a separately engineered press.

Limitation: The documented offer is a drive component; the integrator supplies the complete press and controls.

3. Suncenter: Best for Air-driven cylinders with selectable total and power strokes

Headquarters: Dongguan, Guangdong, China (operating site) / Not established from reviewed sources / Drive-component manufacturer within Suncenter Group

Official website: https://www.suncenterbooster.com/

Main products: SST hydropneumatic cylinders and fluid-pressure equipment

Model example: SST-3T has a 20 mm piston rod in the published 6 bar nominal-pressure example.

Published capabilities: Listed cylinders 1–100 T; total stroke 50–300 mm; hydraulic stroke 5–25 mm; air supply 3–6 bar

Quality information: Website lists ISO/CE/SGS and claims CE and SGS certification; no specific ISO edition asserted

Suncenter’s SST catalogue lists 1–100 T cylinder ratings, 50–300 mm total strokes and 5–25 mm power strokes alongside a 3–6 bar air-pressure range. These family-level ranges help identify candidate sizes, but their separate maximum values don’t establish a single model combining the longest travel and highest force.

The product information distinguishes low-force contact movement from the intensified stage, which is useful when a fixture brings parts together before final pressing. For a custom assembly project, the selected cylinder’s drawing and pressure conditions provide the starting point for the machine builder’s structure and control design.

Limitation: The listed tonnage is for a cylinder, leaving the press structure and safeguarding to the system builder.

4. July Industrial: Best for Choosing among several hydropneumatic cylinder layouts

Headquarters: Changhua, Taiwan roots; Dongguan/Jiangxi production, China / 1996 (July Industrial history; Dongguan production from 2006) / Manufacturing group with separate production and sales entities

Official website: https://julymachinery.com/

Main products: JLDD, JLEA, JLTA, JLFA, JLCB and JLCA hydropneumatic cylinders

Published capabilities: JLEA/JLTA/JLFA category titles list 1–20 T; JLCB lists 25–100 T

Quality information: Historical ISO 9001:2008 and CE claims on company page, according to its website

July Industrial presents several cylinder layouts, including JLEA, JLTA and JLFA families labelled 1–20 T and JLCB models labelled 25–100 T. Those names and bands identify catalogue choices; selecting a component still requires the exact force, stroke and mounting arrangement for the tool.

July traces its roots to Changhua in 1996 and dates its Dongguan production operation to 2006. Its company history also lists ISO 9001:2008 and CE credentials.

Limitation: The public range is cylinders; component choice still requires a complete machine design.

Standard Hydropneumatic Press Builders

Check frame access, total travel, power stroke and selected controls on the proposed press configuration.

The ten press builders publish framed press equipment as well as, in several cases, separate drive components. Their catalogues make working stroke, frame format or supply level visible enough to begin a model comparison. Optional monitoring, guarding and controls still need to follow the selected configuration rather than the broadest claim across a product family.

5. TOX PRESSOTECHNIK: Best for A drive family with matching press-system options

Headquarters: Weingarten, Germany / 1978 / Press and drive-system manufacturer

Official website: https://tox.com/

Main products: TOX Powerpackage Line-X drives and ecoLine assembly stations

Published capabilities: Line-X drive family 11–1727 kN; XS power stroke 6–22 mm

Quality information: German headquarters lists ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018

TOX’s component and press-system routes let a buyer investigate either a drive for integration or a supplied assembly station. The Powerpackage Line-X page’s 11–1727 kN range belongs to the drives, while ecoLine stations have their own force categories, strokes and equipment choices.

The XS specification identifies a 6–22 mm power-stroke range, a useful screening detail when checking the loaded movement. For a team deciding between a retrofit and a new station, keeping those model boundaries intact is more informative than assigning the largest catalogue force to every TOX system.

Limitation: The Line-X force range is a drive specification and isn’t the rating of every ecoLine press.

6. SCHMIDT Technology: Best for Monitored assembly with a modular press/controller range

Headquarters: St. Georgen, Germany / 1938 / Assembly press manufacturer

Official website: https://www.schmidttechnology.de/

Main products: HydroPneumaticPress systems and PressControl controllers

Published capabilities: HydroPneumaticPress 15–220 kN; C-frame and monitored variants to 100 kN

Quality information: DIN EN ISO 9001 quality certification is stated on its corporate portrait

SCHMIDT presents HydroPneumaticPress mechanics alongside PressControl options, giving monitored assembly buyers a defined press-and-controller route. Force and position information can support a specified inspection strategy when completion of the downward ram movement alone doesn’t establish correct assembly.

The published C-frame and monitored arrangements have limits narrower than the overall 220 kN maximum, including versions up to 100 kN. Compare the press model and PressControl 75 or 700 configuration together, with acceptance windows based on the part and process rather than the broadest features from separate catalogue entries.

Limitation: The 220 kN family maximum doesn’t apply to all C-frame or monitored arrangements.

7. Alfamatic: Best for Comparing several frame and guarding arrangements

Headquarters: San Giorgio su Legnano, Italy / 1979 (company's stated operating history) / Press and cylinder manufacturer

Official website: https://www.alfamatic.com/

Main products: OP hydropneumatic presses and APAX cylinders

Published capabilities: Seven OP models; table 14.5–420 kN, 115 mm total/15 mm power stroke, maximum 6 bar

Notable product detail: Six structure arrangements and three guarding arrangements; force/position monitoring is optional.

Alfamatic’s OP range is useful when frame layout and operator access are central purchasing decisions. The hydro-pneumatic press model table lists seven sizes from 14.5 to 420 kN, while the available frame and guarding arrangements provide several ways to arrange the workstation around the part.

The standard 115 mm total stroke and 15 mm power stroke distinguish loading clearance from the actual force-producing movement. Optional force and displacement monitoring can be included in the comparison, with the benefit coming from a documented combination of structure and controls rather than a claim that every OP machine fits any assembly.

Limitation: The standard 15 mm power stroke must cover the loaded portion of the operation.

8. EMG Presses: Best for Higher-force C-frame pressing with model-specific stroke options

Headquarters: Marigny-Saint-Marcel, France / 1966 (manufacturer's stated foundation year) / Press manufacturer; EMG trademark of LONG

Official website: https://www.emgpresses.com/

Main products: 7T, 13T, 30T, 50T, 75T and 100T hydropneumatic presses

Published capabilities: Metric page gives 7–100 tonne class; 100T table 100–300 mm total/8–12 mm power stroke

Quality information: Corporate page states ISO 9001 certification dating to 2000

EMG organizes its metric range as 7T, 13T, 30T, 50T, 75T and 100T models with several cylinder combinations. The 100T entry’s 100–300 mm total travel and 8–12 mm power stroke suit comparison of operations needing substantial loading clearance but a short final pressing action.

EMG describes assembly and testing at Marigny-Saint-Marcel. Its metric catalogue offers six standard C-frames and 60 cylinders, providing several model-and-stroke combinations.

Limitation: The 100T model's 8–12 mm power stroke is much shorter than its total travel.

9. mäder pressen: Best for Deep-throat access within a compact bench-press range

Headquarters: Neuhausen ob Eck, Germany / 1950s; focused on presses from 1968 / Assembly press manufacturer

Official website: https://maederpressen.de/

Main products: HP and XL-HP hydropneumatic presses

Published capabilities: 42/100 kN; 50 mm total stroke; HP throat 150 mm and XL-HP throat 300 mm

Quality information: ISO 9001:2015 quality management, according to its website

Mäder’s HP and XL-HP families are relevant where the tool needs to reach farther into a part. The reviewed selection pairs 42 kN and 100 kN classes with 150 mm or 300 mm throat dimensions, giving buyers a defined access comparison.

A deeper throat can bring a feature farther from the part’s edge under the tool, but doesn’t increase available travel or establish the force required by the operation. Compare force class, throat and tool position together; the XL designation alone doesn’t establish an unrestricted heavy-duty machine.

Limitation: The published HP/XL-HP selection has a 50 mm total stroke.

10. Gechter: Best for H-frame assembly with separate approach and power-force specifications

Headquarters: Obermichelbach, Germany / Not established from reviewed sources / Press manufacturer

Official website: https://www.gechter.de/

Main products: HPPV and HPPS H-frame hydropneumatic presses

Published capabilities: 500 kN HPPV: 500 kN power force at 6 bar, 50 mm total / 6 mm power stroke, 14 kN approach force

Quality information: Official certificates page lists ISO 9001:2015 with a 2026–2029 certificate link

Gechter’s 500 kN HPPV makes the pressing stages explicit: 14 kN approach force, 500 kN power force and 13 kN return force at the published conditions. That distinction is useful for an H-frame operation requiring a short, high-force action after the tool approaches the component.

The same model lists a 360 mm installation height, 450 mm installation width and pillar guidance. For tooling intended to bend or insert parts, those dimensions provide a starting point for fitting the workpiece, while the separate stroke and control options define which complete arrangement belongs in the final proposal.

Limitation: The 500 kN HPPV standard lists 6 mm power stroke; longer-stroke options and optional controls must be specified separately.

11. Air-Hydraulics: Best for US-built air-over-oil presses with custom tooling and controls

Headquarters: Jackson, Michigan, USA / 1945 / Press and intensifying-cylinder manufacturer

Official website: https://www.airhydraulics.com/

Main products: AH air-over-oil C-frame presses and separately supplied cylinders

Published capabilities: AH 4–50 ton nominal family; standard 0.500 in power stroke; force table at 100 psi

Quality information: ISO 9001:2015 Quality System Registration, according to its website

Air-Hydraulics describes AH equipment as air-over-oil presses, a category of air presses, connecting the family with the hydropneumatic category. Its 4–50 ton nominal models use a force table based on 100 psi air, with a standard 0.500 in power stroke inside a longer 6 in or 8 in total stroke.

Custom tooling, control and monitoring provisions include load-cell and distance-related options for projects requiring more than the base press structure. For a US equipment enquiry, the AH table supplies the model starting point, with the chosen tooling and controls defined around the loaded portion of the movement.

Limitation: The standard half-inch power stroke is the loaded travel, not the whole ram stroke.

12. HyperCyl / Aries Engineering: Best for Selecting a cylinder and press around sample-part tests

Headquarters: Dundee, Michigan, USA / 1994 (Aries/AEC and HyperCyl history) / Hydra-pneumatic cylinder and press manufacturer

Official website: https://www.hypercyl.com/

Main products: HPI/HPS/HPX cylinders; HyperPress C/H-frame and CGB presses

Published capabilities: CGB low-profile presses 2–30 ton; HPI cylinders 1–200 ton, application-dependent stroke

Notable product detail: Application Test Lab evaluates force/distance, time and finished-part requirements.

HyperCyl’s HPI cylinders and complete HyperPress machines are different product selections, so the 1–200 ton cylinder range can’t be assigned to the 2–30 ton CGB presses. The HPI limits of up to 16 in total travel and 2 in power stroke also remain dependent on force and application.

Aries Engineering’s application test lab evaluates sample parts against force, distance, time and finished-part requirements before final machine selection.

Limitation: The low-profile CGB press range stops at 30 tons; higher-force projects require a different press arrangement.

13. LDP Italia: Best for A modular press or frame-and-unit assembly for an integration project

Headquarters: Bariano, Bergamo, Italy / 1976 (company's stated design/manufacturing history) / Hydropneumatic press and thrust-unit manufacturer

Official website: https://www.ldpitalia.com/

Main products: DP-Type presses, DPS-Type frame/unit assemblies and E-Type EPK heads

Published capabilities: DP-Type uses E-Type EPK head; DPS supplied as frame plus unit for integration

Quality information: DP product page declares conformity to Machinery Directive 2006/42/EC; not a management-system certificate

LDP’s DP-Type press and DPS-Type frame-and-unit assembly serve different integration requirements. The DP uses an E-Type EPK pressing head, while the DPS gives a machine builder an assembly to incorporate into a larger system.

A moving-platen option provides an additional way to arrange tooling and part access. Magnetic sensors can be fitted directly to the E-Type unit to provide signals for integration into a production line.

Limitation: A DPS frame-plus-unit assembly leaves more integration work than a finished controlled station.

14. G.P.A. Italiana: Best for Choosing clearly defined supply levels for machine integration

Headquarters: Lomazzo, Como, Italy (registered office) / 1962 / Automation unit, press and power-unit manufacturer

Official website: https://www.gpa-automation.com/

Main products: PCM/PPCM presses and CM hydropneumatic power units

Published capabilities: 20–320 kN family; frame/unit, controlled integration unit or standalone control options

Quality information: ISO 9001 quality system qualified by TÜV since 1994, according to its website

G.P.A. makes supply scope visible through a frame and power unit, a controlled unit for integration, and a standalone arrangement. Its 20–320 kN PCM/PPCM family can therefore enter an enquiry at the equipment level appropriate to the buyer’s remaining engineering work.

The company also presents CM power units and optional quality-monitoring and Ethernet integration features. Keeping those options attached to the selected configuration helps define responsibilities when a press becomes one station in an automated process, instead of assuming that every basic assembly includes the full control package.

Limitation: The basic frame/cylinder supply doesn’t include the controls of a standalone workstation.

Application-Focused Press Manufacturers

Application examples: cable crimping, feeding and assembly automation, and optional force-versus-stroke monitoring.

The following six companies are useful starting points for projects involving fixtures, frame choices or surrounding assembly functions. Published examples range from a named brake-cable crimping machine to feeding and process-data options. Those examples establish a relevant offering; they don’t prove that a new part or material has already been qualified on the equipment.

15. Mercury Pneumatics: Best for Indian press or cylinder projects with several frame choices

Headquarters: Mumbai, India / 1980 (pneumatic-product production began) / Press and cylinder manufacturer

Official website: https://www.mercuryindia.net/

Main products: A/H/N cylinders; Z systems; two/four-column and compact C-frame presses

Published capabilities: Published complete-system and cylinder range 1–45 tonnes; customized strokes up to 150 mm

Notable product detail: S series addresses shaft straightening rather than a generic assembly task.

Mercury’s 1–45 tonne offering includes systems and cylinders, with two-column, four-column and compact C-frame arrangements. A, H, N and Z family distinctions and customized strokes up to 150 mm give an engineer several starting points for choosing the actual mechanical layout.

Published shaft-straightening equipment provides a more specific application reference than a general industry list. Mercury is relevant when an Indian project needs to compare frame formats while retaining the possibility of purchasing only a cylinder; neither route should inherit the controls or access dimensions of another family by assumption.

Limitation: The system and cylinder options require separate frame, control and tooling specifications.

16. National Pneumatic Systems: Best for Custom presses for cutting, crimping and assembly in India

Headquarters: Vasai, Maharashtra, India / 2006 / Custom press and cylinder manufacturer

Official website: https://nationalpneumaticsystems.com/

Main products: Two/four-pillar, C-frame and compact C-frame presses; standard/split cylinders

Published capabilities: Product page specifies 6 bar air supply and configurable frame formats

Notable product detail: Published machines include anti-rotation C-frame and blister-cutting arrangements.

National offers pillar, C-frame and compact C-frame equipment alongside standard and split cylinders, with its product page specifying a 6 bar air supply. That variety helps a project that must punch or crimp parts, or assemble components address part loading and tool access alongside the force requirement.

Published examples include anti-rotation C-frame presses and blister-cutting equipment. These give buyers concrete starting points for projects involving tool orientation or packaging operations.

Limitation: The frame family is configurable; model force and loaded travel are quotation-specific.

17. S S Air Hydro Power: Best for Cable crimping and application-specific fixtures

Headquarters: Samaypur, Delhi, India / 2014 / Hydraulic, hydropneumatic and pneumatic equipment manufacturer

Official website: https://www.ssairhydro.com/

Main products: Two/four-pillar, C-frame, cable-crimping presses and cylinders

Published capabilities: A named brake-cable crimping press is rated 15 ton; PLC/HMI and load-cell versions shown

Notable product detail: C-frame variants show PLC/HMI, light curtain and load-cell arrangements.

S S Air Hydro Power’s named 15 ton brake-cable crimping press provides a specific application reference for cable assembly. Other versions show PLC/HMI, light-curtain or load-cell provisions, which belong to the arrangements in which they’re offered.

The catalogue also includes pillar and C-frame arrangements for projects needing different fixtures. For an automotive buyer, the brake-cable example establishes product relevance, while qualification of a new cable end, material or crimp geometry still requires the buyer’s actual process and strength requirements.

Limitation: The 15 ton rating belongs to the brake-cable machine, not every pictured press.

18. Neumatica Technologies: Best for Press stations combined with feeding and assembly automation

Headquarters: Peenya, Bangalore, India / 1992 / Press and assembly-automation manufacturer

Official website: https://www.neumaticaglobal.com/

Main products: Hydropneumatic, hydraulic and servo presses; general/special-purpose assembly machines

Published capabilities: Published basic-press options include PLCs, vibrating feeders, multi-tool stations and operation-data storage

Notable product detail: Cable-crimping, trimming and other basic machines are supported by automation options.

Neumatica combines press equipment with surrounding assembly functions, including published options for vibrating feeders, multi-tool stations and operation-data storage. That makes it relevant when purchasing extends beyond a ram and fixture to repetitive operations, part handling and line interfaces.

Its broader range includes hydropneumatic, hydraulic and servo technologies, without establishing one as universally optimal for automation. For an electronics assembly enquiry using hydropneumatic equipment, the selected model’s force, working stroke and control specification must accompany the proposed feeding arrangement; general-purpose features don’t define those model values.

Limitation: Feeding, multi-tool operation and production-data capture need to be specified with the press as an integrated station.

19. Synergetic Automation: Best for Custom assembly stations with force-versus-stroke feedback

Headquarters: Nashik, Maharashtra, India / Not established from reviewed sources / Special-purpose machine and press manufacturer

Official website: https://www.synergeticautomation.com/

Main products: Standard/custom hydropneumatic presses and assembly automation

Published capabilities: Optional force-versus-stroke monitoring on hydropneumatic presses

Notable product detail: The machine offer spans riveting, pressing and assembly-line integration.

Synergetic presents standard and custom hydropneumatic presses with optional force-versus-stroke monitoring. The option is relevant to assembly work where the pressing signature matters alongside confirmation that the ram reached its end position.

Sensors, evaluation criteria and the response to a rejected cycle need to be included in the proposed station. The company’s assembly-automation offering provides a route for that discussion, with standard and custom builds compared on the same defined scope rather than an unspecified promise of automation readiness.

Limitation: Force/stroke monitoring is an option that must be included in the station specification.

20. C MATIC CONTROL: Best for Mumbai-built C-frame equipment alongside component integration

Headquarters: Vikhroli, Mumbai, India / 2019 (LLP incorporation, Tracxn) / Press manufacturer and automation component distributor

Official website: https://www.cmaticcontrol.com/

Main products: Own-built C-frame, H-frame, four-column and tabletop hydropneumatic presses

Published capabilities: C-frame 0.4–30 tonnes, 5–7 bar, 50–200 mm total and 5–30 mm working stroke

Notable product detail: Product page states pressure-leak testing and material test certificates.

C MATIC’s own press page distinguishes manufactured equipment from the industrial components it also supplies. Its C-frame specification provides 0.4–30 tonnes, 5–7 bar air, 50–200 mm total stroke and 5–30 mm working stroke as a concrete starting point.

H-frame, four-column and tabletop equipment give the buyer other part-loading arrangements to consider. Keep the chosen frame, total travel and loaded stroke together: the wider advertised 100-ton range includes other arrangements and doesn’t extend every C-frame model to that force.

Limitation: The C-frame limit is 30 tonnes; the advertised 100-ton total range covers other arrangements.

How to Choose a Hydropneumatic Press Manufacturer

Five buying checks: supply scope, loaded travel, pressure basis, complete-station contents, and monitoring with acceptance.

Choose a supplier based on the equipment offered that best meets the requirements of the operation, and then assess loaded travel, available air pressure and control requirements. The best shortlist for various industrial tasks may contain suppliers with different catalog maxima since the relevant comparison is the equipment proposed. A press that reaches the required force only over a short power stroke may be appropriate for one assembly and not for the other. Balancing speed and power begins with that particular movement, even on a small-scale production station.

What Belongs to the Drive and What Belongs to the Press?

A hydropneumatic drive produces motion and intensified pressing force; a complete press also needs a structure, tool mounting, controls and an appropriate safeguarding arrangement. The drive’s force rating doesn’t establish the frame’s load capacity, the assembled machine’s precision or its operating safety. SIMITCH’s drive families and G.P.A.’s different supply levels make that purchasing distinction visible.

For an existing machine builder, a cylinder can be the intended purchase. The builder may already own the frame design, choose control valves and define how the piston and rod connect to the tool. A production department buying its first station usually needs a wider supply scope. Neither approach is inherently better. The quotation needs to allocate the actual work, including installation and the final machine assessment.

Match Force to the Loaded Travel

Start with how far the tool must move while doing work. Gechter’s standard 500 kN HPPV lists 50 mm total stroke but 6 mm power stroke; Alfamatic’s OP specification lists 115 mm and 15 mm, respectively. These are different motion envelopes, not an overall ranking of machine quality. Clearance for inserting the workpiece belongs to total travel, while the loaded movement must fit the applicable force-producing stroke.

A nominally high-force machine isn’t automatically suitable for a long forming movement. Conversely, a short pressing action doesn’t justify an oversized drive without checking the tooling and frame. Obtain the model’s force-versus-travel information at the pressure available to the machine, and keep return force separate when the tool must pull away from a tight-fitting component. Gechter’s separate approach, power and return ratings illustrate why one headline number is incomplete.

Keep the Published Pressure Basis with the Force

Compressed air drives the pneumatic stage, while the intensified hydraulic chamber produces the working force. Air pressure and oil pressure are therefore different quantities within the system. SIMITCH lists some series at 6 bar air and others at specified oil pressures; Air-Hydraulics publishes AH force values at 100 psi air. Copying the force without its pressure basis removes information needed to size the machine.

The same is true of units. Preserve kN, tonnes or the supplier’s stated ton convention until the basis is clear. Don’t assume a capacity increase with an unexplained change of regional catalog descriptions. Estimates of air consumption and cycle times require a named model and operating cycle; the presence of a self-contained hydraulic stage alone doesn’t determine a measured efficiency advantage or a sustainability result.

What Should a Complete-Station Quotation Include?

A complete-station quotation should include the drive, frame, tools, controls, process monitoring, guarding and the work to install and qualify the equipment. Each of these affects the buyer’s operational scope at the time of delivery. A quotation for a bare cylinder, or a frame-and-unit assembly, can’t define the cost of a production-ready workstation, even when its advertised pressing force matches.

G.P.A. draws a distinction between base and controlled supply levels in the same way that LDP distinguishes an integration assembly from its press offering. Use these distinctions to evaluate proposals. For manual loading, tool access and protective arrangements should be defined in the machine description; if feeding is automated, the interface and cycle sequence should be described there as well. An optional light curtain, two-hand control, or force monitor should appear as a selected configuration, not based on a catalog photo.

Set the Process-Monitoring and Acceptance Requirements

For pressing solutions that assemble interference-fit parts, force and displacement monitoring can be used to distinguish an expected operation from a different force signature. Force control and process monitoring serve different functions. Observing a pressing signature doesn’t in and of itself determine what constitutes a “good” part. The acceptance criteria must connect the signal to the component, tooling, and the desired outcome; therefore, the sample-part test capability of HyperCyl and SCHMIDT’s controller choices are worth considering.

Ask for a demonstration of the proposed model and configuration on the relevant operation where feasible. A repeatable cycle on unrelated parts doesn’t establish the required tolerance or joint strength. Compare maintenance access, replacement seals, local service and technical documents to assess a claim of low maintenance for the machine in question. Evaluating cost-effectiveness requires the support scope and functions your process will use; a versatile catalogue alone doesn’t demonstrate lower ownership cost.

For safety requirements, ISO 16092-4:2019 covers pneumatic-press safety. The assessment of the relevant machine and applicable requirements must follow the actual equipment and use; citing the standard doesn’t certify any manufacturer in this list. The company’s quality-system credentials, product conformity statements and acceptance of the finished station are separate questions. Verify the latest technical documents and exactly what is ordered and who is responsible before placing the order.

If the operation is specifically a clinching assembly, SIMITCH’s press equipment for pneumatic and servo clinching and guide to choosing a clinching press configuration provide related application context. The comparison of sheet-metal joining methods addresses the prior question of which joining process fits the assembly.

Frequently Asked Questions

Which Is the Best Hydropneumatic Press Manufacturer for Monitored Assembly?

SCHMIDT and Alfamatic are relevant starting points for a framed press with monitoring options.

SCHMIDT connects its HydroPneumaticPress family to PressControl choices, while Alfamatic offers monitoring within its OP press arrangements. Compare the actual press, sensors and controller included in each proposal. A machine builder who already owns the frame may instead buy a cylinder and specify monitoring separately. The right supplier depends on that supply boundary and the part’s acceptance requirements, not a universal brand ranking.

Who Is the Largest Hydropneumatic Press Manufacturer in the World?

The reviewed sources do not establish a comparable global market-share leader for this category.

Company size, the number of offices and maximum catalogue force measure different things. A large hydraulic equipment business isn’t automatically the largest manufacturer of hydropneumatic assembly presses. This guide groups companies by documented product scope and application fit, without assigning market shares. A claim of global leadership in this sector would require a defined market, reporting period and comparable sales or shipment evidence that wasn’t available here.

What Is the Difference Between a Hydraulic Press and a Pneumatic Press?

A hydraulic press transmits force through liquid; a pneumatic press uses compressed air.

Hydropneumatic equipment combines air-driven motion with hydraulic intensification for the power stroke. In many designs, that high-force movement is shorter than the total travel. Choosing between pneumatic and hydraulic technologies requires the actual force, loaded movement and control needs. Manual presses belong in a different comparison when the task is operated entirely by hand. Neither label alone proves better precision, speed or reliability; those results depend on the machine, tooling and process as a complete system.

Is an Integrated or Split Hydropneumatic Drive Better for a Crowded Machine Frame?

A split drive allows the intensifier to be placed away from the working cylinder.

An integrated drive keeps those functions in one assembly, which can simplify the physical arrangement where sufficient space is available. A split layout gives the builder another placement option, with hydraulic connections and mounting access included in the design. SIMITCH identifies BS/BT as integrated families and AT/HZ as split families. Their force, pressure and stroke specifications remain series-specific; layout alone doesn’t establish the correct model.

How Much Does a Complete Hydropneumatic Press Cost?

Complete-station pricing depends on the drive, frame, tooling, controls and integration work included.

The reviewed public sources don’t provide consistent prices for equivalent complete stations. Compare quotations that identify the drive, frame, tooling, controls, monitoring, installation and service responsibilities. A bare-cylinder offer can’t establish the cost of a production-ready workstation. The engineering work needed to customize fixtures or automate part handling also belongs in the comparison, rather than being hidden behind an advertised starting price.

Can a Hydropneumatic Press Deliver Full Force Throughout Its Entire Stroke?

Many intensified designs separate a rapid approach from a shorter high-force power stroke.

Total travel therefore doesn’t establish the distance available at maximum pressing force. A long loaded movement needs a suitable drive and its matching force-versus-travel specification. EMG’s 100T model, for example, lists 100–300 mm total travel but only 8–12 mm power stroke. Begin with the required working stroke, then compare force and available pressure for the exact machine.

Define the Drive Scope Before Requesting a Quote

Request a drive quote with force, loaded travel, mounting space and air supply; SIMITCH split-drive example.

If your project needs a pneumohydraulic drive, share the required force, loaded travel, mounting space and available air supply with SIMITCH. The team can discuss the documented BS/BT and AT/HZ product routes against that scope. Read SIMITCH’s manufacturing background or send the drive requirements for a quotation, with the frame and station responsibilities identified.

References & Sources

The company profiles are based on manufacturers’ published product and corporate materials reviewed in October 2026. Website addresses are shown as plain text in the profiles. Specs and optional equipment remain tied to the stated model or family; the guide doesn’t claim independent performance testing.

]]> https://simitch.com/blog/top-hydro-pneumatic-press-manufacturers/feed/ 0 Top 15 Clinching Machine Manufacturers for Sheet Metal Joining https://simitch.com/blog/top-clinching-machine-manufacturers/ https://simitch.com/blog/top-clinching-machine-manufacturers/#respond Wed, 07 Oct 2026 10:06:20 +0000 https://simitch.com/?p=2666

Last updated: October 2026

The best clinching machine manufacturer depends on the application: TOX suits monitored production lines, BTM offers tooling-led equipment options, and Ductformer addresses duct flange assembly. SIMITCH supplies application-built HVAC and appliance equipment. The 15 companies below cover portable tools, stationary presses and custom systems, with different tooling, access and integration requirements.

Quick Picks by Application

Match six application needs to documented supplier offerings; based on the manufacturers' published equipment.

An appliance panel and a duct corner pose different demands on the joining head. With the assembly you make, you need to narrow the format of your equipment. These picks identify documented applications. They don’t rank joint strength, delivery speed or service quality across suppliers.

  • Best for application-built HVAC and appliance sheet-metal assembly: SIMITCH. Its application routes cover HVAC and appliance joining with portable and stationary equipment choices.
  • Best for monitored stationary and robotic clinching lines: TOX. ElectricDrive and MultiControl belong to a joining-system platform that extends beyond a single workstation.
  • Best for a tooling-led route from hand tools to automation: BTM. Tog-L-Loc tooling appears in portable, fixed and integrated equipment.
  • Best for portable shop-air clinching: Norlok. The Watson family targets work where a portable head can move around the assembly.
  • Best for HVAC duct flange and corner assembly: Ductformer. DFTL machines address specific duct-shop fastening operations.
  • Best for clinching within a custom multi-process assembly machine: AGME. It builds systems that integrate ECKOLD clinching technology.

Disclosure: This guide is published by SIMITCH. We list ourselves first because this is our website, not because we claim to be the market leader. The other 14 manufacturers are grouped by what they’re best for, in no particular order within each group.

How We Selected These Clinching Machine Manufacturers

Complete portable tools, fixed presses and assembly cells qualify; loose tooling alone does not. Selection-method illustration.

Selection required an identifiable organization responsible for manufacturing or integrating complete industrial rivetless sheet-metal clinching equipment, supported by an official product page. Company information was verified against official websites and public sources in October 2026. The selection excludes trading companies, distributors, sourcing platforms, directories, media websites, and used equipment dealers. The result shows businesses in North America, Europe, Asia and Australia. There’s no country quota.

The clinching equipment industry includes joining-technology manufacturers, application-specific machine builders and custom-system integrators. A company can build a complete machine around another manufacturer’s tooling; that relationship is identified where documented. Böllhoff and its Attexor entity count as one entry. Manufacturers of self-clinching fastener insertion equipment alone, or machines restricted to other joining processes, fall outside this comparison.

What is a clinching machine?

Overlapping sheet metal can be joined in a clinching machine by applying pressure between a matched punch and die. The rivetless clinching process uses the sheets themselves rather than an added fastener or welding heat. A mechanical interlock is achieved between the sheets. A complete portable tool or a stationary press can be used for the job, along with robot-mounted tongs or a customized assembly cell.

A drive unit or a loose die set alone isn’t a complete machine. The equipment must bring the tooling to the joint and apply the required forming action within the part’s access envelope. For a broader explanation of machine formats and operation, the clinching equipment guide covers that background. The comparison here concentrates on who builds the equipment and which purchasing requirements their published ranges address.

15 Clinching Machine Manufacturers Compared

Machine builder and tooling supplier can differ; examples follow BTM, Mid-Rivers, Ticklay and AGME official descriptions.

The entries include established joining platforms and specialized builders focused on a particular area of sheet-metal fabrication. A broad range of product options and a machine for a narrow application answer different customer procurement requirements. The advantages below describe documented features of clinching equipment. The drawbacks describe the application scope or configuration work that follows from these features.

15-Company Clinching Equipment Comparison

A comparison of complete clinching equipment providers by application, machine scope, tooling responsibility, and purchasing constraints.

Choose a clinching machine manufacturer from 15 equipment providers by application and delivery scope.
No. Company Name Headquarters Founded Year Best For Brief Introduction Equipment and Joining Scope Key Advantages Potential Disadvantages Official Website
1 SIMITCH Taicang, Suzhou, China 2006 Application-built HVAC and appliance sheet-metal assembly Clinching press manufacturer offering suspended tongs and fixed presses for application-specific sheet-metal work. CRH03 tongs; CEC and PC fixed clinching presses CRH03: 45 kN / 75 kN; CEC: 506 mm throat Part-specific configuration needed before like-for-like quote comparison simitch.com
2 TOX Weingarten, Germany 1978 Monitored stationary and robotic clinching lines Joining-system manufacturer combining clinching tongs, drives and controls for production equipment. Clinching tongs, ElectricDrive and MultiControl MultiControl coordination of up to 15 joining tongs Cell engineering needed for multi-tong installations tox.com
3 BTM Marysville, Michigan, USA 1966 A tooling-led route from hand tools to automation Manufacturer of clinching tooling and complete equipment, including its Tog-L-Loc joining technology. HHP hand tools, MCP presses, multi-point and in-die systems Tooling and equipment available across several production formats Hand-tool access and capacity remain configuration-specific btmcomp.com
4 ECKOLD St. Andreasberg, Germany 1936 Complex access and configurable clinching systems Clinching tools and systems manufacturer with portable, stationary and custom equipment. MCD 30/50 AH, MZD 25/3 PH, MFG 500/150 E Standard machines plus custom frames and robotic plants Tool selection changes with sheet count and material stack www.eckold.de
5 Böllhoff Bielefeld, Germany 1877 Portable-to-automated RIVCLINCH applications Fastening and assembly group supplying rivetless RIVCLINCH systems, including its Attexor business. RIVCLINCH 0201 IP, Automation E and modular C-frames Pneumatic portable and electric automated equipment options Access differs by system; 0201 IP jaw depth is 20 mm www.boellhoff.com
6 Norlok Brantford, Ontario, Canada 1994 Portable shop-air clinching and sheet metal workshops Canadian clinching equipment manufacturer serving portable joining, workshop and channel-letter applications. Watson, Letterlok 3000, EZ Clinch and Surelok Shop-air portable operation; selected stainless-steel tooling options Watson material capacities vary with model and tooling norlok.com
7 Jurado Italy 1999 Portable hydraulic-booster clinching clamps Portable-tool manufacturer with clamp formats for moving the joining head around sheet-metal assemblies. Python, Pirana and Mouse clinching clamps Python: 35 kN thrust; 3.7 kg clamp including handle Python total-stack limits differ between mild steel and stainless juradousa.com
8 Neumatica Bangalore, India 1992 Custom clinching around difficult sheet metal profiles Assembly and pressing equipment builder offering Klinch-Loc systems and custom joining solutions. Klinch-Loc KLK series and custom assembly machines Documented complex-profile applications and components up to 1000 mm Application-led range lacks one universal off-the-shelf capacity www.neumaticaglobal.com
9 Ductformer St. Louis, Missouri, USA Not publicly disclosed HVAC duct flange and corner assembly Duct-fabrication machinery manufacturer with a dedicated clinching range for duct-shop fastening. DFTL machines for corners and TDFC/TDC flanges Duct-specific application layout and standard laser locator Focused duct-shop scope rather than general automotive assembly ductformer.com
10 Mid-Rivers Machinery St. Peters, Missouri, USA Not publicly disclosed Deep-throat fixed clinching for sheet metal shops Air Cam machine builder supplying its own presses with identified BTM clinching tooling. AC-3-26 Air Cam and channel-letter clinchers; BTM tooling AC-3-26: 26-inch throat; published 28–14 gauge mild-steel range Published AC-3-26 capacity applies to mild steel midriversmachinery.com
11 Ticklay Engineering Thomastown, Victoria, Australia 1989 Thin-sheet HVAC and duct fabrication in Australia Sheet-metal fabricator and application-specific clincher builder using BTM joining tools. Pneumatic sheetmetal clincher with BTM tools Adjustable throat in a thin-sheet workshop machine Capacity of up to 0.7mm thick www.ticklayengineering.com.au
12 Heron Guangzhou, China 1991 (business origins) Custom clinching cells alongside wider joining automation Metal-joining equipment and automation manufacturer offering complete machines and BTM tooling products. 8T and 15T machines, servo guns and air-oil units Standard/custom equipment with optional monitors and sensors Machine and tooling responsibilities span distinct technology suppliers heron-welder.com
13 Computerized Cutters Plano, Texas, USA 1994 Rivetless channel-letter return-to-back assembly Sign-fabrication machine manufacturer supplying pneumatic equipment for joining metal channel-letter parts. Accu-Clinch machines for aluminum and light-steel letters Bottom-punch/top-die layout for return-to-back joining Metal-letter scope; separately offered SPR equipment uses rivets computerizedcutters.com
14 Press Lock Ontario, Canada 2020 Canadian-built workshop clinchers across several frame formats Clinching and riveting equipment manufacturer building bench, floor, handheld and channel-letter machines in Ontario. T-Rex, Thor, LockNess and MooseJaw equipment families T-Rex 4660: 40 kN / 65 kN; bench and handheld families Clinching and self-piercing-riveting configurations must be distinguished www.presslocktech.com
15 AGME Eibar, Spain 1948 Clinching integrated into a custom multi-process assembly machine Special assembly machine builder integrating an identified partner’s clinching technology into complete systems. Custom assembly machines incorporating ECKOLD clinching Documented gasket, seat-cushion and battery-component assembly applications Custom integration rather than a proprietary clinching-tool platform www.agme.net

Sources: the manufacturers’ published company and equipment pages; Norlok’s founding year is also documented by EMC Canada. Specifications describe the named equipment, not independently measured comparative performance. The Heron date refers to business origins, while Böllhoff’s date refers to the group’s history.

Reading across the table helps separate the joining process from the machine around it. BTM can supply both, while Mid-Rivers and Ticklay identify BTM tooling in equipment they build. AGME combines ECKOLD clinching with its own assembly-machine engineering. Those distinctions explain why two quotations can share a tooling name but contain very different frames, fixtures, controls and service responsibilities.

Multi-Application Clinching Systems

Compare frame, joining head, drive and controls as one configured system; SIMITCH fixed-press photo.

These manufacturers offer equipment in multiple formats or configurable system platforms. Their ranges cover the transition from a manually positioned joint to integrated production. The practical differences are in the available frame, joining head, drive and control arrangement as well as the manufacturer responsible for the tooling.

1. SIMITCH: Best for application-built HVAC and appliance sheet-metal assembly

Headquarters: Taicang, Suzhou, China · Founded: 2006 · Type: clinching press manufacturer

Official website: simitch.com

Main products: CRH03 suspended tongs; CEC and PC fixed presses; portable handheld clinching equipment

Equipment scope and tooling relationship: complete application-configured presses and tooling for sheet-metal assembly

Notable work: SIMITCH publishes CRH03 force options of 45 kN and 75 kN. Its CEC specification lists 78 kN, a 506 mm throat and a 933 mm working height; the PC floor-press family spans 78 kN to 990 kN.

SIMITCH organizes its offer around the part being assembled, with HVAC and household appliances among its named applications and both movable joining heads and fixed presses in its published range. The company’s clinching equipment configurations give buyers starting formats, while the stated model dimensions make the distinction between moving a tool to the work and presenting a panel to a press more concrete. Its application-selection process uses material stack, part geometry, load requirements, access and production timing to define a configuration. The purchasing limitation is that this approach requires part-specific tooling and configuration work, so a buyer seeking a fixed, interchangeable catalogue machine needs that scope defined before comparing quotations.

2. TOX: Best for monitored stationary and robotic clinching lines

Headquarters: Weingarten, Germany · Founded: 1978 · Type: joining-technology and equipment manufacturer

Official website: tox.com

Main products: clinching tongs, ElectricDrive and MultiControl

Equipment scope and tooling relationship: TOX joining technology, drives, tongs and control systems for stationary or robotic installations

Certifications / notable work: the German headquarters website lists ISO 9001:2015 and ISO 14001:2015; TOX states that MultiControl can manage up to 15 joining tongs in one line.

TOX connects the joining head to a wider controls platform, which makes its range relevant when a production line needs several coordinated joining stations rather than one manually operated press. According to its system page, ElectricDrive and MultiControl form part of that equipment architecture, so monitoring and the drive belong in the initial system discussion. The 15-tong figure describes a control-system capability, not finished-part output, because each assembly still has its own handling and joining sequence. A multi-tong installation requires application-specific tooling and cell integration, making it a more involved purchase than a standalone tool for occasional workshop use.

3. BTM: Best for a tooling-led route from hand tools to automation

Headquarters: Marysville, Michigan, USA · Founded: 1966 · Type: clinching tooling and equipment manufacturer

Official website: btmcomp.com

Main products: Tog-L-Loc tooling, HHP hand tools, MCP presses and automated systems

Equipment scope and tooling relationship: BTM develops joining tooling and supplies portable, stationary, multi-point and in-die equipment.

Certifications / notable work: BTM Company LLC’s published ISO 9001:2015 certificate is valid through November 19, 2027.

BTM’s equipment catalogue connects its Tog-L-Loc technology with several ways of carrying out the joint, including hand tools, presses and machinery integrated into another production operation. That range is useful for manufacturers deciding whether an established joint should remain a manually positioned operation or become part of an automated assembly sequence. BTM tooling also appears in machines built by other companies in this list, so its role extends beyond the complete machines sold under its own name. The relevant limitation is configuration-specific access: a particular HHP hand-tool frame and die arrangement has a defined work envelope, and that portable configuration doesn’t represent the reach or capacity of BTM’s wider equipment range.

4. ECKOLD: Best for complex access and configurable clinching systems

Headquarters: St. Andreasberg, Germany · Founded: 1936 · Type: clinching tools and systems manufacturer

Official website: www.eckold.de

Main products: MCD 30/50 AH, MZD 25/3 PH and MFG 500/150 E standard machines

Equipment scope and tooling relationship: ECKOLD clinching technology in portable and stationary machines, custom frames and robotic plants

Certifications / notable work: its website publishes entity-specific ISO 9001 and ISO 14001 certificates alongside its standard-machine and custom-system offerings.

ECKOLD’s published range spans individual portable or stationary machines and engineered installations, giving it a practical place on shortlists where a bent profile or restricted joining position drives the equipment layout. The named standard machines provide identifiable starting points, while custom frames and robotic plants extend the range to assemblies that require another approach to handling or access. ECKOLD is also the clinching technology partner named by AGME, a separate machine builder included below. Selection remains dependent on sheet count, material and individual thicknesses: a catalogue tool that reaches the joint location isn’t automatically the appropriate punch-and-die combination for every stack placed inside it.

5. Böllhoff: Best for portable-to-automated RIVCLINCH applications

Headquarters: Bielefeld, Germany · Founded: 1877 · Type: fastening and assembly systems manufacturer

Official website: www.boellhoff.com

Main products: RIVCLINCH 0201 IP, Automation E and modular C-frame systems

Equipment scope and tooling relationship: rivetless RIVCLINCH technology and equipment; Böllhoff and Attexor are counted together here.

Certifications / notable work: group quality pages list ISO 9001:2015 and other location-specific certifications. Böllhoff specifies its 0201 IP at 25 kN and 6 bar, with a 2.9 kg work head and maximum thicknesses of 2.5 mm for mild steel or 1.8 mm for stainless steel; Automation E has 67 kN total force.

RIVCLINCH gives Böllhoff a dedicated metal-joining range that includes a compact portable tool and equipment intended for automated installations. According to the product page, the 0201 IP provides a 20 mm jaw depth, a useful example of how a small tool’s physical access differs from a configurable C-frame system. Automation E belongs to the electric automated side of the offering, so the group is relevant to purchasers considering either handheld operation or integration into a production cell. The limitation is the difference between those access envelopes: the 0201 IP’s shallow reach restricts that model’s joint locations, but it doesn’t define the reach of all Böllhoff clinching systems.

HVAC and Workshop Clinching Equipment

Plan tool access around flange and joint locations; SIMITCH movable joining-head example from its product page.

Workshop equipment often needs to work in the assembly sequence used by a fabricator. A portable clamp moves around the workpiece; a fixed press requires the workpiece to move into its throat. Duct corners, return flanges, and deep panel joints help workers visualize the difference before forming force or power enters the picture.

6. Norlok: Best for portable shop-air clinching and sheet metal workshops

Headquarters: Brantford, Ontario, Canada · Founded: 1994 · Type: clinching equipment manufacturer

Official website: norlok.com

Main products: Watson portable clinchers, Letterlok 3000, EZ Clinch and Surelok floor machines

Equipment scope and tooling relationship: complete portable and stationary clinching machines for workshop and sign-fabrication applications

Notable work: Norlok lists Watson capacity up to two layers of 14-gauge (2 mm) sheet, or two layers of 18-gauge (1.25 mm) stainless steel with optional tooling. The portable equipment operates from shop air.

Norlok combines portable joining equipment with dedicated workshop machines, allowing buyers to distinguish a movable clinching head from a floor-mounted production station within one manufacturer’s range. The Watson family is especially relevant where a large assembly is easier to leave in place while an operator brings the tool to each joint, and Letterlok 3000 identifies a separate channel-letter application. Watson capacity and stainless-steel suitability depend on the selected model and tooling, so the portable family shouldn’t be treated as having one material rating shared by every configuration.

7. Jurado: Best for portable hydraulic-booster clinching clamps

Headquarters: Italy · Founded: 1999 · Type: portable clinching tool manufacturer

Official website: juradousa.com

Main products: Python, Pirana and Mouse clinching clamps

Equipment scope and tooling relationship: portable hydraulic-booster clamp systems for rivetless sheet-metal joining

Notable work: Jurado publishes 35 kN thrust and a 3.7 kg clamp weight including the handle for Python, with maximum air pressure of 6 bar, maximum hydraulic pressure of 360 bar and a stated tool cycle time of 0.8 s.

Jurado’s clamp-based range suits assemblies where bringing the joining head to the work is more practical than feeding the entire part through a stationary press. Python’s published weight describes the clamp with its handle, making it a more useful handling reference than a number presented without the included equipment, while its thrust figure describes the tool rather than the strength of a finished joint. The detailed Python specification table gives maximum total thicknesses of 3.0 mm for mild steel and 2.4 mm for stainless steel. Those different material limits are the purchasing constraint: the steel and stainless figures aren’t interchangeable, and neither represents a universal capacity for every combination of sheets or coatings.

8. Neumatica: Best for custom clinching around difficult sheet metal profiles

Headquarters: Bangalore, India · Founded: 1992 · Type: assembly and pressing equipment manufacturer

Official website: www.neumaticaglobal.com

Main products: Klinch-Loc KLK series and custom assembly solutions

Equipment scope and tooling relationship: complete clinching machines and application-specific pressing or assembly equipment

Notable work: the company’s clinching page describes custom machines for complex bent profiles and components up to 1000 mm.

Neumatica places Klinch-Loc within a wider assembly and pressing business, with published examples that emphasize the shape of the part rather than a single general-purpose machine format. Complex bent profiles can make the route into a joint as important as the force applied there, which explains this builder’s fit for work that needs a custom frame or arrangement. The stated component size of up to 1000 mm describes its documented application scope; it isn’t a sheet-thickness rating or a claim that every point on a component is accessible. Because the offering is application-led, the overall range description doesn’t supply one off-the-shelf capacity that a buyer can apply to every Klinch-Loc installation.

9. Ductformer: Best for HVAC duct flange and corner assembly

Headquarters: St. Louis, Missouri, USA · Founded: Not publicly disclosed · Type: duct-fabrication equipment manufacturer

Official website: ductformer.com

Main products: DFTL clinching machines

Equipment scope and tooling relationship: complete machines for duct corners and TDFC/TDC flange joining

Notable work: Ductformer lists a standard laser locator for its DFTL clinching equipment.

Ductformer’s DFTL range is built around recognizable duct-shop operations, making its application description more specific than a general claim to join metal. The published combination of corner and flange work, together with a laser locator for positioning, gives fabricators a concrete starting point when their recurring task is assembling those duct features. A buyer comparing DFTL equipment with a portable clamp is therefore comparing different ways to present and locate the duct joint, even though both use mechanical joining. DFTL’s limitation follows directly from that focus: it’s a duct-shop fastening machine, rather than a general automotive assembly platform intended to coordinate varied components through a multi-station production cell.

10. Mid-Rivers Machinery: Best for deep-throat fixed clinching for sheet metal shops

Headquarters: St. Peters, Missouri, USA · Founded: Not publicly disclosed · Type: Air Cam press and clinching machine manufacturer

Official website: midriversmachinery.com

Main products: Air Cam AC-3-26 and channel-letter clinchers

Equipment scope and tooling relationship: Mid-Rivers builds the machine; its AC-3-26 product page identifies standard BTM tooling.

Notable work: AC-3-26 has a published 26-inch throat and a 28 to 14 gauge mild-steel capacity range. Mid-Rivers specifies connection to shop air at 80–100 psi.

The AC-3-26 is a fixed-machine option for sheet-metal shops that need to bring a joint farther inside the part to the punch and die. Its 26-inch throat is a defined machine dimension, while the standard BTM tooling statement clearly separates the Air Cam machine builder from the joining-tool technology supplier. Mid-Rivers also lists channel-letter clinchers, giving its machinery range another identifiable fabrication application rather than only an unconfigured press. The material limitation is specific: AC-3-26’s published capacity concerns mild steel, so that gauge range doesn’t establish the corresponding capacity for stainless steel, aluminum or a mixed-material stack with different forming behavior.

11. Ticklay Engineering: Best for thin-sheet HVAC and duct fabrication in Australia

Headquarters: Thomastown, Victoria, Australia · Founded: 1989 · Type: sheet-metal fabricator and clincher builder

Official website: www.ticklayengineering.com.au

Main products: pneumatic sheetmetal clincher with BTM tools

Equipment scope and tooling relationship: Ticklay manufactures the clinching machine and identifies BTM as the tooling supplier.

Notable work: its product page describes an adjustable throat, workshop air up to 100 psi and advertised capacity up to 0.7 mm.

Ticklay’s background in sheet-metal fabrication is reflected in a clincher aimed at the thin-sheet work of HVAC and duct shops. The adjustable throat addresses machine setup around the workpiece, while the explicit BTM tooling relationship tells the buyer which part of the joining system belongs to another manufacturer. This is an application-specific machine-building offer within an Australian fabrication business, with a narrower published description than the multi-format joining platforms earlier in the list.

Specialized and Custom Assembly Machines

Specialist letter-making equipment and custom assembly cells serve different purchases; published application comparison.

Specialized builders can address a repeatable geometry or incorporate joining into a larger sequence. Two categories covered in this report are dedicated equipment for the sign making sector and workshop use, as well as custom machines incorporating clinching with other production tasks. The role descriptions are separate from the ownership of the underlying joining tooling.

12. Heron: Best for custom clinching cells alongside wider joining automation

Headquarters: Guangzhou, China · Founded: 1991 business origins · Type: metal-joining equipment and automation manufacturer

Official website: heron-welder.com

Main products: 8T and 15T clinching machines, servo guns and air-oil units

Equipment scope and tooling relationship: standard and custom machines; the clinching catalogue also includes BTM tooling products.

Certifications / notable work: Heron states ISO 9001:2015 certification on its website and lists optional monitors and sensors for its equipment.

Heron combines clinching equipment with a broader metal-joining automation business, which makes it relevant when the machine forms one operation within a larger assembly project. Its catalogue names both conventional machine formats and servo guns, giving the buyer a clearer picture of possible equipment forms than a single general automation claim. The company’s stated history traces its business origins to 1991, rather than identifying that year as the incorporation date of its current legal entity. The quotation boundary needs particular attention because complete-machine engineering and BTM tooling appear in the same offering: the delivered system can involve separate machine and tooling suppliers with different technical responsibilities.

13. Computerized Cutters: Best for rivetless channel-letter return-to-back assembly

Headquarters: Plano, Texas, USA · Founded: 1994 · Type: sign-fabrication machine manufacturer

Official website: computerizedcutters.com

Main products: Accu-Clinch channel-letter fastening machines

Equipment scope and tooling relationship: complete pneumatic machines for joining aluminum or light-steel channel-letter components

Notable work: the published Accu-Clinch design places the punch below the work and the die above it for return-to-back joining.

Computerized Cutters applies rivetless clinching to sign production, where the shaped return must be attached to the letter back within the available working space. Its bottom-punch/top-die layout is a concrete machine feature tied to that operation, and the stated aluminum or light-steel application keeps the material scope focused on the metal parts described by the manufacturer. For a sign shop, that defined task is more informative than comparing the machine with a larger press solely by force. The limitation is the joining route and material application: Accu-Clinch serves metal channel letters, while the separately offered SPR equipment uses rivets for other back materials and shouldn’t be treated as the same rivetless process.

14. Press Lock: Best for Canadian-built workshop clinchers across several frame formats

Headquarters: Ontario, Canada · Founded: 2020 · Type: clinching and riveting equipment manufacturer

Official website: www.presslocktech.com

Main products: T-Rex, Thor desktop and floor machines, LockNess and MooseJaw

Equipment scope and tooling relationship: bench, floor, channel-letter and handheld equipment built in Ontario

Notable work: Press Lock lists T-Rex 4660 with 40 kN and 65 kN options, alongside the 40 kN T-Rex 4830 InReach and 72 kN T-Rex Titan 8660.

Press Lock’s range gives workshop buyers several physical formats to consider, including equipment intended to sit on a bench, stand on the floor or move to the assembly. According to its website, the machines are built in Ontario, and the named families give procurement teams identifiable products to discuss instead of only a general custom-engineering offer. The combination is relevant when a shop performs more than one sheet-metal assembly task and wants to compare the handling implications of different machine forms. Its range also includes self-piercing riveting, so the limiting purchase distinction is process selection: a riveting configuration and a rivetless clinching configuration can’t be assumed to use the same tooling or produce the same joint.

15. AGME: Best for clinching integrated into a custom multi-process assembly machine

Headquarters: Eibar, Spain · Founded: 1948 · Type: custom assembly machine builder and system integrator

Official website: www.agme.net

Main products: special assembly machines integrating ECKOLD clinching

Equipment scope and tooling relationship: AGME builds and integrates the assembly machine; ECKOLD supplies the identified clinching technology.

Certifications / notable work: AGME announced renewal of its ISO 9001 quality certificates in 2023; published clinching applications include head gaskets, seat cushions and battery-component assembly.

AGME belongs on a shortlist when the required purchase is a complete assembly machine incorporating clinching alongside other operations. Its official technology-partner page names ECKOLD directly and describes component applications, giving the integration role a clearer basis than a generic claim to automate manufacturing. The value of this route lies in organizing the handling and joining tasks around the finished assembly rather than choosing a standalone head in isolation. AGME’s limitation is correspondingly specific: it’s a custom-system choice using a partner’s clinching technology, rather than a separate proprietary clinching-tool platform for buyers seeking only a standard tool family.

How to Choose a Clinching Machine Manufacturer

Eight quotation checks cover the material stack, access, joint, cycle, equipment, support, acceptance and certificate scope.

A machine that can be configured to make a defined part provides a basis for a useful quote. The eight checks that follow help in distinguishing a machine that can apply force from a system configured to make the required joints. The inputs help builders customize equipment. The costs of tooling, fixtures and integration become evident before comparing nominal machine prices.

  1. Identify the entire material stack. Give sheet grade, individual thicknesses, sequence and coating including product variant differences. Request sample results for joints using that stack. Nominal total thickness doesn’t answer if the punch acts through thin or thick sheet, or if the materials interlock as designed. Keep separate application data for aluminum, mild steel and stainless steel.
  2. Show access on both sides of every joint. Supply drawings with flange widths, joint positions and surrounding bends, then request an access study tied to the proposed fixture. Throat depth measures one part of the envelope; the die still needs clearance and the tool must enter and leave the joint. Compare portable clinching tools with fixed equipment using the assembly’s geometry and handling needs.
  3. Define the joint need separately from machine force. Indicate load direction and required strength and pertinent service conditions, then agree on the sample evaluation and acceptance criteria. The forming force of a press (rated in kN) doesn’t assess the finished joint and assign it a load rating. Coating condition and mixed-metal corrosion performance depend on the proposed material combination and can’t be inferred from a general claim about rivetless joining.
  4. Analyze the entire production cycle. Cover all aspects of loading, positioning, clamping, clinch operation, releasing, and unloading. Specify the number of joints per part and the changeover sequence; don’t just assume that one stroke time equates to the finished part throughput time. Automatic positioning may change the handling sequence, but production efficiency comparisons of the various systems under review still require a common starting and ending point for all the proposed systems.
  5. Itemize the supplied equipment. Ask for the machine, matched punch-and-die sets, fixture, guarding, controls and utility requirements to be listed as included, optional or excluded. Record air pressure and air-supply requirements where applicable, and distinguish a hydraulic power arrangement from a pneumatic or electric drive. Published stationary clinching press families provide a starting point; the quoted configuration defines the delivered equipment.
  6. Assign machine and tooling support. Identify who builds the frame and controls, who supplies the joining tools, and who handles replacement parts. Include tool identification, maintenance instructions, spare-part availability, installation and training in the quotation comparison. A BTM tool installed in another builder’s machine, or ECKOLD technology integrated by AGME, creates a different support arrangement from buying the entire package directly from the technology owner.
  7. Agree how production quality will be demonstrated. Request a representative sample of joints and define the measurements/tests for acceptance. If force or displacement monitoring is offered, define the conditions it records and what happens when a trace falls out of the acceptable window. A monitored curve supports process control, but the relationship between that curve and joint performance is qualified by the application.
  8. Check the scope of standards and certificates once. Read the applicable certificate’s entity, site, activity, and validity, rather than treating an ISO reference as an approval of a particular joint. The public DVS catalogue lists DVS 3420 from April 2021, covering clinching basics, component design, metallic materials, technology, and quality assurance. This is a process reference and not a machine certification. This guide cites the public catalogue description.

What is a Servo-Driven Clinching Machine?

A servo-driven clinching machine incorporates a servo-controlled drive to move the joining tool through its working cycle. The controller determines motion based on equipment configuration and appropriate systems capture process data. Servo control describes how the machine is driven; joint strength still depends on the material stack, matched tooling and the formed joint.

Specify required motion, monitoring and production interfaces and then compare drive labels. A product-family page mentioning servo equipment, however, doesn’t establish the force range, control functions or precision of an unnamed model. The same is true for pneumatic clinching: the drive description, in and of itself, doesn’t describe the full tooling, fixture and access arrangement.

A purchasing sequence can keep those decisions in order:

  1. Define the assembly. Provide drawings, material stack and the required joint performance.
  2. Approve the application. Review sample results and access with the proposed tooling and fixture.
  3. Compare the complete scope. Align equipment, cycle assumptions and service responsibilities before placing the order.

FAQ

Which is the best clinching machine manufacturer for my project?

The best manufacturer is the one whose equipment fits your material stack, joint access and production system.
TOX, BTM and ECKOLD offer broad joining ranges, while ductwork and sign-making specialists address narrower tasks. SIMITCH’s stated application fit is HVAC and appliance sheet-metal assembly. A suitable shortlist begins with those differences, then compares the complete machine and tooling configuration for the same part. Company size or a larger force rating alone does not settle that choice.

Who is the largest clinching machine manufacturer in the world?

Comparable public sales figures for rivetless clinching equipment do not establish a largest manufacturer in this guide.
A diversified group’s total revenue includes activities outside clinching and would not measure its position in this equipment category accurately. The companies also differ in what they sell: proprietary tooling, complete machines or custom integration. Documented equipment scope and an agreed application result provide a more useful basis for buying than an unsupported size ranking across those business models.

What is the difference between a clinching machine manufacturer and a supplier?

A manufacturer builds or integrates the machine, while a machine supplier may distribute equipment made by someone else.
Tooling ownership is a separate question. Mid-Rivers and Ticklay describe machines using BTM tooling, while AGME names ECKOLD as its clinching technology partner. These companies can therefore be responsible for complete equipment without owning the underlying joining technology. The distinction affects the technical scope of the order and the route for machine service, replacement tools and application support.

How much does a clinching machine cost?

Clinching machine prices depend on format, tooling, fixtures and automation scope.
A portable clamp and a robot-equipped cell are different purchases. Compare itemized quotations for the same part, cycle requirement and included equipment.

Which suppliers are best for HVAC ductwork?

Ductformer, Mid-Rivers and Ticklay publish equipment directly relevant to duct-shop assembly.
Norlok, Jurado, ECKOLD and Böllhoff also offer portable or stationary options. The useful distinction is how the machine reaches the flange or corner and handles the stated material stack. Ductformer’s DFTL addresses duct-specific operations, while a deeper fixed throat or a movable clamp serves a different handling arrangement. Access behind an assembled duct remains part of the equipment choice.

Is a rivetless clinching machine the same as a self-clinching fastener press?

Rivetless clinching forms an interlock from the sheets; a self-clinching fastener press installs a separate component.
Nuts, studs and standoffs belong to the latter category. A riveting machine also uses a different joining route. The sheet-metal joining methods guide explains the wider process choices.

Discuss Your Sheet-Metal Joining Application

Drawings, material stack and production target define a useful enquiry; actual SIMITCH appliance assembly system.
Key takeaway

A useful clinching shortlist matches the material stack and joint access to a complete machine, with tooling ownership and integration responsibilities clearly identified.

The best fit starts with your assembly requirements. Send SIMITCH the part drawings, material grades, individual thicknesses, joint positions and production target for HVAC or appliance sheet-metal work. Include access restrictions and required joint loads so the discussion can address a defined configuration. Contact SIMITCH about your clinching application with those details.

References & Sources

Publicly available company information and product specifications attributed to manufacturers are located within the companies’ About, History, product and Quality pages of their official web sites. Application-fit evaluations are subjective reviews of published offerings. This study doesn’t include hands-on evaluation, measured quality rankings or a market-share survey.

]]> https://simitch.com/blog/top-clinching-machine-manufacturers/feed/ 0 How to Select Sheet Metal Joining Methods for Thin-Sheet Production https://simitch.com/blog/sheet-metal-joining-methods/ https://simitch.com/blog/sheet-metal-joining-methods/#respond Mon, 21 Sep 2026 05:43:46 +0000 https://simitch.com/?p=2642

Thin-sheet engineering guide · Updated September 2026

Compare seven joining routes considering material stack, gauge, coating, heat, tool access, joint geometry, service load, visible surface limits, repairability and the proof required to warrant manufacture.

Sheet metal joining methods are processes for connecting thin sheets or formed components, including resistance spot welding, arc or laser welding, brazing and soldering, clinching, riveting, removable fasteners, adhesive bonding, and hybrid combinations. There’s no best choice. The solution is the route that fits the actual sheet stack, can get to the joint, holds up in its service environment, and can be confirmed by data that corresponds to the actual production part.

The most straightforward means of making a poor selection is to evaluate process names before locking in the part definition. A joint that’s strong in one lap-shear coupon may be infeasible to tool in the actual assembly, unacceptable on a show surface, unsafe to weld through a coating, or difficult to separate during repair. Accordingly, this guide employs a constraint-first sequence: define the joint, eliminate impossible routes, evaluate the survivors, then defend the selected route.

This guide provides assistance in making production-related judgments. This isn’t a structural design calculation, legal determination, weld procedure, adhesive recipe, ventilation design, or assessment of machine guarding. Final acceptance criteria will be determined by the respective engineering, quality, EHS, and regulatory teams for the installed application.

For broader process-family economics and supplier-brief questions, see the wider metal joining method selection guide. For hardware catalogs, hole requirements, and removable options, refer to the sheet metal fastening methods guide. Separating these jobs helps this thin-sheet article from duplicating other pages.

Selection unit
The complete sheet stack and local joint
First gate
Access, geometry, heat, surface, and service constraints
Evidence rule
Keep each result attached to its specimen and load mode
Commercial handoff
Choose equipment only after route feasibility

1. Seven Sheet Metal Joining Methods at a Glance

Seven sheet metal joining route families shown as a boundary map

The following seven process-families operate within broad performance boundaries. The purpose of the table is to define the first limit that should be checked to establish a scope. This shouldn’t assign a generic High, Medium, or Low.

Terminology boundary: These joining techniques cover common ways to join sheet metal, from temporary joining and other temporary and permanent hardware choices to permanent joining processes designed for strong joints. With precision sheet metal components and automotive applications, the right joining strategy depends on the layers of sheet metal, the joining materials, and whether engineers must join two metal parts, join dissimilar metals, or temporarily join metal without damaging a visible surface. The objective is to hold the metal together while preserving the required geometry and finish. Thermal joining technology includes MIG and TIG welding (metal inert gas and tungsten inert gas processes), along with welding techniques such as friction stir welding and ultrasonic welding for selected non-ferrous metals. In the automotive industry, techniques for joining thin sheet and joining dissimilar materials, including soldering and brazing, brazed joints, and processes using a metal rod as filler, impose different access, heat, and proof boundaries. These various joining methods frame sheet metal joining decisions, but the right joining method still follows the actual stack and validation plan.

In sheet metal fabrication, joining metal parts is seldom a material-name choice. The same metal sheet can behave differently after forming, coating, or heat treatment, and automotive sheet metal parts can place a joint in peel, crash, fatigue, sealing, and appearance conditions that a flat coupon does not reproduce.

7-Route Thin-Sheet Boundary Table
Route Heat at joint Added hardware Typical access boundary First proof question
Resistance spot welding Localized resistance heat No Two electrodes normally approach opposite sides Can the actual stack form a stable nugget without unacceptable surface, coating, or interface damage?
Arc or laser welding Fusion heat Sometimes filler Tool, shielding, fit-up, and seam access Can heat input, distortion, penetration, fumes, and finish be controlled on the real geometry?
Brazing or soldering Filler melts; base sheets should not Filler and often flux Joint clearance and heating access Do alloy compatibility, cleanliness, capillary geometry, service temperature, and residue control fit?
Clinching No fusion heat No Punch and die on opposite sides Can the stack form a repeatable interlock and neck without cracks or unacceptable marks?
Riveting or SPR Usually cold Rivet Blind rivets may be one-sided; SPR normally needs die-side reaction Do rivet, stack order, die, protrusion, fatigue, sealing, and corrosion behavior match?
Threaded or inserted fasteners Usually cold Yes Hole-making, installation, and service-tool access Are bearing, pull-out, torque, loosening, edge distance, and inspection acceptable?
Adhesive or hybrid joining Cure-dependent; hybrid route may add heat Adhesive; sometimes a discrete joint Bondline application, fixturing, cure, and inspection access Can preparation, contamination, cure, ageing, repair, and bondline quality be controlled?

TWI also considers method selection based on assembly, service requirement, time, and cost rather than a single material-strength ranking. That broad context is useful, but a production decision still requires the actual stack and proof plan.

2. Freeze the 8-Input Joint Brief Before Naming a Process

Eight inputs required before selecting a sheet metal joining process

Start a credible comparison with a frozen joint brief. If one of the proposals is based on bare mild steel and another is based on prepainted steel and aluminum, then their process names and costs aren’t comparable. The joined sheet assembly, not an isolated material name, establishes the boundary. Before requesting a recommendation or sample, document these eight inputs:

  1. Material and condition: alloy or grade, temper, level of strength, hardness, and possibly any material-direction concern.
  2. Individual gauges and stack order: upper sheet, lower sheet, interlayer, total stack, and tolerance – not total thickness in isolation.
  3. Coating and surface state: galvanizing, paint, oxide, lubricant, contamination limit, cleaning method, and whether damage is permitted.
  4. Joint geometry: lap, flange, seam, edge distance, overlap, local curvature, and zone available for a button, weld, rivet, hole, or bondline.
  5. Tool access and reaction path: approach direction, throat depth, fixture space, electrode or die clearance, and how the part transfers joining force.
  6. Load case: shear, peel, tension, torque, impact, static or cyclic spectrum, load path, local stiffness, and failure mode and effect.
  7. Visible-surface and service limits: Allowable marks, protrusion, flushness, leak path, corrosion environment, temperature, repair, removal, and end-of-life separation.
  8. Production and release target: rate, changeover, traceability, inspection method, challenged conditions, acceptance limits, and revalidation requirements.

The field load needs to go beyond “strong enough.” ISO/TR 12998:2019 defines shear, peel, normal-tension, and combined fatigue loading. The abstract, which is available for public viewing, states that a direct application of fatigue in design can be justified as long as service loading and the local stiffness around the joint are similar to the tested case. For this reason, a flat lap coupon can be taken as evidence of its condition but cannot be deemed sufficient for all formed assemblies.

Do not ask “Which process is strongest?” until the team can answer: strongest under which load mode, in which stack, after which exposure, and with which acceptable failure mode?

3. Thermal Joining: Spot, MIG, TIG, Laser, Brazing, and Soldering

Thermal sheet joining routes screened by heat, coating, exposure, and stack

With the joint brief fixed, thermal routes remain valuable for thin sheet, but “uses heat” is too broad to be a decision. Resistance spot welding concentrates current and pressure in overlapping sheets. MIG and TIG produce welded joints with different filler metal and degrees of operator control. Laser welding concentrates energy in a narrow interaction zone, but it has stringent requirements in terms of fit-up, beam access, shielding, and process control. Brazing and soldering melt a filler below the base-metal melting point, and therefore, clearance, wetting, residues, and service temperature become critical. Each welding process requires its own fit-up and control plan.

Heat and coatings are screens, not automatic disqualifiers

Although they have low thermal mass, thin sections are prone to thermal distortion and burning when combinations of heat input, restraint, fit-up, sequence, and travel conditions aren’t optimized. Coatings change electrical contact, wetting, fumes, electrode conditions, surface appearance, and corrosion behavior, but it shouldn’t be concluded that coated sheet is unsuitable for welding. An open study joined galvanized and uncoated steels to aluminum with a resistance-welded insert plus adhesive; it also documented brittle intermetallic, oxide, and process limitations. The conclusion is to test the exact stack; don’t presume one success or failure will apply to all other cases.

Add worker exposure to the route screen

Thermal testing isn’t complete if it evaluates a joint but ignores what the coating releases. Per OSHA, fume fever due to metal is commonly caused by zinc oxide in galvanized steel or zinc-rich paint. For welding type conditions, ventilation and respiratory control are required. Coating identity, process emissions, enclosure, extraction, and EHS review are to be treated as inputs to a production trial. This article can’t recommend the control system specific to a given workplace.

The accepted economics of existing welding equipment shouldn’t compromise surface, coating, access or exposure. For each surviving thermal route, define weld or filler geometry, allowable distortion, surface repair, inspection, destructive-test frequency, electrode or consumable management, and the change that triggers requalification.

4. Cold Mechanical Joining: Clinching, Riveting, SPR, and Fasteners

Cold mechanical joining guide with a SIMITCH handheld clinching unit

Cold mechanical fastening routes avoid a weld heat-affected zone, but they do not share one access pattern or one failure mode. Clinching plastically forms overlapping sheets into a permanent joint without a separate fastener. Conventional riveting normally uses a preformed hole. Self-piercing riveting drives a rivet through the upper layers and expands it into the lower layer against a die. Blind rivets are installed from one side. Threaded fasteners and inserted nuts add removability or service access, but they also add holes, parts, torque control, loosening risk, and local bearing loads.

Does no-weld mean one-sided access? No. Conventional clinching needs a punch and die on opposite sides, and SPR normally needs a die-side reaction path. A blind fastener is a genuinely different access solution. The peer-reviewed clinching review describes the blank holder, punch, and die and identifies tool geometry, interlock, neck thickness, material ductility, and die-side protrusion as important constraints.

Key takeaway

A no-weld method removes fusion heat; it does not automatically remove die-side access, surface marks, corrosion interfaces, consumables, or application-specific joint testing.

Clinching should be evaluated for a stack trial since the local nature of forming imposes limits on the capabilities of the material. A material that is strong in tension can still crack during severe local forming, while a soft stack can form a button that lacks the required neck or interlock. The order of the stack also matters. For riveting, confirm head-side finish, tail or protrusion, rivet compatibility, hole quality where applicable, corrosion isolation, and inspection. For removable hardware, assess the complete system that provides tightening and service access rather than just the sheet coupon.

Use the self-piercing riveting process validation guide for SPR-specific proof, the industrial riveting equipment page for commercial equipment pathways, and the fastening guide above for hardware-level selection.

5. Adhesive and Hybrid Joining for Thin or Dissimilar Sheets

Adhesive and hybrid sheet joining qualification control chain

After screening cold mechanical routes, adhesive bonding can spread load across an overlap, add sealing, separate dissimilar metals, and avoid a concentrated heat source. The benefits of bonding introduce other control issues such as material shelf life, environmental aging, contamination, prep and application of surfaces, bondline, fixturing, cure, inspection, and the design and planning for separation or repair.

Outside this cross-method comparison, for material-specific context, the aluminum joining methods guide covers aluminum-related process issues in more detail.

ISO 17212 ties bonding suitability to surface preparation, joint design, function, and service environment. It states that metal-alloy surfaces require material-specific treatments and addresses cleaning, storage, and the evaluation of surface and material durability. Thus, “apply adhesive” is not a well-defined process instruction. Potential users of the technology should be able to name the surface conditions, time limits, applicable checks, evidence of cure, and the environmental stresses of the stack.

Why hybrid results cannot be copied between stacks

In one open 0.8 mm steel and 1.0 mm aluminum experiment, an insert-element resistance spot weld carried about 1.8 kN. Hybrid versions reached about 6 kN with one rubber-based adhesive and roughly 10–12 kN with an epoxy-based adhesive. A separate recent study reported 17.0 kN for its best hybrid configuration versus 0.92 kN for its reference. They show interaction between joining elements, not catalogue ratings. Materials, thicknesses, surface treatment, overlap, adhesive, interlayer, cure, and test geometry all changed the result.

These results are compiled with associated numbers for context and boundary of the original test or standard and shouldn’t be interpreted as recommended design values.

Bounded numeric evidence register
Evidence type Reported value Boundary
Fatigue guidance 0.5–6 mm sheet-specimen range ISO/TR 12998 public scope; not a process capability range
AHSS/UHSS note Generally below 3.0 mm Context note in ISO/TR 12998, not a universal joining limit
Tensile-shear standard scope Up to 4.5 mm per individual sheet ISO 12996 specimen/test scope
Open hybrid study stack 0.8 mm steel Named steel grade and insert-element experiment
Open hybrid study stack 1.0 mm aluminum EN AW-6082 T6 in the named experiment
Insert-element RSW result About 1.8 kN Reported test variants, not a spot-weld rating
Rubber-adhesive hybrid result About 6 kN Same named experiment and adhesive system
Epoxy-adhesive hybrid result About 10–12 kN Same named experiment and adhesive system
Recent interlayer study stack 1.8 mm extruded aluminum 6063-T6 material in that study
Recent interlayer study stack 2.2 mm cast aluminum Cast material branch in that study
Recent interlayer study stack 1.5 mm coated steel Usibor 1500 AS150 in that study
Interlayer-only result 2.9 kN Reported maximum tensile-force comparison
Best hybrid result 17.0 kN Best tested combination, not a transferable promise
Reference result 0.92 kN Reference extruded aluminum–steel RSW specimen

For scale, not selection limits, ISO/TR 12998 covers fatigue specimens from 0.5 mm to 6 mm at room temperature and up to 80% relative humidity, while noting AHSS and UHSS are generally below 3.0 mm in this context; ISO 12996 covers individual sheets up to 4.5 mm. The interlayer study separately tested 1.8 mm extruded aluminum, 2.2 mm cast aluminum, and 1.5 mm coated steel, with an interlayer-only result of 2.9 kN.

The separate corrosion study used 1.2 mm aluminum and 1.5 mm galvanized steel and challenged welded specimens in a 3.5% NaCl solution. Its result isn’t a service-life forecast, but it shows why material thickness, interface condition, exposure, and effective joint area must stay attached to any corrosion-strength discussion.

In this hybrid joining system, each element must have an allocated function. The joining elements require testing, so the qualification plan should include interaction tests. A discrete joint can squeeze out adhesive, alter bondline thickness, damage a coating, or create a corrosion path. Structural adhesives need to be designed to strike a balance between high durability and the ease of maintenance and recycling.

6. Let Access and Joint Geometry Eliminate Impossible Routes

Geometry and access elimination screen for sheet metal joining routes

When benchmarking joint strengths, draw the tool approach and reaction path over the real part. A process developed on two flat coupons may fail when used in a return flange, box section, narrow channel, or closed assembly. Use section views as opposed to a top view.

Geometry and access elimination screen
Question What it can eliminate Evidence to request
Can tools reach both faces at the joint? Conventional clinching, SPR, and opposed-electrode spot welding when the back face is inaccessible Section drawing with tool envelopes and assembly sequence
Is there a stable reaction path? Press-based routes where the part or fixture cannot carry joining force without deflection Fixture concept, force path, deflection review, representative trial
Is the flange or overlap large enough? Routes whose button, nugget, rivet, hole, or bondline conflicts with an edge or bend Dimensioned local geometry and cut section
Can a mark or protrusion remain? Buttons, rivet tails, heads, weld marks, heat tint, squeeze-out, or visible repair Signed visual standard for both faces
Must the joint be opened later? Permanent welds, clinches, rivets, and conventional structural adhesives where nondestructive separation is required Service sequence, allowed damage, tool access, replacement-part plan

If all preferred routes are eliminated through geometry, redesign may be a correct engineering solution. Moving a flange, opening a tool window, changing the assembly sequence, adding a service cover, or relocating the joint can produce a more controllable system than forcing a process into a hostile envelope.

7. Match Hard Constraints to a Route, Not a Generic Winner

Two-pass sheet joining route decision funnel using hard constraints

Use the two passes of the route table. The first pass is elimination. Any route that violates a non-negotiable access, heat, surface, removal, material, geometry, exposure, inspection, etc. requirement is eliminated. The second pass compares only feasible routes on production integration, proof burden, maintenance, changeover, consumables, and lifecycle risk.

Example: prepainted steel joined to aluminum

Suppose the drawing calls for a clean show surface. The joint is in a narrow return flange. There’s no need for service separation, and the assembly experiences cyclic peel and exposure to humidity. Based solely on material selection, there’s no preferred process. First check if there’s sufficient clearance to punch and die a flange. If not, conventional clinching and SPR leave the shortlist regardless of potential coupon load. If thermal marking or coating removal is prohibited, several welding routes may leave. Adhesive bonding remains only if the paint interface, preparation, bondline, cure, humidity ageing, peel fatigue, and inspection plan can be controlled. Even if it wasn’t the preferred option, a blind fastener or redesign would be considered.

Now change one constraint: allow a hidden die-side mark and provide two-sided access. Clinching is now a choice to test even if it isn’t the preferred option. It’s still necessary to perform a stack trial, sectioning or measurement of geometry, testing in relevant load modes, assessing corrosion, and developing a plan to control the process and compensate for drift. This is why constraint-based selection is better than developing a list of best methods.

Joint-trial checklist — copy these into your technical request:

Parameter Recommended range Why it matters How to verify
Individual sheet gauges Project drawing values in mm, including tolerance Controls deformation, heat flow, bearing, and tool choice Material certificate plus measured samples
Flange and overlap Project minimum and maximum in mm Defines local tool and edge envelope Released drawing and representative parts
Coating or surface condition Named coating and allowed damage limit Changes contact, forming, bonding, emissions, and corrosion Specification, photos, and post-trial inspection
Tool access Available approach and throat dimensions in mm Prevents selecting an unreachable process Section drawing, CAD envelope, and assembly sequence
Load case Project load, cycles, rate, and environment Aligns trial evidence with service Approved test plan and failure criteria
Visible-surface limit Signed standard with dimensional limit where relevant Prevents strength-only approval of an unacceptable part Golden sample, photos, and gauge method
Production target Required good joints per min or per shift Connects joint feasibility to the cell Timed representative run with reject accounting
Release evidence Project-defined limits and sample count Makes acceptance auditable Traceable report, raw results, sections, and process records

8. Prove the Route from Sample to Production

Four-layer proof chain from sheet stack identity to process correlation

Once a feasible route survives the constraint screen, one attractive sample proves only that one sample was produced. To release a production sample, it is necessary to develop a chain that connects what was joined, what geometry was achieved, how it performed, and which process record can describe it.

Four-Layer Route Proof Chain
Layer What to retain What it does not prove alone
1. Stack identity Material certificates, gauges, coating, surface condition, stack order, drawing revision, sample ID That the joint geometry or process was acceptable
2. Joint condition Both-face images, dimensions, sections where relevant, cracks, porosity, interlock, neck, nugget, head, tail, bondline Static, fatigue, impact, corrosion, leak, or service performance
3. Performance Test method, fixture, load mode, rate, sample count, environment, raw results, failure mode, challenged conditions Transfer to a differently stiff or differently loaded assembly
4. Process correlation Tool ID, settings, force/displacement/current/time record as applicable, material lot, alarms, acceptance window, reaction plan, change control That every unmeasured service risk is closed

ISO 12996 provides specimen geometry and a tensile-shear procedure for single mechanical joints on single-layer and multilayer sheets, including individual sheet thicknesses up to 4.5 mm within its stated scope. It contributes to the standardization of one mechanical evidence layer; however, it should not be considered a full fatigue, corrosion, sealing, cosmetics, or process control plan. ISO/TR 12998 adds fatigue-test guidance and reinforces the need to match load mode and stiffness.

Powered joining equipment requires, in addition, the assessment of each machine for associated risks. OSHA 29 CFR 1910.212 states “One or more methods of machine guarding shall be provided” and requires guarding at the point of operation where exposure would injure an operator. This rule constitutes a guarding limit, rather than a standard for selecting methods or a complete machine design.

Before release, define the reaction to a bad section, changed coating lot, replaced tool, electrode dress, adhesive excursion, altered cure, revised flange, software change, or moved fixture. A monitored curve is useful only if it’s correlated to accepted and rejected physical joints and has an agreed response outside the specified limits.

9. Mixed-Material Stacks Are Changing What “Best” Means

SIMITCH workshop illustrating mixed-material joining development

Trade reporting in 2025 highlights servo-electric clinching, in-process monitoring, difficult material combinations, and hybrid joining. In that article, supplier contributors describe examples from 0.3 mm to 7 mm per layer, total stacks of 14 mm or 22 mm in selected applications, and hybrid gains of 30% or more under stated conditions. Those are attributed supplier examples, not universal limits or guarantees, and each needs its own sample and test conditions.

The practical outlook is conservative: expect more hybrid concepts, monitoring, and dissimilar-material trials, but demand a tighter evidence chain. New technology does not remove the old questions about access, local stiffness, peel load, coating condition, corrosion, fatigue, inspection, repair, and process change. It increases the cost of pretending that one answer addresses everything.

10. When a Clinching Equipment Trial Is the Next Step

SIMITCH assembly floor and the inputs needed for a representative clinching trial

A clinching trial is worth consideration when the joint can tolerate a permanent cold-formed interlock, both sides are accessible, the flange and reaction path are reasonable, the material stack appears formable, and the project can define the appearance and test criteria. Don’t start with a predetermined press force or machine model. Start with the 8-Input Joint Brief and exemplar components.

Send the upper and lower material specifications, individual gauges and tolerances, stack order, coating and lubrication condition, joint area, access envelope, permissible marks, target production, and the planned mechanical and environmental tests. Ask the supplier to return sample and tooling identities, a process record, joint geometry or sections where appropriate, raw test data, failure modes, and any limitation that still requires customer validation.

When clinching passes the route screen, evaluate SIMITCH’s clinching machines and equipment options once the stack and target acceptance have been established. The equipment page controls configuration and quotation, while this guide retains the method-selection and proof framework.

SIMITCH reports that it was founded in 2006, has 20 years of R&D experience, supports more than 3,000 manufacturing clients, and has equipment in service across 41 countries. When comparing sheet metal joining techniques, treat these as company-reported credentials for support capacity—not as proof that a particular joint will pass validation.

Have a thin-sheet stack ready for review?

Share the two sheet specifications, gauges, coating, joint drawing, access envelope, production target, acceptance method, visible-surface limits, likely service environment, and service-life constraints. SIMITCH’s sheet-metal joining team can then discuss whether a clinching trial is technically relevant before equipment selection.

Discuss Your Joining Trial

Frequently Asked Questions

What are the common methods for joining sheet metal?

Typical methods include resistance spot welding; MIG, TIG, and laser welding; brazing and soldering; clinching; riveting and self-piercing riveting; threaded or inserted fasteners; adhesive bonding; and combinations of the aforementioned techniques. The final choice would depend on the stack, coating, access, joint geometry, service load, visible-surface limit, repair requirement, and proof plan.

How can two pieces of thin sheet metal be joined without welding?

The choices are: clinching, conventional or self-piercing rivets, blind fasteners, screws or inserted hardware, adhesive bonding, folded or locked seams, and combinations of the aforementioned techniques. “Without welding” only removes fusion heat; it does not guarantee one-sided access, removability, no surface mark, or acceptable performance.

Is clinching suitable for coated sheet?

Clinching can suit coated sheet, but the result depends on the stack itself. A trial should check coating damage, cracks, button or interlock geometry, visible marks, corrosion exposure, and mechanical behavior using the actual coating, lubrication, material grade, thickness, stack order, punch, and die.

Does a stronger lap-shear coupon mean a better production joint?

No. The outcome is specific to the specimen, load mode, rate, environment, and local stiffness used in the test. Production selection also depends on peel or cyclic loading, corrosion, access, surface limits, inspection, process stability, repair, and the consequence of failure.

What should be included in a sheet metal joining trial?

Include traceable materials and coating ID, individual gauges, stack order, representative geometry, tool and process ID with both-face images, sections or dimensional checks as appropriate, and application-relevant mechanical and environmental tests. Keep raw data, specimen count, fixture, load mode, failure modes, process records, acceptance criteria, and change-control triggers. Include the hardest coating, tolerance, access condition, and service environment so the supplier does not produce a sample that production will never use during the intended production qualification process.

References & Sources

  1. TWI: methods for joining sheet metal
  2. Peer-reviewed review: Clinching for sheet materials
  3. Open study: steel, aluminum RSW with insert element and adhesive bonding
  4. Peer-reviewed study: interlayer-adhesive hybrid joining of aluminum, steel sheets
  5. ISO 12996:2013, tensile-shear testing of single mechanical joints
  6. ISO/TR 12998:2019, fatigue testing of mechanical joints
  7. ISO 17212:2012, surface preparation before adhesive bonding
  8. OSHA 29 CFR 1910.212, general machine guarding requirements
  9. OSHA: welding respiratory hazards, including zinc oxide
  10. NASA Kennedy Space Center: forms of corrosion
  11. AMPP: forms of corrosion
  12. Peer-reviewed review: adhesives, surface treatment, repair, and disassembly
  13. Open study: corrosion behavior of aluminum, galvanized-steel RSW joints
  14. Assembly Magazine: current clinching developments
]]> https://simitch.com/blog/sheet-metal-joining-methods/feed/ 0 Self-Piercing Riveting SPR Machines: A Practical Guide to Proving the Joint https://simitch.com/blog/self-piercing-riveting-spr-guide/ https://simitch.com/blog/self-piercing-riveting-spr-guide/#respond Mon, 14 Sep 2026 05:32:50 +0000 https://simitch.com/?p=2624

Updated September 2026

Self-piercing riveting SPR machines are systems that set semi-tubular rivets into assembled layered materials, but a machine name or force rating can’t determine if a production joint will function. The joint’s feasibility begins with the sheets, the order of the sheets, die-side access, and the evidence offered by the completed joint. Equipment selection comes later, and the joint must be revalidated with the target process.

Terminology boundary: In this guide, self-piercing rivet equipment or riveting equipment means the complete riveting system: machine, feed, tooling and consumable. Suppliers may describe portable formats as SPR rivet guns, while fixed cells serve OEM production lines. Application briefs often discuss body-in-white structural components and EV battery trays, but every sheet metal stack still needs proof. Compared with spot welding and other mechanical joining routes, rivet installation can join dissimilar materials and multiple layers of material without pre-drilling; choosing the right rivet and die remains a joint quality decision.

Direct answer: In conventional self-pierce riveting, the rivet pierces the upper layer or layers and flares into the die-supported lower sheet, normally without a predrilled hole. A reliable project does not jump from that definition to a machine quote. It screens the complete stack, maps access, runs a controlled trial, inspects sectioned joints, performs the required mechanical tests, correlates production signals, and only then fixes the equipment and control architecture.

Keep these five boundaries visible

  • No pre-hole doesn’t imply one-sided access. Conventional SPR still requires a die and a reaction path behind the lower sheet.
  • Even a pair of materials isn’t a qualified stack. Grade, thickness, order, coating, adhesive, and local geometry all matter.
  • Good appearance doesn’t guarantee strength. Appearance, cross-section, and mechanical testing all uniquely answer different questions.
  • Even a clean force-displacement trace is not a final inspection. Some physical defects remain outside of the signal window.
  • Trial-machine proof isn’t automatically transferable. The tooling and motion profile of the final riveting system must be revalidated.

How Conventional SPR Forms a Joint Without a Predrilled Hole

How Conventional SPR Forms a Joint Without a Predrilled Hole — SIMITCH

A self-piercing rivet is placed over the stack and is supported by a matched die on the lower side. The clamp or blankholder controls and supports the stack. The punch drives the rivet, but the intended process stops short of piercing the bottom layer of the stack. Material flow in the die flares the rivet leg. This flare captures the lower-sheet material and creates the mechanical interlock.

One peer-reviewed process study identifies four main steps in the process: clamping, piercing, flaring and release. Cold-forming and mechanical fastening techniques are employed in this process, whereas welding fusion isn’t. There’s no weld nugget, and a typical process doesn’t require a drilling step along with chip control, which is characteristic of a conventional through-hole fastener. Thus, this process may be useful in multi-material assembly, including some combination of aluminum and high strength steel stacks, once the actual combination is proven.

The lower sheet serves two functions. It must allow flaring of the rivet leg without uncontrolled cracking, and it must provide sufficient material to maintain the interlock. For this reason, the result may change by flipping the two sheets. The die also forms a button on the side of the assembly, and thus the first consideration of this design may include cosmetic and packaging issues.

The no-pre-hole statement needs one qualifier

“No predrilling” is an accurate statement for semi-tubular SPR processes, and it shouldn’t be generalized to other specialized processes. For instance, a 2025 study specifically examines conventional and pre-hole SPR for a difficult composite-to-steel application, and compares the two. As a first step in a typical screening process, the conventional approach should be followed. For a brittle composite or an unusual stack that demands a different approach, the variation and justification of a separate process should be given, rather than sheltering the approach behind a broad SPR definition.

Key takeaway

Conventional SPR avoids a separate pre-hole, but it still depends on controlled clamping, a matched die, lower-sheet integrity and access to both sides of the joint location.

Start With the Stack: The Feasibility Gate

Start With the Stack: The Feasibility Gate — SIMITCH

“Can SPR join aluminum to steel?” is far too general to approve the launch of a machine or production methods. The actual question is: can this rivet and die combine to produce an acceptable joint in the sequence defined in the drawing, at this location, with the manufacturing and service conditions stated?

Peer-reviewed papers on measurements of joint sections indicate that engineers select a rivet and die combination for a particular joint sequence, fabricate sample joints, and assess characteristics such as head position, interlock, and the thickness of the remaining bottom sheet. The study also warns that familiar linear interlock measurements do not perfectly predict joint strength. For this reason, screening of the stack represents a necessary step in the assessment of joint design, and is certainly not a step that can be omitted.

The Stack-to-Joint Feasibility Gate

Freeze these inputs before comparing rivets and dies.
Gate input What to record What can fail if it stays vague
Layer identity Grade, temper, thickness and tolerance for every layer A coupon represents different material from production
Layer order Punch-side and die-side sequence The rivet pierces or flares into the wrong material behavior
Surface system Coating, lubricant, cleanliness and permitted marking Friction, appearance or corrosion behavior changes
Adhesive condition Type, bead, uncured/cured state and squeeze-out boundary The hybrid joint is tested under the wrong process condition
Local geometry Flange width, edge distance, curvature, nearby features and joint pitch The coupon works but the real part cannot support the same flow
Acceptance duty Load direction, life, environment and appearance requirements The team optimizes the wrong test result

Don’t take a value from a research paper or a chart provided by a supplier and either draw a universal thickness or a universal force limit. The behaviour of the machine in conjunction with the hardness of the rivets and the geometry of the die and the sequence of the stack will determine the limit and the force that can be used on the stack. By itself, a given force rating only describes what a configured machine can deliver. It doesn’t mean that the sheets will interlock safely with that given force.

Key takeaway

Qualify an ordered material stack, not a generic material pair. If grade, thickness, order, surface state or service duty changes, the old result becomes evidence to review, not permission to assume.

Map Die-Side Access Before You Choose Equipment

Map Die-Side Access Before You Choose Equipment — SIMITCH

The most common SPR mistake on a screen is to draw only the visible rivet head. The process must include both the punch path and a die-side reaction path. Returns, deep draws, closed sections and nearby ribs can restrict the die, while fixtures and part-handling tools can block access even when a flat blank is easy to join.

The Die-Side Access Envelope Map

  1. Mark all joint axes. Indicate the approach direction and the surface that’s expected to support the formed button.
  2. Draw the die envelope. Reserve space for the die body, holder, reaction structure and tool-change movement, not only the contact face.
  3. Draw the punch-side envelope. Include the nose, clamp, rivet feed path and collision clearance.
  4. Trace the reaction load. Illustrate how the gun, C-frame, fixture and part resist load without unacceptable opening or deflection.
  5. Simulate loading and service. Even a tool that reaches an empty fixture may become inaccessible with a full part, grippers, guards or adjacent completed joints.

The map of constraints depicts application-specific equipment limits, not a universal ranking. A portable rivet gun may reach a large assembly, but it also places reaction and handling demands on the operator or manipulator. A stationary C-frame may provide a clear load path, but would require the part to move. A robotic riveting system may take the tool to multiple locations, but would require resolution of payload, hose and rivet feed routing, collision clearance and frame stiffness. These constraints are application specific, and not a general ranking.

Key takeaway

Complete the access envelope on the real part before choosing a gun, C-frame or robot. A feasible material stack is not a feasible production joint until both tools and their reaction path fit.

Build a Controlled SPR Trial

Build a Controlled SPR Trial — SIMITCH

It’s important to understand cause and effect. If the team changes the rivet, die, stack order and clamp and drive settings simultaneously, a successful sample has no portable explanation and a failed sample has no clean diagnosis.

The 10-Variable SPR Trial Card

The following card is an example of an engineering record, not a general standard or a replacement for the project test plan. Alter the level of detail in the record to the assembly and the level of risk.

# Variable family Minimum useful record
1 Stack Material, grade, temper, thickness, tolerance and layer order
2 Surface and adhesive Coating, lubricant, cleanliness, adhesive identity and cure state
3 Rivet Controlled identifier, geometry, length, hardness/specification and lot
4 Die Controlled identifier, cavity/profile, condition and orientation
5 Clamp Blankholder or clamp arrangement and commanded condition
6 Machine command Recipe, stroke/position, speed profile, cutoff and dwell where applicable
7 Actual cycle Force-displacement trace and relevant measured features
8 Tool alignment Punch/die condition, concentricity check and fixture state
9 Sample identity Part/coupon ID, joint position, orientation and section plane
10 Context Material lot, environment, operator/setup state and any deviation

Start with a rivet-die combination selected for the stack and repeat samples in controlled locations. Explore the process window by holding all other factors constant, sample and test the resulting process while changing one of the constrained factors. In the case of adhesives, the trial plan should state whether the joint will be evaluated before or after cure, and what’s considered production conditions in terms of squeeze-out or gap.

Wrong-tool prevention deserves explicit ownership. A patent may show one architecture that compares actual die movement to an expected value, but a published patent isn’t proof that every SPR machine has that functionality. The release plan should explain how rivet identity, die identity, setup and recipe are checked in the chosen system.

Key takeaway

A good trial is traceable enough to explain the result. Keep the stack, rivet, die, machine condition, sample position, signal and physical evidence under one identity.

Use a Four-Layer Joint Proof Ladder

Use a Four-Layer Joint Proof Ladder — SIMITCH

No single inspection proves everything about an SPR joint. A useful control plan builds evidence in layers, with each layer addressing a different question.

  1. Layer 1: visible formation. Check seating of rivet heads, surface damage, cracks, die-side button position and the completeness of the button. This may quickly address formation problems that are apparent, but the internal interlock cannot be assessed by appearance.
  2. Layer 2: sectioned geometry. Measure agreed features such as head position, flare or interlock, and minimum remaining bottom-sheet thickness. Give the position of the section plane and location of the sample. An off-centered or angled cut can distort the apparent interlock, so the method should adhere to discipline of preparation.
  3. Layer 3: mechanical performance. Use the test modes and the orientation of the specimen(s) dictated by the application. Tensile shear, cross tension, peel, fatigue and functional assembly are not equivalent. Record the failure mode and the response of the specimen, including the load and the physical failure.
  4. Layer 4: production correlation. Connect accepted physical joints to material lots, tool life, settings and cycle signals. Define sampling, reaction and revalidation. Add environmental ageing or cyclic duty when the service risk requires it; initial static coupons do not prove lifetime performance.

ISO 12996:2013 provides specimen-geometry and tensile-shear test-procedure scope for single mechanical joints, including single- and multi-layer specimens within the standard’s stated limits. Its public abstract refers to a maximum individual sheet thickness of 4.5 mm. That is a test-standard scope statement, not an SPR machine capacity, a process qualification or a universal acceptance threshold. Use the purchased standard and the project specification when its procedure applies.

Why interlock alone is not enough

While the interlock is important, it can’t represent the complexity of all of the elements that influence load transfer. There are studies that compare measurements of joint sections. These studies show that joints can exhibit vastly different cross-tension behavior, even when the interlock is similar, due to the shape of the flare and the amount of retained material. Use the geometry of the sample and the required physical test to confirm the specified performance.

Key takeaway

Appearance, section geometry, mechanical testing and production correlation are complementary. Do not promote one convenient measurement into a complete joint approval.

What Force-Displacement Monitoring Can and Cannot Prove

What Force-Displacement Monitoring Can and Cannot Prove — SIMITCH

The force-displacement curve captures the response of the machine and the stack during the setting cycle. There may be features of interest such as contact position, force rise, displacement at a selected force, peak force and final position. Once features of interest have been correlated with approved physical joints, the tolerance band can be used to determine the presence of drift, feed errors, different stack or tool conditions.

TWI’s SPR monitoring guidance defines benchmarking force against punch displacement and constructing an experimental tolerance band. This document advises that monitor signals may not align with joint properties. This is where the line must be drawn. The trace is a process signal, and the meaning can be interpreted only by tested joints.

A peer-reviewed monitoring study adds weight to the boundary. The conventional force-displacement method was insensitive to several visible conditions, including lateral rivet offset, sheet cracking, button cracking and button loss. Therefore, a defect can exist in the physical sense, while a cycle may lie within a defined numerical range.

Monitoring can help answer Monitoring cannot answer by itself Corroborating evidence
Did this cycle resemble the validated process signature? Is the internal interlock acceptable? Sectioned sample
Did contact, force rise or final position drift? Is there a crack or off-axis rivet? Visual and dimensional inspection
Should the joint or part be contained for review? Does the joint meet the required load case? Mechanical or functional test
Has a process input changed enough to trigger investigation? What the root cause is Tool, material, fixture and sample diagnosis

Construct the monitoring window by using accepted and challenged samples made under controlled conditions. Specify which signal characteristics trigger an alarm, whether the alarm stops or quarantines production, who reviews it, and what data justifies resuming production. Revalidate after making a significant change. A broad band that never sounds an alarm isn’t control; a narrow band that rejects normal variation of the material isn’t control either.

Key takeaway

Use the force-displacement trace to screen a validated process. Keep visual inspection, sectioning and mechanical evidence where the control plan requires them.

Separate Formation Defects From Load-Test Failures

Separate Formation Defects From Load-Test Failures — SIMITCH

A weak joint and a badly formed joint can look similar, but they are different diagnoses that may overlap. Combining the two makes teams head toward fixing the wrong issue. To determine what happened, ask whether the fault occurred while forming the joint or while the completed joint carried a test or service load.

The Formation-vs-Load Failure Split

Formation branch

  • Empty or repeated riveting
  • Rivet flip, offset or off-axis entry
  • Under-driven or over-driven head
  • Inadequate flare or malformed button
  • Upper- or lower-sheet cracking
  • Wrong rivet, die, stack or alignment

First evidence: sample identity, appearance, trace, tool/setup check and sectioned geometry.

Load or service branch

  • Rivet pull-out or pull-through
  • Sheet tearing or bearing failure
  • Interfacial separation
  • Peel-sensitive failure
  • Fatigue crack initiation
  • Corrosion-related degradation

First evidence: load case, specimen orientation, load-displacement record, fracture location and service context.

Keep the failed specimen. Don’t grind through the only fracture surface before recording the failure path. Note its material lot, rivet, die, machine cycle and position. Then section and inspect representative adjacent joints. Repeat the test after one bounded setup change. Don’t treat more setting force as a generic fix; it can alter piercing, flare, sheet thinning and crack risk together.

When a load test fails, document how it failed. A peak load without a failure mode hides the mechanism and makes comparisons unreliable. Rivet pull-out, sheet tearing and rivet fracture don’t support the same conclusion, even when their peak values are close. Where cyclic loads or a corrosive service environment are relevant, extend the proof plan instead of treating a static tensile-shear coupon as lifetime evidence.

Key takeaway

Diagnose formation from forming evidence and load failure from the tested load path. Preserve traceability between the physical joint, its cycle and its test result.

Guarding and Change Control Belong in the Process Plan

Guarding and Change Control Belong in the Process Plan — SIMITCH

SPR systems combine high-force machine-level actuation with moving tools, stored energy, rivet feeding, and manual or automated handling in one machine-level risk assessment. Process monitoring and safety-related control are two distinct functions. While a curve alarm might help contain suspect joints, it isn’t automatically a safety function.


Regarding a narrow U.S. federal scope point, 29 CFR Part 1910 Subpart O places riveting machines outside the mechanical-power-press requirements of 1910.217(a)(5). This exclusion doesn’t mean an unguarded riveting machine is allowed. An OSHA interpretation specific to riveting machines refers to the general safeguarding requirement of 1910.212(a)(1). This is a scope note, not legal advice or a complete assessment for a machine, task, installation or jurisdiction.

Change-control triggers

Define which revisions require review, sample checks or full revalidation before release. The list typically includes changes to sheet grade, temper, thickness, supplier or coating; adhesive type or cure state; layer order; rivet or die revision; tool maintenance; punch/die alignment; feeder changes; sensor replacement or calibration; force, speed, stroke or tolerance-band settings; software; fixture; guard; loading mode; and production location.

A practical release question

If this change affects moving material, access to joints, the path of reaction, measurement of cycles, exposure of operators, or the meaning of the existing acceptance criteria, it should be reviewed by the named owner and revalidated before the process is used.

Key takeaway

Guarding is a machine responsibility, and a process change can invalidate both joint evidence and safety assumptions. Give each review a named owner and release record.

Translate Joint Proof Into Equipment Requirements, Then Revalidate

Translate Joint Proof Into Equipment Requirements, Then Revalidate — SIMITCH

Once a credible joint window is demonstrated during feasibility trials, use this evidence to define the machine requirements. This isn’t a one-way process. The target machine’s stiffness, tooling, clamping, force-motion profile, sensing, and access can affect joint formation, so the final process requires its own confirmation.

Current research studies have outlined the relationship between punch velocity and coupled phenomena such as SPR formation, joining force, geometric parameters and joint characteristics. The purchasing lesson is not to assume that coupons made on a given laboratory or trial press will hold for other drive systems or motion profiles. The result of a trial should be converted into a requirement and confirmation coupons should be made in the proposed production configuration.

Equipment handoff after the engineering questions are defined.
Requirement Evidence sent to the supplier Production confirmation
Joint definition Stack, drawings, positions, surfaces and acceptance duty Samples use controlled production materials
Access and reaction 3D envelope, approach, flange/return geometry and fixture concept All joints remain reachable with guards and handling present
Rivet and die Controlled candidate IDs and trial sections Tool identity, condition and changeover are error-proofed
Process control Required settings, signals, records, alarms and traceability Target-machine curves correlate with accepted physical joints
Throughput Production rate, handling, changeover and containment assumptions Measured good-joint output includes rejects and interruptions
Safety and service Operating modes, interventions, utilities, maintenance and risk responsibilities Selected safety functions and maintenance tasks are validated

Mobile or handheld systems can be used for large assemblies or distributed joints. Stationary systems can be used for parts that can be easily brought to a fixed load frame. Robotic systems can support repeated multi-position work and integrated records. None can be considered the “best” without the part, access, output requirements, control strategy and service capabilities.

Once those inputs are available, evaluate them along with the configurations of SIMITCH’s self-piercing riveting machines. Models, published specifications, commercial offers and quotes will be found on that solution page; this guide will remain for the preparation of the engineering tasks.

Key takeaway

Let the joint evidence write the equipment requirement, then prove that the target machine, tooling and motion profile reproduce the accepted joint and its control signals.

Frequently Asked Questions

Do self-piercing rivets require a predrilled hole?

Normally not in conventional semi-tubular SPR.
The rivet normally pierces the upper layer or layers and flares in the die-supported bottom layer. That bottom layer should retain material for the mechanical interlock. Specialized pre-hole variants exist for some difficult stacks, so the no-hole statement should not be applied to every research process carrying an SPR label. The distinction also affects the trial record: a special pre-hole route adds hole geometry, location and preparation as controlled inputs. In every case, qualify the exact stack, rivet, die, process variant and access arrangement rather than assuming the process name settles feasibility. Record the version on drawings and work instructions so a later team does not apply conventional-SPR evidence to a materially different joint.

Can SPR join aluminum to high-strength steel?

Some ordered aluminum and high-strength steel stacks can be joined, but the material pair alone is not approval; grade, thickness, order, tooling, and test evidence still control feasibility.
Grade, temper, thickness, layer order, coating, adhesive, rivet hardness and geometry, die shape and setting profile all affect formation. Lower-sheet behavior is particularly important because the rivet must flare without unacceptable cracking or breakthrough. Run controlled samples, inspect section geometry, and perform the application’s required mechanical tests before releasing the stack or choosing production equipment.

Are SPR joints as strong as spot welds?

There is no universal winner across stacks and load cases; compare SPR and spot-welded specimens under the same material, geometry, loading, corrosion, and service-life requirements.
A result changes with material stack, joint spacing, adhesive, load direction, specimen geometry, corrosion exposure and test method. Tensile shear, cross tension, peel and fatigue do not answer the same question. Compare qualified specimens or assemblies under the load cases that matter to the product. Keep process capability separate from claims about the finished joint.

What can force-displacement monitoring detect?

It can flag departure from a validated cycle signature.
It may expose changes in contact, force rise or final position. It cannot certify interlock, cracks or joint strength, so retain physical checks in the control plan.

What should I send to an SPR equipment supplier?

Send the controlled joint and process requirement, including stack order, drawings, access, production rate, traceability, and acceptance evidence, rather than only requesting a machine force.
Include drawings or 3D data, every layer’s material and thickness, stack order, coatings and adhesive, joint locations, die-side access, surface-marking limits, production rate, loading method, traceability, utilities, integration interfaces and the acceptance evidence expected from trials. Identify which samples are representative of production and how final equipment revalidation will be judged.

Prove the Joint Before You Freeze the Machine

Prove the Joint Before You Freeze the Machine — SIMITCH

A useful SPR approach is a closed engineering loop: identify the stack, map die-side access, choose candidate rivets and dies, conduct a controlled trial, build the four-layer proof, set monitoring limits, diagnose failures by mechanism and translate the result into a production requirement. Then repeat the critical proof on the target process.

This sequence keeps commercial selection in its proper place. It also makes supplier discussions more efficient because unresolved joint risks are visible before anyone commits to a model, cycle time or automation package.

Suzhou Simitch Machinery Co., Ltd. introduces its company and manufacturing focus on the About SIMITCH page. For the broader company and equipment overview, visit the SIMITCH homepage. First-party information on company experience and capability statements is provided unless verified otherwise.

Prepare the stack and joint drawing

When reviewing the application, provide the material order, joint locations, access envelope, and required evidence.

Discuss the SPR application

References & Sources

  1. Investigation into the Effect of Interlock Volume on SPR Strength, peer-reviewed article.
  2. Intelligent monitoring of self-piercing riveting based on image processing and deep learning, peer-reviewed article.
  3. Self-Pierce Riveting: Development and Assessment for Joining Polymer-Metal Hybrid Structures, peer-reviewed review.
  4. TWI: monitoring the self-piercing riveting process.
  5. ISO 12996:2013 public scope page.
  6. 29 CFR Part 1910 Subpart O.
  7. OSHA interpretation on guarding riveting machines.
  8. 2025 study comparing conventional and pre-hole SPR for GFRP/steel joints.
  9. 2026 study of punch-velocity influence in clinching and SPR.

Editorial note: The SIMITCH content team reviewed this guide against current public technical, standards-scope and regulatory sources. Qualified engineering and safety teams remain responsible for joint acceptance and machine safety in the actual application.

]]> https://simitch.com/blog/self-piercing-riveting-spr-guide/feed/ 0
